| X | 19.68" | 499.87 mm |
| Y | 22.04" | 559.82 mm |
| Z | 19.68" | 499.87 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 51 | 51 |
| Taper | BT-40 | BT-40 |
| Pallet-W | 11.81 mm | 0.465" |
| Pallet-L | 11.81 mm | 0.465" |
| # Axis | 4 | 4 |
| Control | CNC | CNC |
| Weight | 551 | 551 |
Specifications (subject to buyer verification):
X-Axis Travel: 19.68"
Y-Axis Travel: 22.04"
Z-Axis Travel: 19.68"
Spindle Speed: 15,000 RPM
Spindle Taper: BT-40
Spindle Motor Power: 20 HP
Automatic Tool Changer (ATC): 51 Tools
Pallet Size: 11.81"×11.81"
Maximum Workpiece Diameter: 20.86"
Maximum Workpiece Height: 29.92"
Maximum Pallet Load: 551 lbs
Rapid Traverse (X/Y/Z): 2,362 IPM
Equipped With (subject to buyer verification):

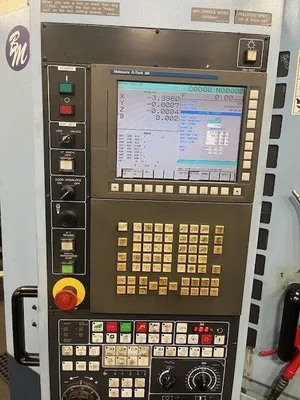

G-Tech30i controller

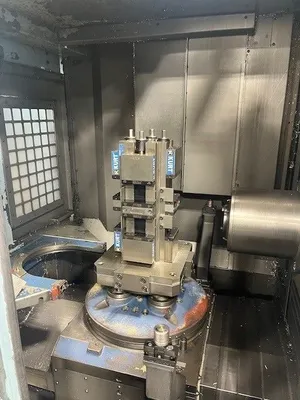

Matsuura 4th axis rotary table
Rotary wiper (air supply system)
Automatic grease supply unit
TURBO micro-scraper 500 chip conveyor
