160 Ton Dake Model EM-160, 47" Btw Uprights, 15.75" Ram Travel
| Tonnage | 160 T | 145.15 t |
| Stroke | 15.75" | 400.05 mm |
| Daylight | 35" | 889 mm |
| Bed (L-R) | 61" | 1,549.4 mm |
| Up or Downstroke? | Downstroke | Downstroke |
| IPM Pressing | 19 in/min. | 48.3 cm/min. |
| Dimensions | 87"x47"x102" | 87"x47"x102" |
| Weight | 3,310 | 3,310 |

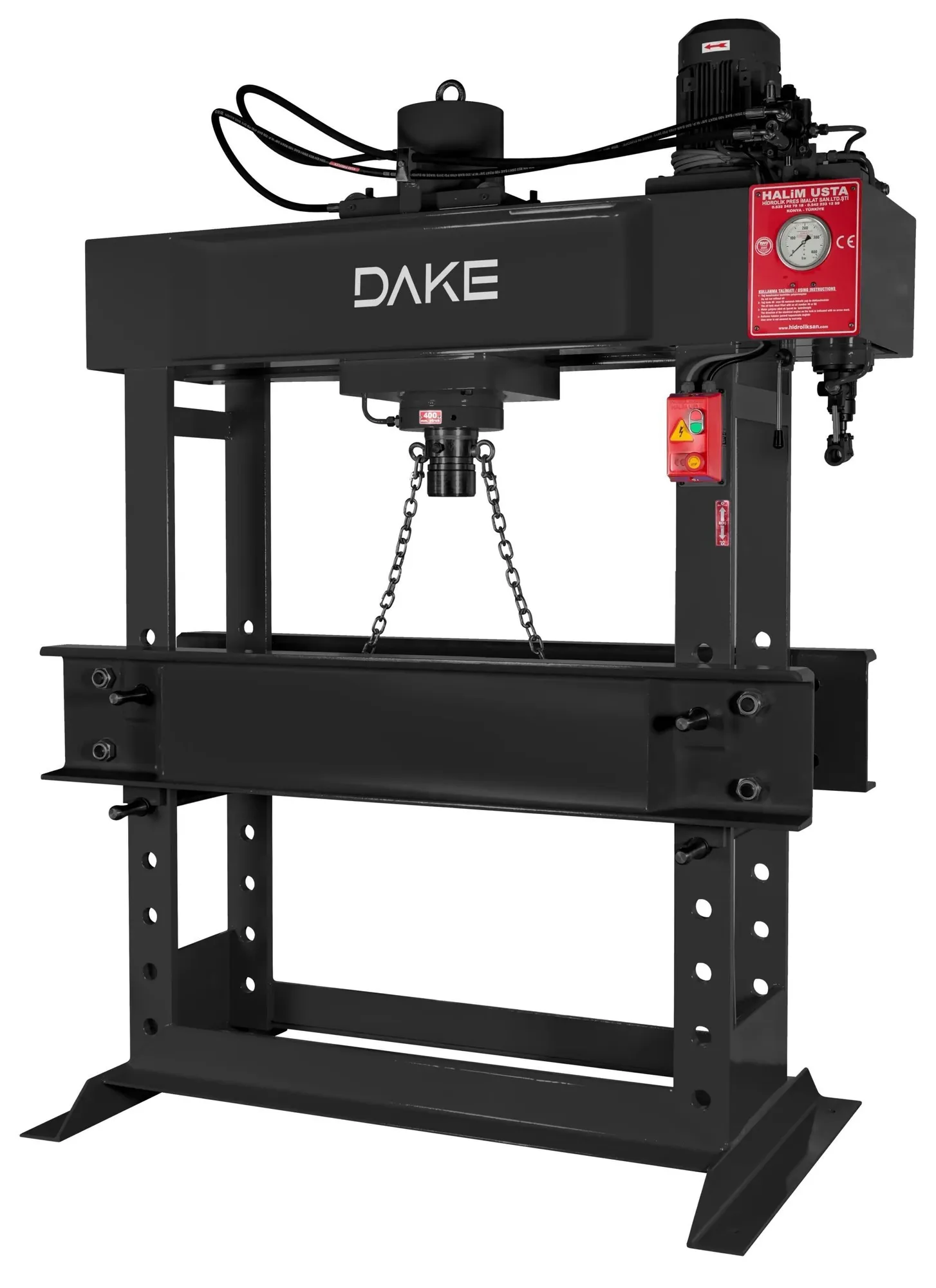

New 160 Ton Dake EM-160 Shop Press
Motor & Hand Operated
Model Number: EM-160
Capacity: 160 Tons
Filter Type: Pollution Filter
Motor: 7.5 HP 225V/3ph/60 HZ
Width Between Uprights: 61"
Ram To Table: 0 - 35"
Ram Travel: 15.75"
Pressing Speed: 19"/minute
Min. Operating Pressure: 580 PSI
Max. Operating Pressure: 5801 PSI
Hydraulic Pump (Gal): 4 Gallons
Oil Capacity (Gal): 34 Gallons
Features:
Capacity: 160 Tons
Traversing Head
Manual & Electric Operation
Ram Travel: 400 mm
