USED 2000 A&B PROCESSING 3,000 GALLON

Used A&B Process Systems 3,000 Gallon Stainless Steel Mix Tank

Approx. 100" diameter × 110" straight side
Vertical agitator with approx. 40" paddle impeller

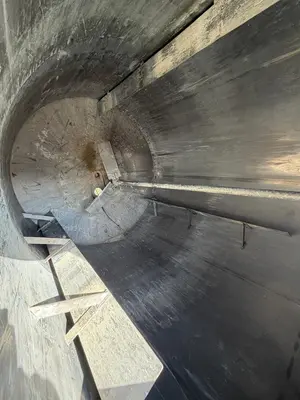

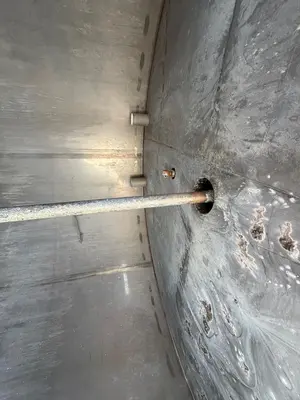

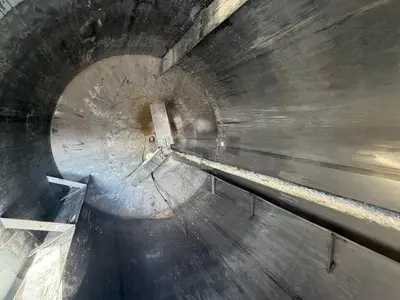

(3) internal side baffles
Top-mounted drive with Chemineer gearbox

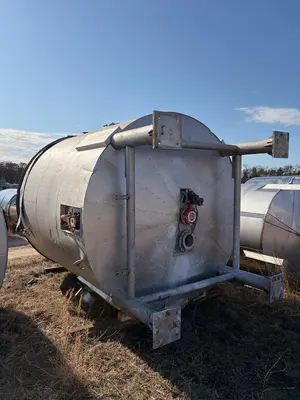

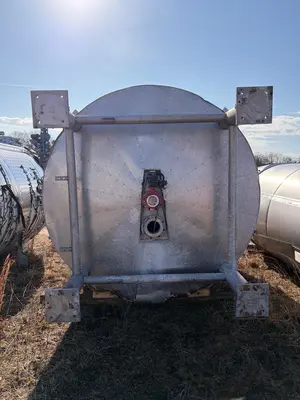

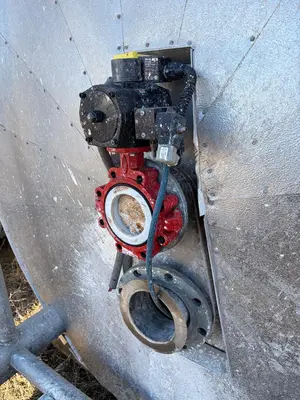

Flat top, cone bottom with central outlet
Previously used as a storage/mix tank

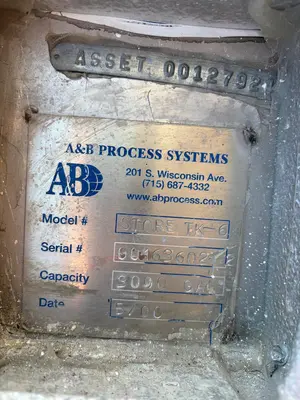

Tank Nameplate details:
Manufacturer: A&B Process Systems
Model: Store TK-6
Serial Number: 00163602-2
Capacity: 3,000 gallons
Year: 05/2000
Material: Reportedly AISI 316L stainless steel

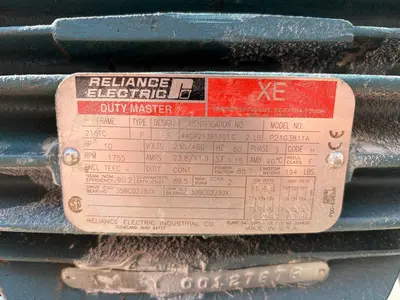

Agitator drive:
Motor: Reliance Electric Duty Master XE
Power: 10 HP
Voltage: 230/460 V, 3 Phase, 60 Hz
Speed: 1755 RPM
Frame: 215TC
Enclosure: TEFC
Service Factor: 1.15

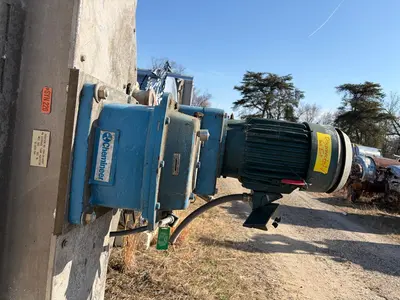

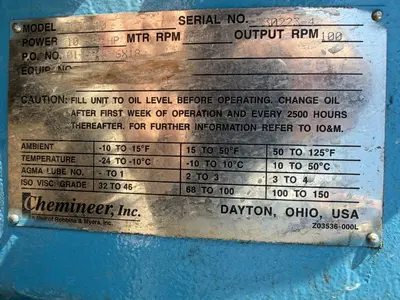

Gear reducer:
Manufacturer: Chemineer, Inc.
Model: 3GTD-10
Input speed: 1800 RPM
Output speed: 100 RPM
