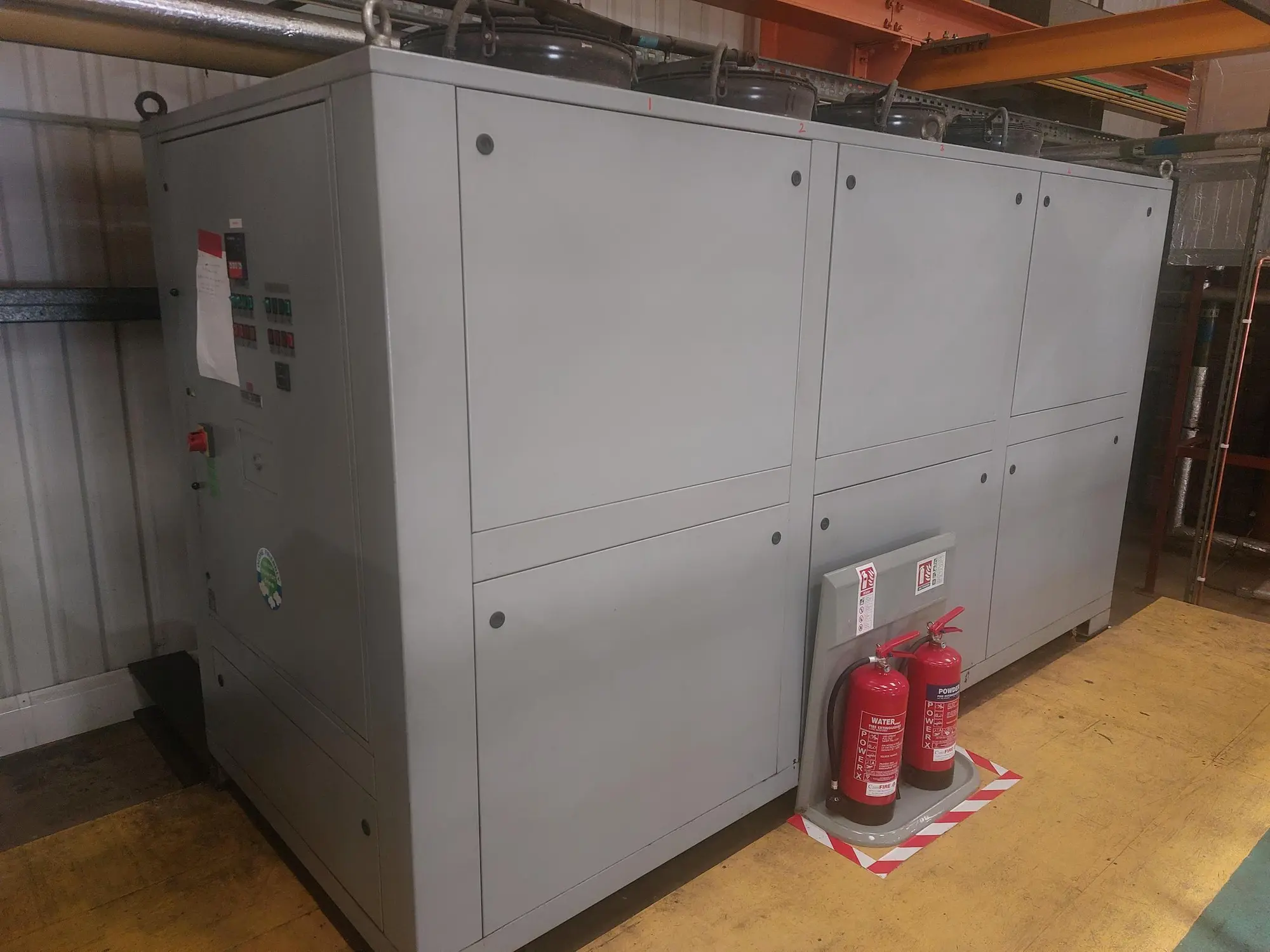

USED TOOL-TEMP TT-216000

-Cooling capcity: Nominal 216kW

-Temperature Range: Circulating Water +10 degC up to +40 degC
Air temperature +2 degC up to 45 degC

-Contents water tank: 600 litres

-Temperature control: self-optimising microprocessor controller with digital display of set ad actual temperatures

-Pump Capacity: Exteneral circuit at 200l/min 5 bar. At 400l/min at 3.5 bar. Internal circuit approx 500l/min

-Compressor: Hermitically sealed

-Air volume: 4x8'000 m3/h (escape at WK)

-Power consumption: approx 66hW

-Connections: TO/FROM mould 2"female thread, auto. water refill 3/8" female thread, Drain 1"female thread

-Cooling water IN/OUT 2"female thread (only at WK)

-Dimension: L3'350 x W1'300 x H 2'090 mm incl castors
-Noise level: (in 3 m ) 70 dBA
-Weight: 2'040 kg empty
-Colour: Silver grey RAL 7001
