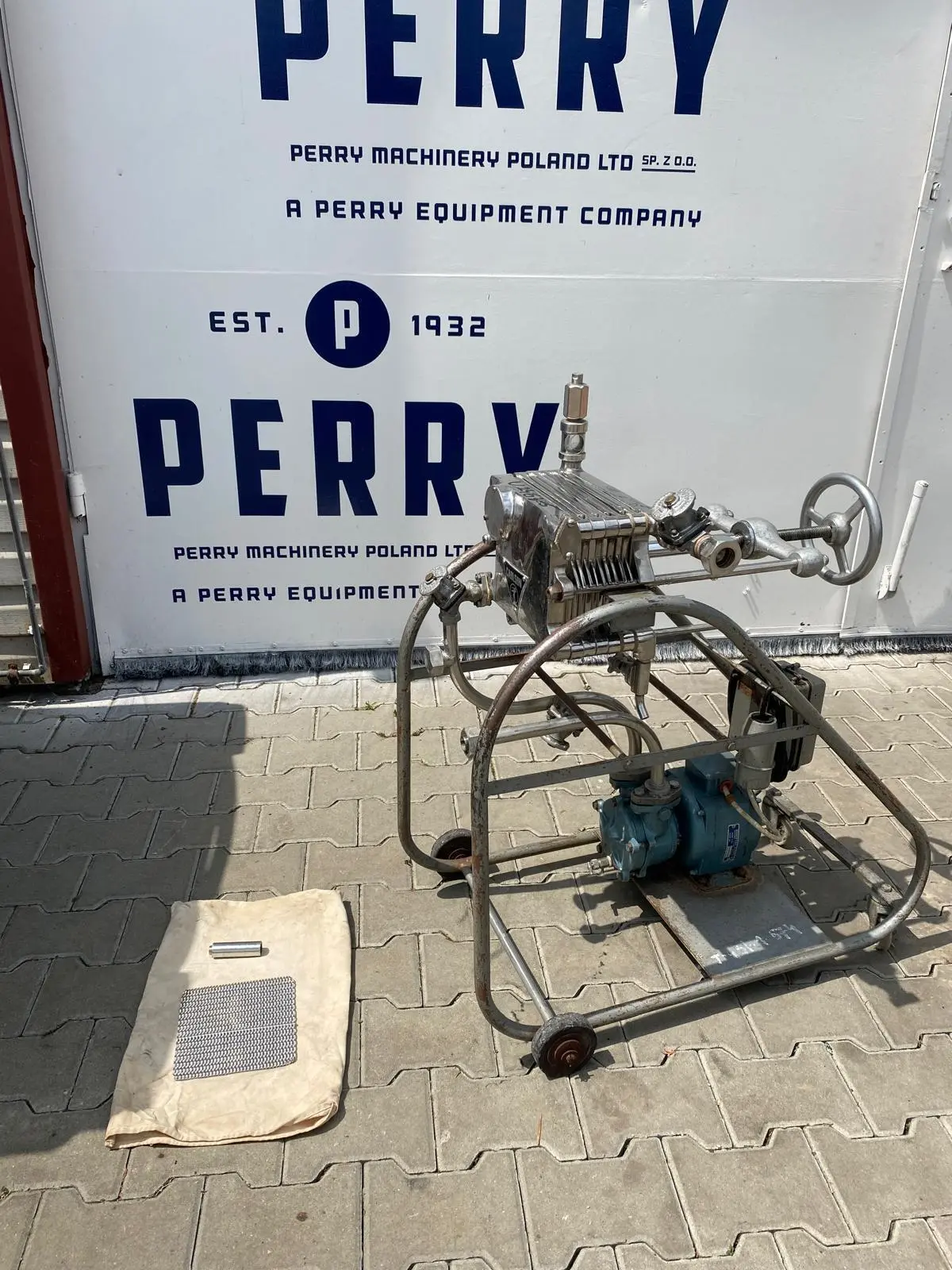

Used stainless steel filter press by CARLSON (England) with feeding pump. Press is equipped with 9 stainless steel clarification plates measuring total dimensions 192 mm x 192 mm x 9 mm thickness and working dimensions 180 mm x 180 mm and 2 end plates. Filtration surface is 0.32 m2. Unit has a feeding pump manufactured by Beresford Pumps type B30A0 driven directly by an electric motor with a power of 0,186 kW, 220/380 V, 1425 rpm, 50 Hz. The equipment includes valves, manual closer and spare parts. The whole thing is mounted on a mobile frame made of mild steel.
Material Used For: Stainless steel
Plate Size: 192 mm x 192 mm
Plate Thickness: 9 mm
Surface Area: 0,32 m2
Chambers: 5
