OVERVIEW

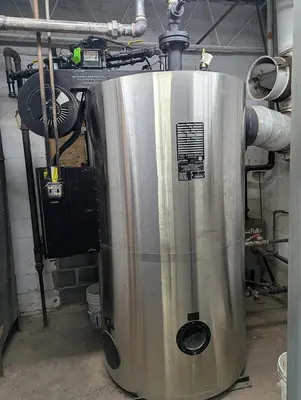

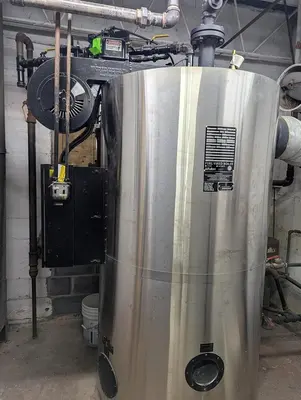

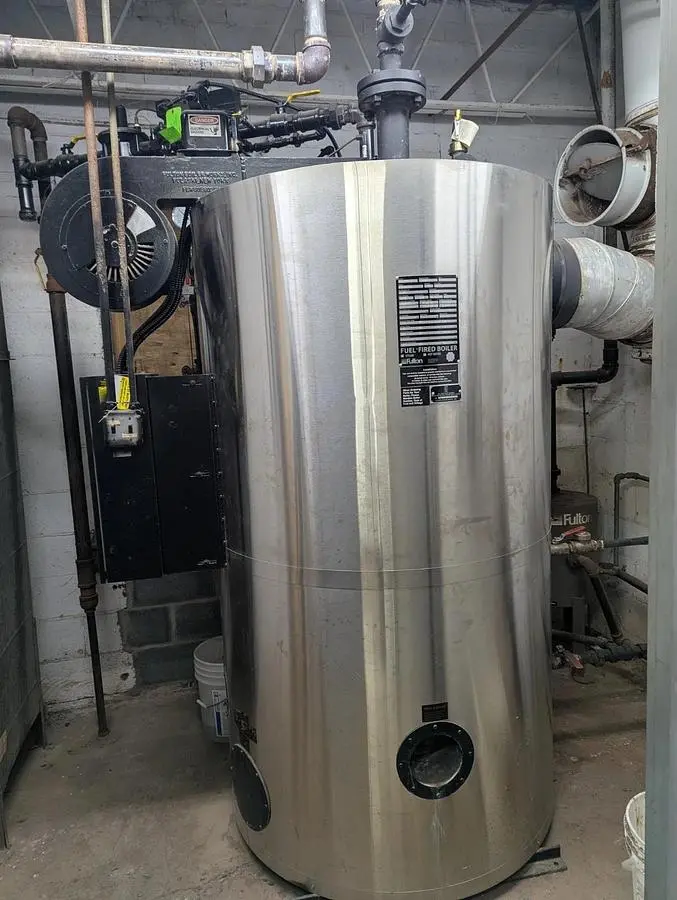

Fulton Classic Vertical Tubeless Steam Boiler - Model FB-030-A, Boiler Number PV-103-II, National Board Number 12657, Year Built 2021. Professional-grade natural gas-fired vertical tubeless steam boiler featuring 1,005,000 BTU/HR output capacity with 1085 lbs/hr steam generation at 150 PSI maximum allowable working pressure and 90 square feet heating surface. Complete packaged system includes Fulton digital burner control system, 5 7/8" head thickness, 5 7/8" shell thickness, and stainless steel construction. Built to ASME standards with UL-listed gas-fired boiler assembly (Model 83812014) featuring integral primary safety controls. Maximum BTU input at altitude 1,210,000 BTU. Gas supply pressure range: 7" WG minimum to 9.8" WG maximum. Manifold gas pressure range: 3.3" WC maximum. Complete with 120V electrical systems for boiler, controls, burner motor, and water pump. Ideal for commercial buildings, light industrial facilities, institutional applications, or any operation requiring compact, efficient steam generation with modern digital controls and vertical space-saving design.
EQUIPMENT SPECIFICATIONS

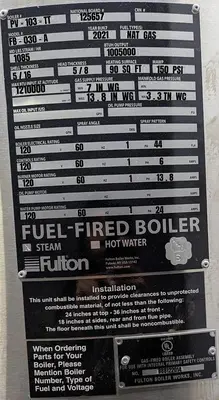

Boiler Model Information:
Manufacturer: Fulton Boiler Works, Inc.
Location: Pulaski, NY USA 13142
Product Line: Classic Vertical Tubeless Boiler
Model Number: FB-030-A
Boiler Number: PV-103-II
National Board No: 12657
Year Built: 2021
Configuration: Vertical tubeless steam boiler
Type: Natural gas-fired
Construction: Stainless steel
Performance Ratings:
BTU Output: 1,005,000 BTU/HR
Maximum BTU Input at Altitude: 1,210,000 BTU
Steam Capacity: 1085 lbs/hr
Heating Surface: 90 sq. ft.
Maximum Allowable Working Pressure: 150 PSI
Shell Thickness: 5 7/8"
Head Thickness: 5 7/8"
Fuel Type: Natural Gas
Gas Supply Specifications:
Gas Supply Pressure Min: 7" WG (Water Gauge)
Gas Supply Pressure Max: 9.8" WG
Manifold Gas Pressure Min: (Per nameplate)
Manifold Gas Pressure Max: 3.3" WC (Water Column)
Electrical Specifications:
Boiler Electrical Rating: 120V, 60 Hz, 1-Phase, 44 Amps, FLA
Controls Rating: 120V, 60 Hz, 1-Phase, 6 Amps
Burner Motor Rating: 120V, 60 Hz, 1-Phase, 13.8 Amps
Water Pump Motor Rating: 120V, 60 Hz, 1-Phase, 24 Amps

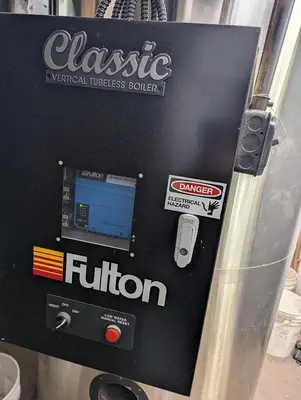

Control Systems:
Burner Control: Fulton digital control system
Control Panel: Integrated touchscreen interface
Night/Day Switch: Manual operation selector
Low Water Manual Reset: Safety interlock
Safety Systems: UL-listed gas-fired assembly
Primary Safety Controls: Integral design
UL Listed Components:
Gas-Fired Boiler Assembly: UL Listed
Model Number: 83812014
Controls: For use with integral primary safety controls
Manufacturer: Fulton Boiler Works, Inc.
KEY FEATURES & BENEFITS
Fulton Quality Manufacturing:
Premium USA boiler manufacturer
2021 manufacture year
Pulaski, New York facility
Classic series design
National Board certified
Heavy-duty commercial construction
Professional installation quality
Stainless steel construction
High-Efficiency Performance:
1,005,000 BTU/HR output
1085 lbs/hr steam generation
90 sq. ft. heating surface
150 PSI maximum working pressure
Natural gas fuel efficiency
Compact vertical design
Space-saving footprint
Continuous duty rated
Vertical Tubeless Design:
Vertical orientation saves floor space
Tubeless construction simplifies maintenance
No tube bundle to clean or replace
Reduced maintenance requirements
Improved water circulation
Faster steam generation
Better thermal efficiency
Longer service life
Advanced Digital Controls:
Fulton digital burner control system
Touchscreen interface
Real-time monitoring
Diagnostic capabilities
Night/Day operation selector
Low water protection with manual reset
Temperature and pressure monitoring
User-friendly operation
Heavy-Duty Construction:
5 7/8" shell thickness
5 7/8" head thickness
Stainless steel construction
Corrosion-resistant materials
Robust design
Long service life
Minimal maintenance
Industrial-grade quality
Safety & Compliance:
150 PSI ASME design pressure
National Board certified (12657)
UL-listed gas-fired assembly
Integral primary safety controls
Low water cutoff with manual reset
Multiple safety interlocks
Code-compliant installation
Professional engineering
SYSTEM COMPONENTS
Main Boiler:
Fulton Model FB-030-A
Boiler Number PV-103-II
National Board No: 12657
Year 2021 manufacture
Vertical tubeless design
1,005,000 BTU/HR capacity
90 sq. ft. heating surface
150 PSI MAWP
Stainless steel construction
Complete with all trim

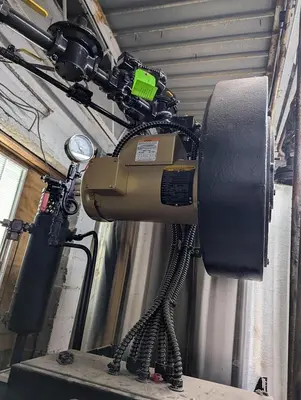

Burner System:
Natural gas burner
1,210,000 BTU maximum input
Power burner design
Forced draft combustion
Modulating control capability
Gas train components
Safety shut-off valves
Flame safeguard system
Control Systems:
Fulton digital control panel
Touchscreen HMI interface
Burner management system
Flame safeguard controls
Operational diagnostics
Temperature controls
Pressure monitoring
Safety interlocks
Electrical Components:
120V power supply
Burner motor (13.8 Amps)
Water pump motor (24 Amps)
Control systems (6 Amps)
Total load: 44 Amps FLA
Single-phase 60 Hz
All wiring and connections
Disconnect provisions
Safety & Instrumentation:
Low water cutoff with manual reset
Pressure relief valve
Pressure gauge
Temperature sensors
Water level controls
Gas pressure switches
Flame supervision
Emergency shutdown capability
Water System:
Feedwater pump (120V, 24A)
Water level controls
Feedwater valves
Piping connections
Blowdown valve
Drain connections
Level indication
Low water protection
Gas System:
Gas pressure regulator
Manual gas valve
Safety shut-off valves
Gas pressure switches
Inlet connection
Manifold pressure monitoring
Safety interlocks
UL-listed components
SPECIFICATIONS SUMMARY
Boiler:
Manufacturer: Fulton Boiler Works, Inc.
Location: Pulaski, NY USA
Model: FB-030-A
Boiler No: PV-103-II
National Board: 12657
Year: 2021
Type: Vertical tubeless steam boiler
Fuel: Natural Gas
Output: 1,005,000 BTU/HR
Max Input: 1,210,000 BTU
Steam: 1085 lbs/hr
Heating Surface: 90 sq. ft.
Max Pressure: 150 PSI
Shell: 5 7/8" thickness
Head: 5 7/8" thickness
Origin: USA
Construction: Stainless steel
Gas Supply:
Supply Pressure Min: 7" WG
Supply Pressure Max: 9.8" WG
Manifold Pressure Max: 3.3" WC
Fuel Type: Natural Gas
Electrical:
Boiler: 120V, 60 Hz, 1-Ph, 44A FLA
Controls: 120V, 60 Hz, 1-Ph, 6A
Burner Motor: 120V, 60 Hz, 1-Ph, 13.8A
Water Pump: 120V, 60 Hz, 1-Ph, 24A
Controls:
Burner Management: Fulton digital
Interface: Touchscreen
Safety Controls: UL-listed integral
UL Model: 83812014
Physical:
Configuration: Vertical
Design: Tubeless
Construction: Stainless steel
Mounting: Floor-mounted
Insulation: Factory insulated
Finish: Stainless steel exterior
ADDITIONAL INFORMATION
Condition: Used - 2021 Manufacture, Excellent Condition
Manufacturer: Fulton Boiler Works, Inc.
Product Line: Classic Vertical Tubeless Boiler
Model: FB-030-A
Boiler Number: PV-103-II
National Board Number: 12657
Year Built: 2021
Fuel Type: Natural Gas
BTU Output: 1,005,000 BTU/HR
Maximum BTU Input at Altitude: 1,210,000 BTU
Steam Generation: 1085 lbs/hr
Heating Surface: 90 square feet
Maximum Allowable Working Pressure: 150 PSI
Shell Thickness: 5 7/8 inches
Head Thickness: 5 7/8 inches
Gas Supply Pressure: 7" WG minimum to 9.8" WG maximum
Manifold Gas Pressure: 3.3" WC maximum
Electrical Requirements:
Boiler: 120V, 60 Hz, 1-Phase, 44 Amps FLA
Controls: 120V, 60 Hz, 1-Phase, 6 Amps
Burner Motor: 120V, 60 Hz, 1-Phase, 13.8 Amps
Water Pump Motor: 120V, 60 Hz, 1-Phase, 24 Amps
Control System: Fulton digital burner control with touchscreen interface
UL Listed Components:
Gas-Fired Boiler Assembly
Model Number: 83812014
For use with integral primary safety controls
Safety Features:
Low water cutoff with manual reset
Night/Day operation selector
Integral primary safety controls
UL-listed gas-fired assembly
Multiple safety interlocks
Emergency shutdown capability
Pressure relief protection
Installation Requirements:
24 inches clearance at top
36 inches clearance at front
18 inches clearance at sides, rear and from flue pipe
Floor beneath unit shall be noncombustible
Features:
Vertical tubeless steam boiler design
2021 year of manufacture - nearly new condition
Stainless steel construction for corrosion resistance
Heavy-duty 5 7/8" shell and head thickness
Compact vertical design saves valuable floor space
Tubeless construction eliminates tube maintenance
Fulton digital control system with touchscreen
Natural gas-fired for efficient operation
1,005,000 BTU/HR output capacity
1085 lbs/hr steam generation
90 square feet heating surface
150 PSI maximum working pressure
National Board certified (12657)
UL-listed gas-fired assembly with integral safety controls
Low water cutoff protection with manual reset
Night/Day operation selector
Complete electrical package included
All safety trim and controls installed
Ready for natural gas connection and startup
Professional-grade commercial/industrial construction
* Manufacturer: Fulton Boiler Works, Inc.
* Product Line: Classic Vertical Tubeless Boiler
* Model Number: FB-030-A
* Boiler Number: PV-103-II
* National Board No: 12657
* Year Built: 2021
* Type: Natural gas-fired
