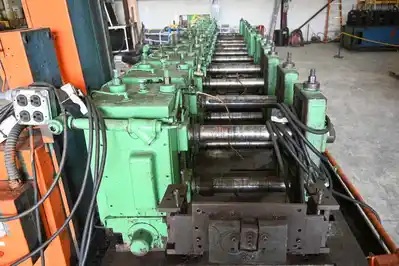

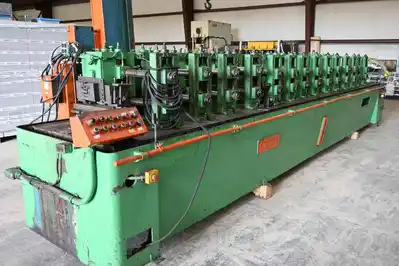

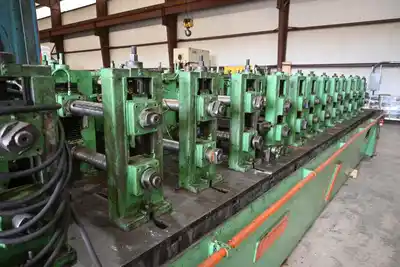

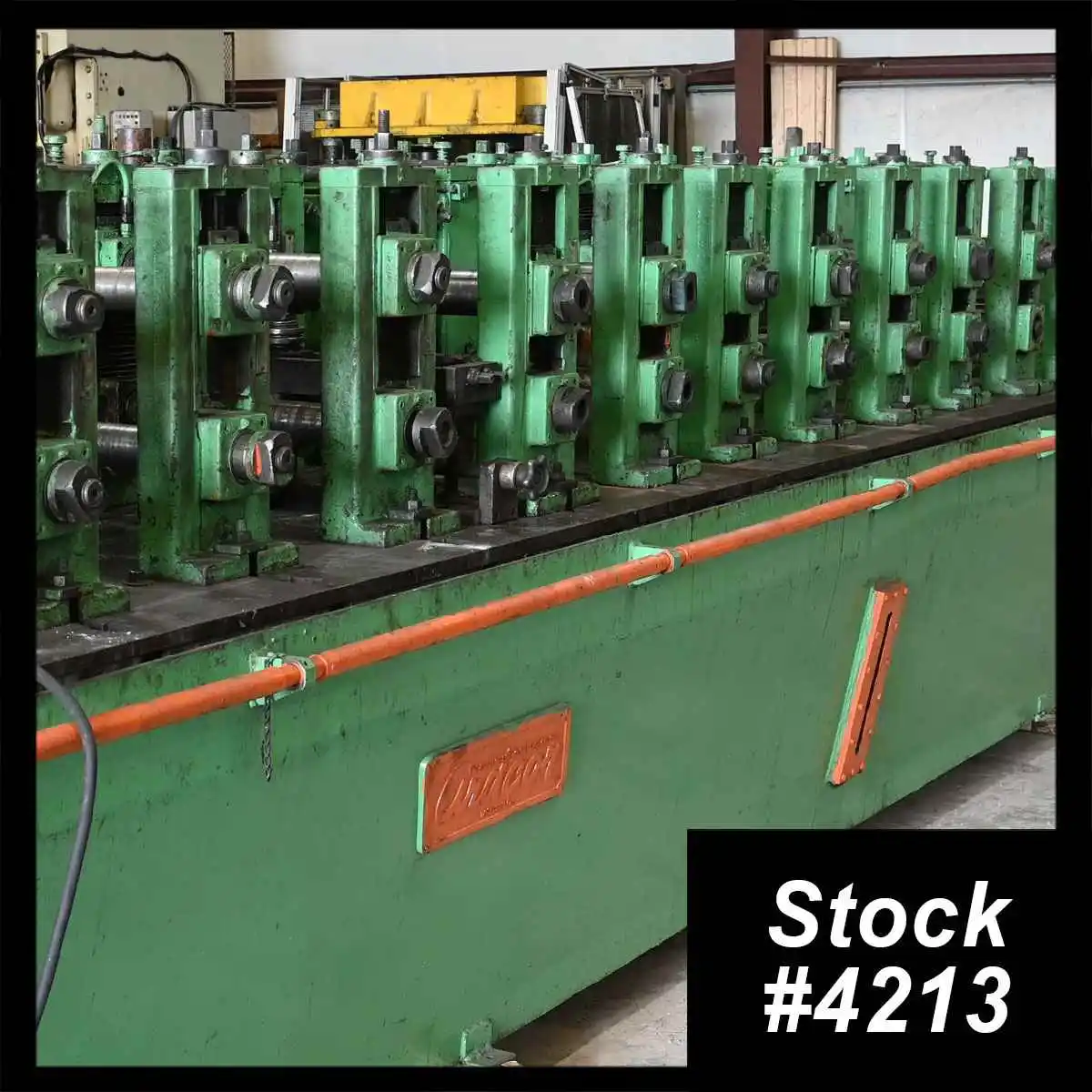

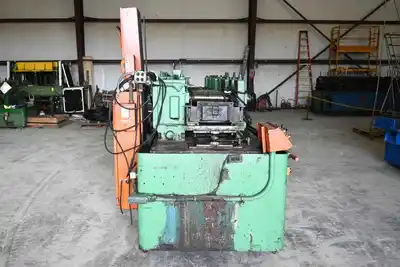

USED ARDCOR F15-2-1/2-15
Overview
Specs
SPECIFICATIONS:
Number of Passes: 14
Line Direction: Right to Left
Spindle Diameter: 2-1/2″
Roll Space: 15″
Horizontal Centers: 16″
Vertical Adjustment: 5″ – 9″
Base Top to Center Lower Spindle: 6-1/2″
Spindle Key Size: 5/8″ x 5/16″
Gearing: Equal, 14:1 Ratio
EQUIPPED WITH:
50 HP AC Motor – 220/460V, 3 Ph, 60 Hz, 1200 RPM
Push Button Controls
E-Stop
Electrical Cabinet
NOTES: Missing one spindle
OVERALL DIMENSIONS: 23′ x 5′ 4″ x 7′
APPROXIMATE WEIGHT:
LOCATION: Universal Warehouse, Perrysburg, Ohio
Equipped With
EQUIPPED WITH: 50 HP AC Motor – 220/460V, 3 Ph, 60 Hz, 1200 RPM Push Button Controls E-Stop Electrical Cabinet
