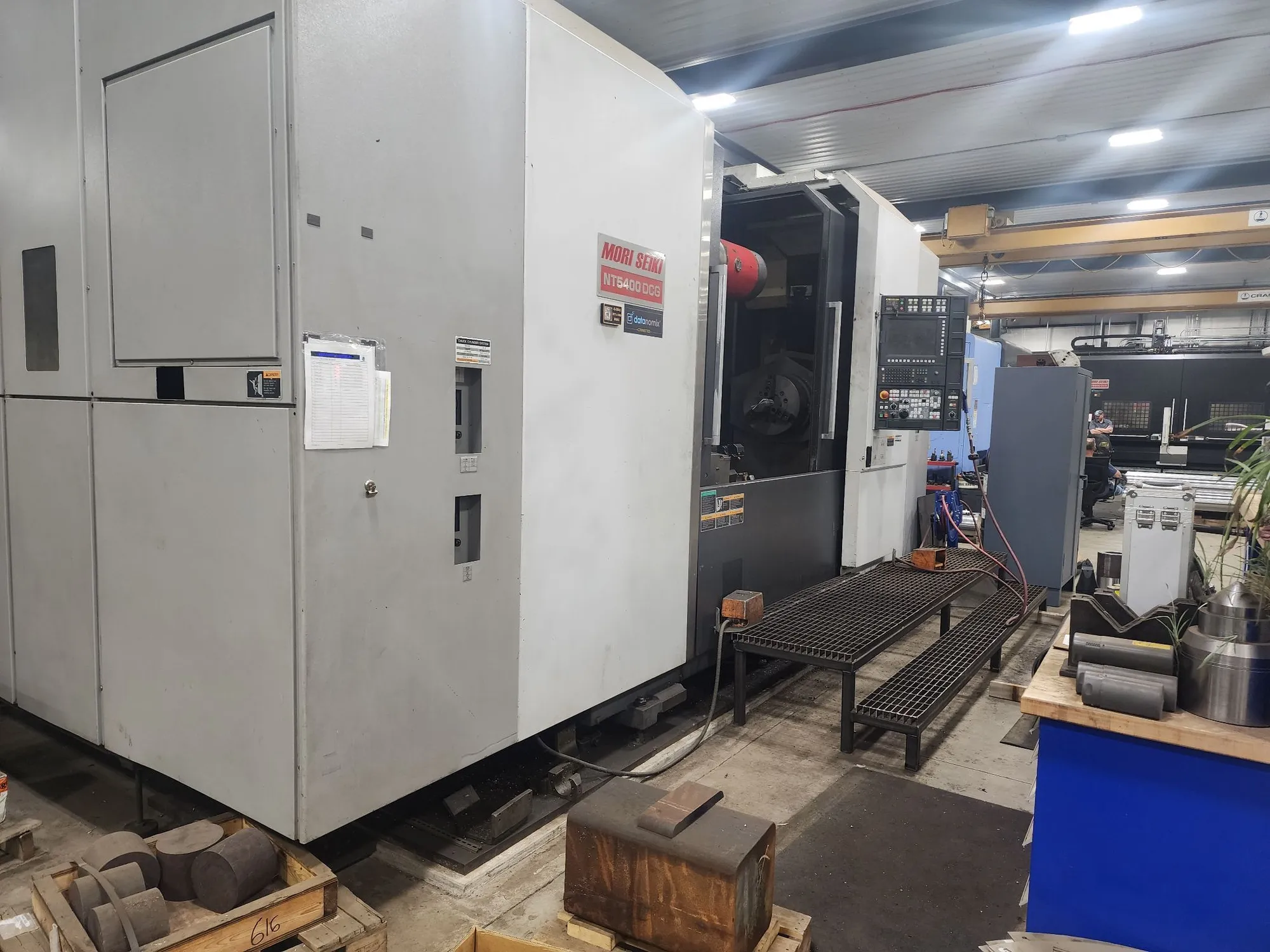

USED 2006 MORI SEIKI NT-5400 DCG-1800SZ
Overview
Description
2006 Mori Seiki NT5400/1800SZ with MAPPS Programming, 80 Station ATC, Lower Turret with Milling, Cooljet HP Coolant, Renishaw OMP60 Probe, Filtermist, and More.
Specifications
| Year | 2006 | 2006 |
|---|---|---|
| # Axis | 9 | 9 |
| Swing | 36.2" | 919.48 mm |
| Machining Length | 75.6" | 1,920.2 mm |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 36.2" | 919.48 mm |
| Tailstock | No | No |
| Control | CNC | CNC |
| Weight | 83,000 LBS | 83,000 LBS |
Max. Swing...................36.2"
Max. Machining Length........75.6"
Max. Turning Diameter........36.2"
X-Axis Travel................40.9"
Y-Axis Travel................10"
Z-Axis Travel................76.4"
C-Axis Indexing..............0.001°
Main Spindle Chuck Size......15"
Main Spindle Motor...........50 HP
Spindle Nose.................A2-11
Spindle Bore.................4.5"
Bar Capacity.................4"
Main Spindle Speed...........2,400 RPM
Lower Turret Stations........10
Live Tooling.................Yes
Turret Travel X..............10.5"
Turret Travel Z..............72"
Sub-Spindle Motor............60 HP
Sub Spindle Speed............2,400 RPM
Sub Spindle Chuck............15"
Milling Spindle Motor........40 HP
Spindle Taper................Capto C8
Live Milling Speed...........13,000 RPM
Number of Tools..............80 ATC
Machine Weight...............83,000 LBS
Equipped With
MAPPS Programming
80 Station Tool Changer
Lower Turret with Milling
CoolJet High Pressure Coolant
Renishaw OMP60 Probe
Filtermist FX-1200 Mist Collector Unit
Chip Conveyor
HOURS:
Power On Time................78,519
Operation Time Spindle 1.....2,510
Operation Time Spindle 2.....1,940
Milling Spindle Operation....37,552
Cutting Time.................50,280
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
