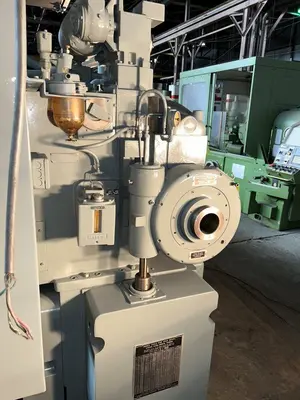

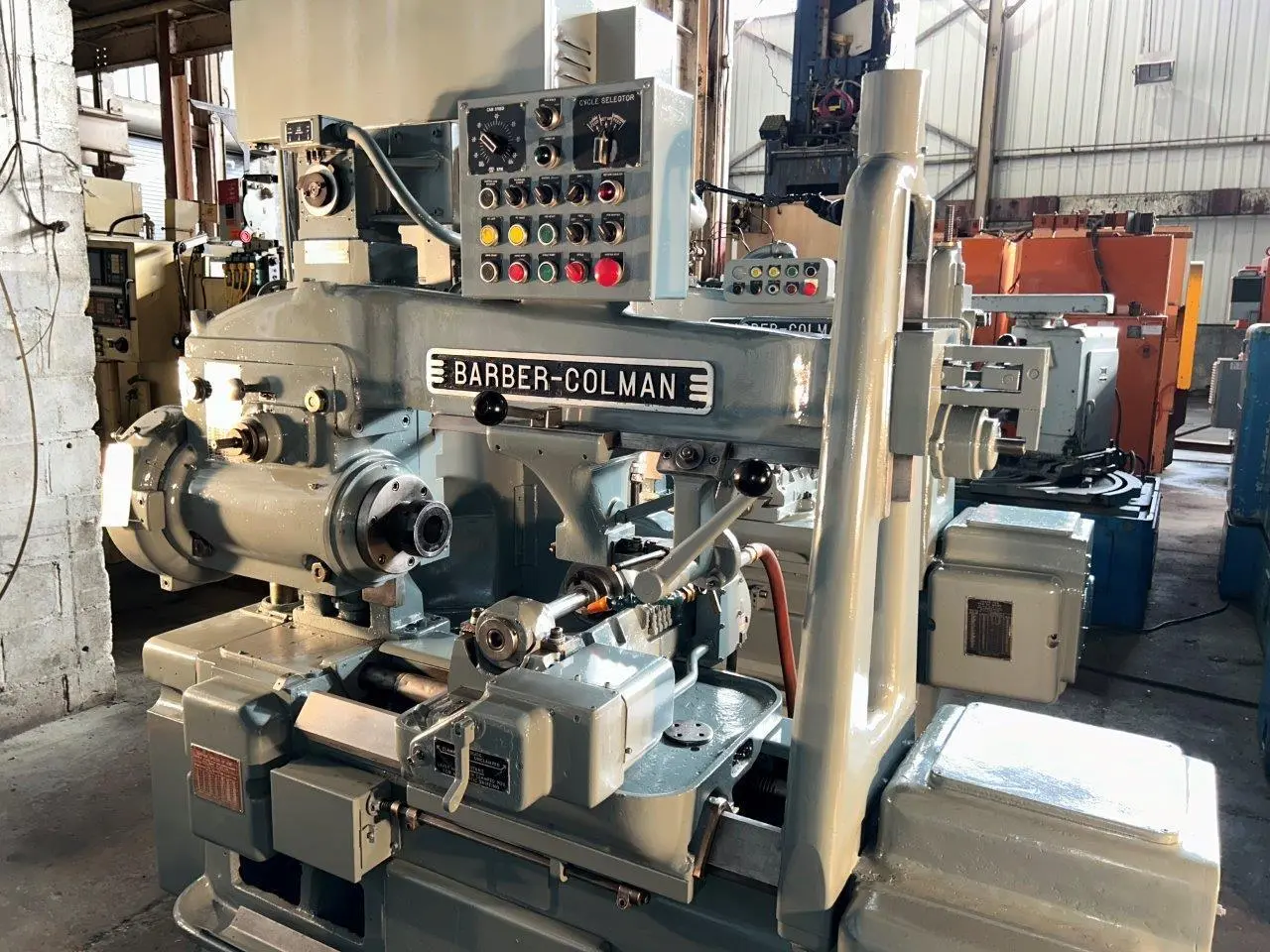

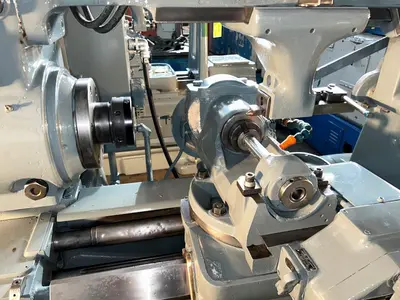

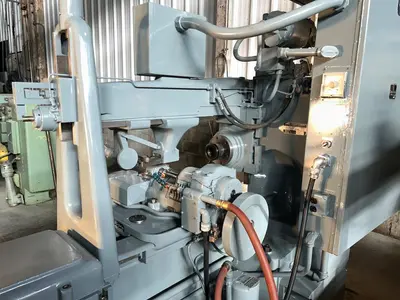

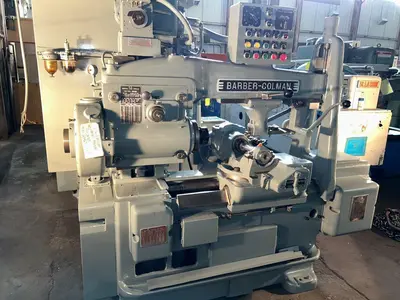

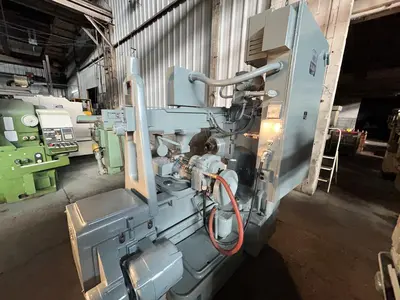

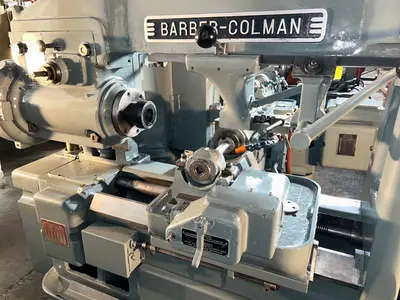

BARBER COLMAN 16-16 Horizontal Gear Hobber. Features 16" max workpiece diameter, 6 DP, 16" axial travel, and various cycles. Comes with 1.25" arbor, tailstock, coolant, and more.
| Horz/Vert | Horz | Horz |
| Maximum Workpiece Diameter | 16" | 406.4 mm |
| Maximum Diametral Pitch | 6 dp | 6 dp |
| Module | 4 | 4 |
| Axial Travel | 16" | 406.4 mm |
| Maximum Hob Diameter | 5" | 127 mm |
| Hob Arbor Size | 1.25" | 31.75 mm |
| Hob Speed | 425 RPM | 425 RPM |
| Work Spindle Bore | 3.25" | 82.55 mm |
| Control Manufacturer | Conventional | Conventional |
| Weight | 8400 | 8400 |
1.25" Hob Arbor
Auto Hob Shift
3.25" Spindle Bore
Tailstock W/Center (Flat)
Auto Cycle
Plunge Cycle
Conventional Cycle
Coolant
Bijur Lube
Change Gears
