72" Wide Danieli Wean Push Pull Pickle Line With Meco Temper Mill (Used)
Overview
This 72" wide Danieli Wean Push Pull Pickle Line comes equipped with a Meco Temper Mill, offering robust performance for processing mild steel with yield strength up to 80,000 PSI. It accommodates entry coil widths from 24" to 74" and gauges between .060" to .500". The line is designed for coils with outer diameters between 42" to 80" and inner diameters from 24" to 32". The temper mill possesses a capacity of 400 HP, with speeds ranging from 300 to 1050 RPM.
The line speed reaches 300 FPM for gauges up to .250" and 150 FPM above that threshold. It operates in a right-to-left direction with a single entry reel featuring a stub arbor type and mandrel diameter ranging from 22.75" to 27.50". Each side of the entry reel is powered by a 75 HP motor, with operating speeds of 500/2000 RPM. Key components include a 172' pickling section, a 60' rinse section, and a Meco 80" wide x 38" diameter, 2-high mill. Additional equipment includes a slitter, side trimmer, tension roll device, various carryover tables, Butech shear, scrap removal system, strip dryers, brush scrubbing rolls, turret-type recoiler, and coil cars.
This line is comprehensive yet excludes an entry coil car, pit type. It also highlights never-used polypropylene tanks for both the pickling and rinse sections, offering enhanced durability and efficiency. This substantial setup is ideal for industries needing reliable and versatile pickling and tempering solutions.
Stub Arbor Payoff Reel, 75 HP Each Side

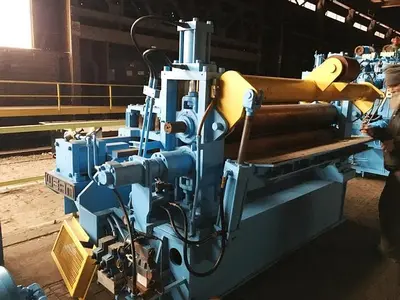

2 Over 3 Roll Entry Flattener And Pinch Roll

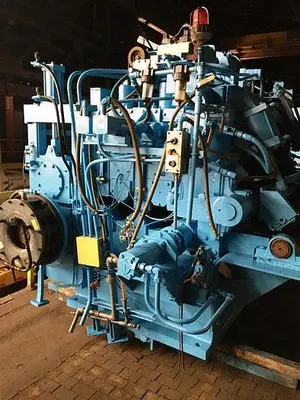

Meco Temper Mill, 80" Wide x 38" Diameter, 2-High Mill, 400 HP, 300/1050 RPM
172' Pickling Section, Never Used Polypropylene Tanks Available
60' Rinse Section, Never Used Polypropylene Tanks Available
Slitter / Side Trimmer
Tension Roll Device
Various Carryover Tables
Butech Shear
Scrap Removal System
Strip Dryers
Brush Scrubbing Rolls
Turret-Type Recoiler
Wrapper Roll / Belt Wrapper Unit
Coil Cars
Turnstile
Not Available:
Entry Coil Car, Pit Type
Specs
Yield Strength: 80,000 PSI
Entry Coil Width: 24" - 74"
Entry Coil Gauge: .060" - .500"
Entry Coil O.D.: 42" - 80"
Entry Coil I.D.: 24" - 32"
Exit Coil Gauge Maximum: .500" @ 48" Wide
Exit Coil O.D.: 42" - 80"
Exit Coil I.D. Maximum: 24"
Line Direction: Right To Left
Number Of Entry Reels: 1
Entry Reel Type: Stub Arbor
Entry Reel Mandrel Diameter: 22.75" - 27.50"
Entry Reel Motor: 75 HP Per Side
Entry Reel Motor Speed: 500/2000 RPM
Entry Pinch Roll Diameter: 14"
Entry Pinch Roll Face: 75"
