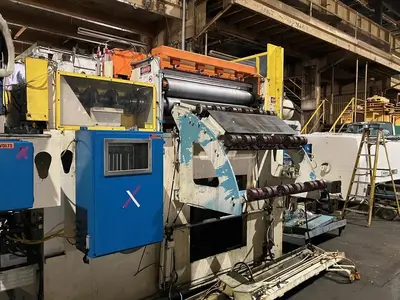

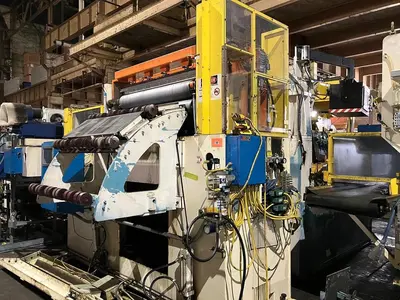

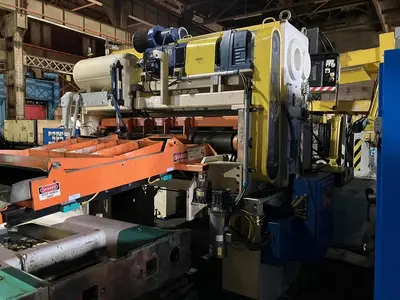

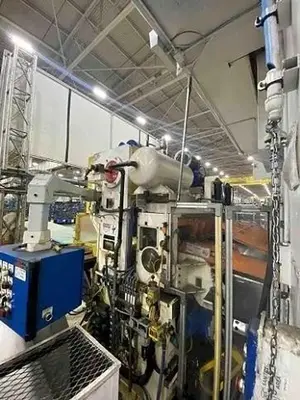

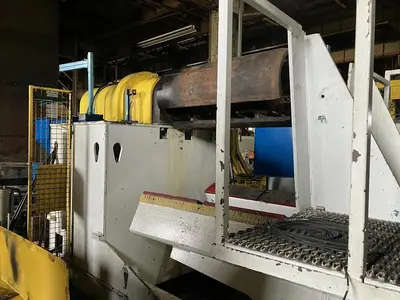

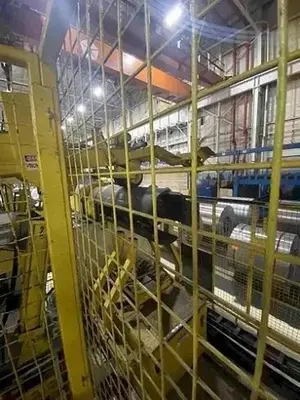

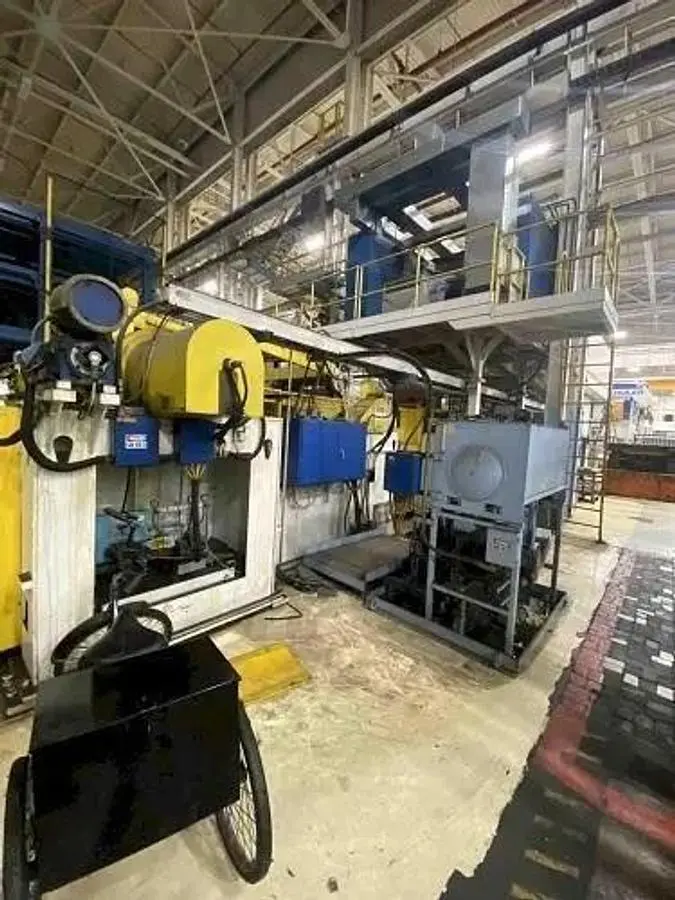

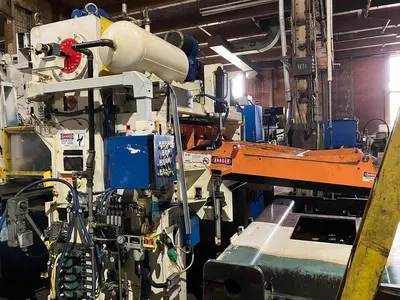

USED 2000 AUTOMATIC FEED COMPANY 504872

Specifications:
Manufacturer: Automatic Feed
Coil Weight Capacity: 50,000 Lbs
Max Width Capacity: 48”
Coil OD: 72”
Min Width Capacity: 10”
Max Thickness at 48”: 0.125”
Thickness at 24”: 0.177”
Min Thickness at 48”: 0.020”
Feeding Length: 2”–36”
Press Speed: 60 SPM
Feed Rate: 100 FPM
Feeding Angle: Adjustable
Line Direction: Right to Left
Controls: Unico Drive System, A/B PLC, IBM, Wonderware Operator I/F
Material: CRS, HD Galvanized, Electro Galvanized
Line Includes:

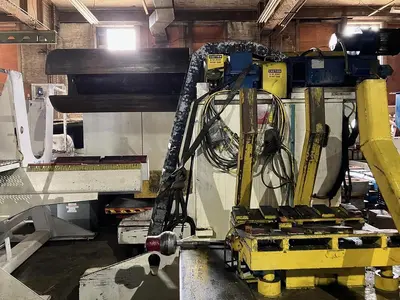

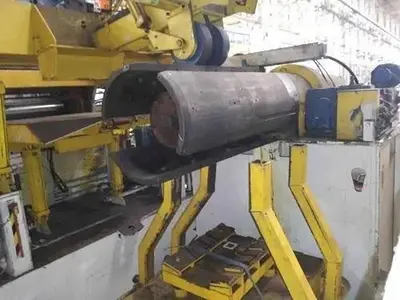

Reel Uncoiler and Coil Car
Peeler / Hold Down
Peeler Table
Straightener Exit Pinch Roll / Crop Shear
Scrap Tub

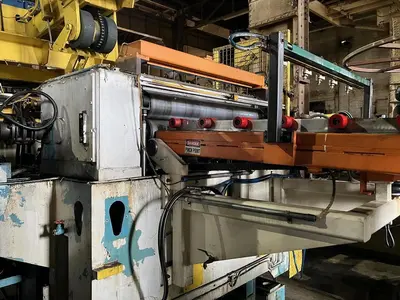

Straightener: (7) Straightening Rolls, (3) Upper Rolls, (4) Lower Rolls
Thread Tables
Servo Feeder
