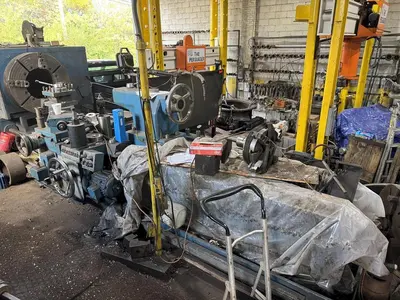

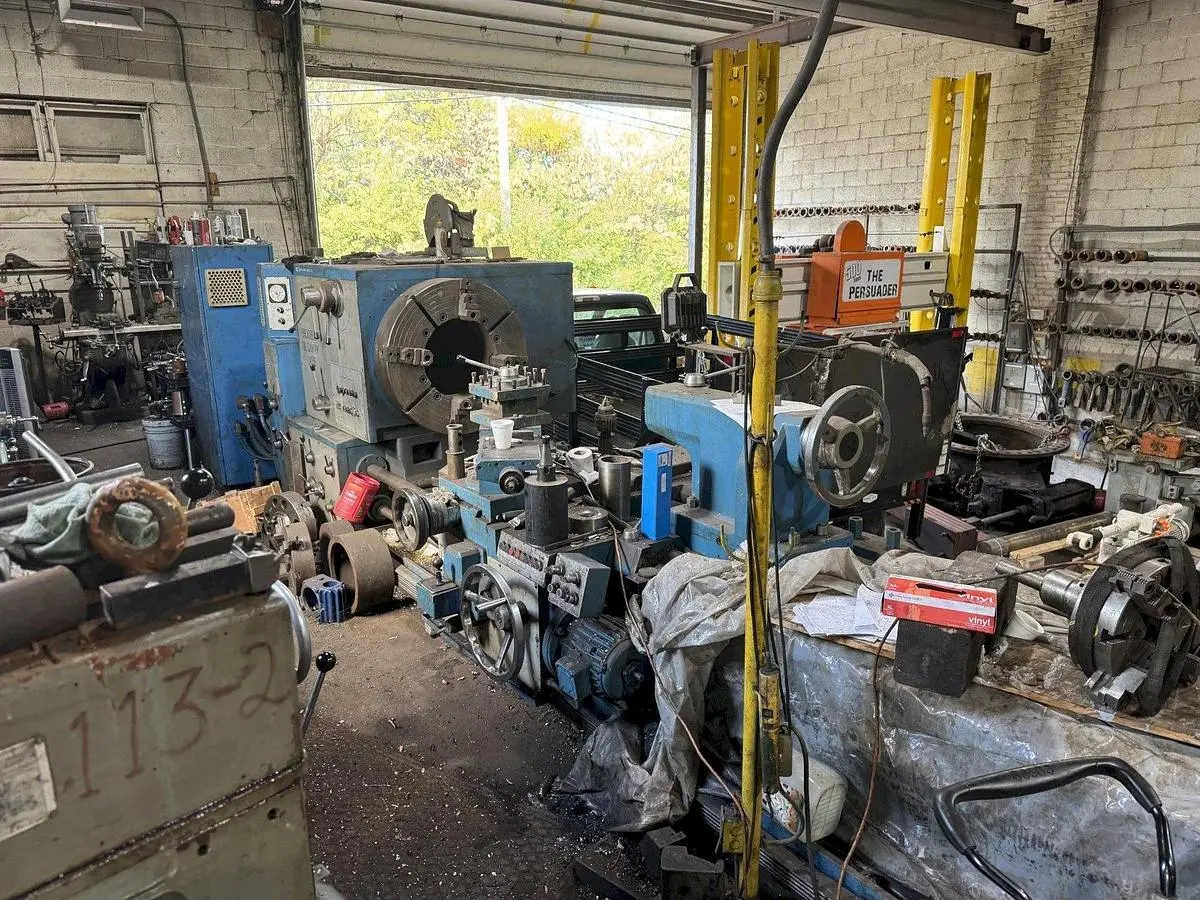

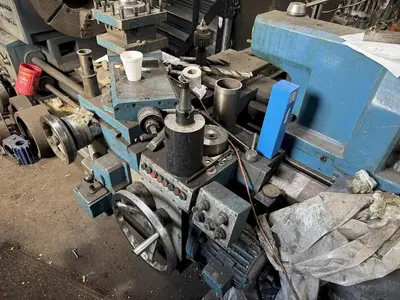

36” x 120” Broadbent Hollow Spindle Engine Lathe

The 36” x 120” Broadbent Hollow Spindle Engine Lathe is a robust and versatile piece of industrial equipment designed for precision machining. It offers a swing over the bed of 40 inches, a swing over the gap of 58 inches, and a swing over the cross slide of 24 inches, making it capable of handling large and complex workpieces. The distance between centers spans 120 inches, providing ample space for long projects. A notable feature is the 16-inch spindle through-hole, allowing the lathe to accommodate substantial material sizes.
With spindle speeds ranging from 4 to 350 RPM and feed rates adjustable between 0.0008 to 0.0647 inches (or 0.040 to 1.618 mm), this lathe delivers both precision and flexibility. Its overall dimensions are 15 feet in length, 84 inches in width, and 69 inches in height, making it a significant addition to any manufacturing or machining facility.
The equipment includes a 31-inch 4-jaw chuck, a taper attachment, and a 4-way power compound. Notably, it features a 30-inch rear-mounted chuck also with a 16-inch through-hole, enhancing its versatility for various applications. This used but reliable machine promises both durability and efficiency, perfect for those in need of high-capacity machining capabilities.
31" 4-Jaw Chuck
Taper Attachment
4-Way Power Compound
30" Rear-Mounted Chuck With 16" Through Hole
