DESCRIPTION

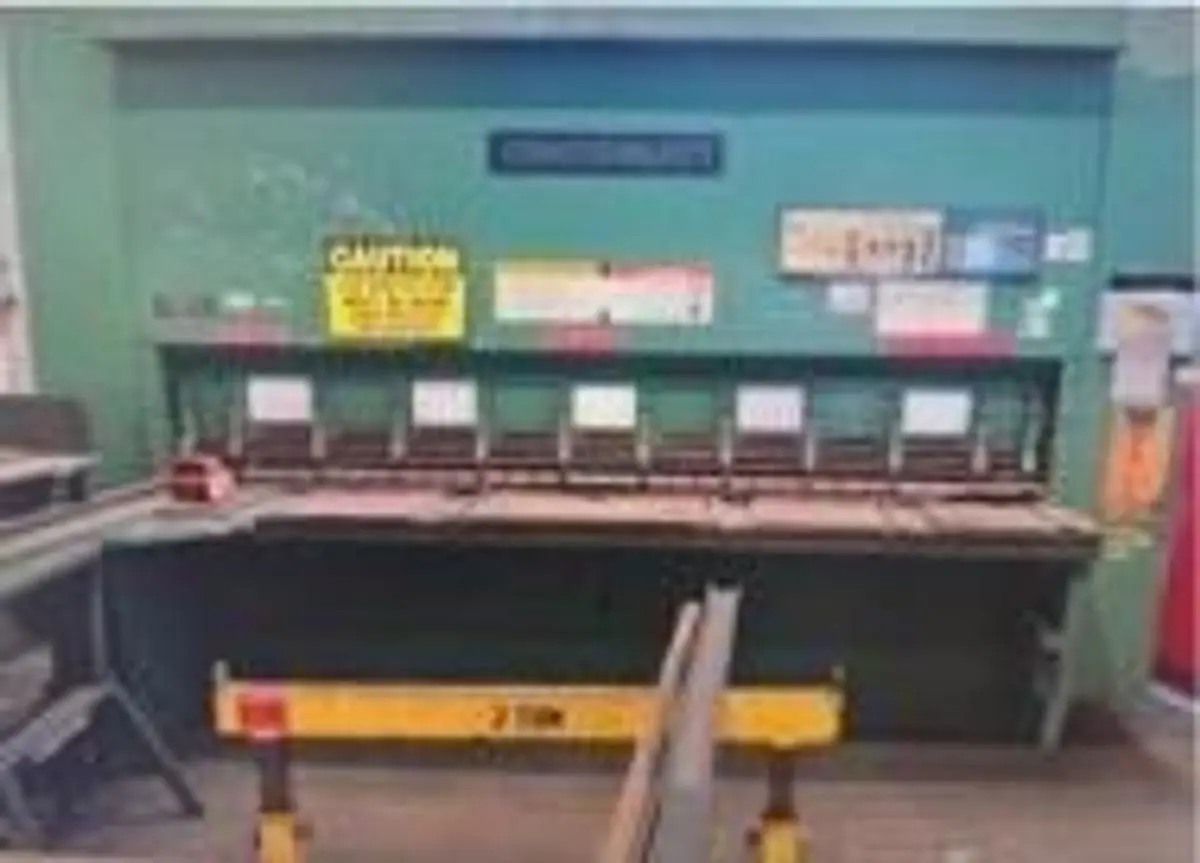

-¾” X 12’ Hydraulic Power Squaring Shear with Digital Readout
-12’ L Table w/ Ball Rollers
-10’ 7” L Squaring Arm
-4’ Front Operated Backgauge
-Stroke Counter
-Adjustable Auto Hydraulic Rake / Taper and Electric Trip Pedal
SPECIFICATIONS
-Length: 12’
-Capacity: ¾”
-Table with Ball Rollers: 12’L
-Squaring Arm: 10’ 7” L
-Support Arm: 2’ 7” L
-Front Operated Backgauge: 4’
-Overall Dimensions: 19’ L X 8’ 4” W X 9’ 3” H
-Estimated Weight: 40,000 Lbs
-Electric Foot Pedal: 20 HP / 460V / 3Ph
INCLUDES
-Digital Readout
-12’ L Table w/ Ball Rollers
-10’ 7” L Squaring Arm
-4’ Front Operated Backgauge
-Stroke Counter
-Adjustable Auto Hydraulic Rake / Taper and Electric Trip Pedal
