Specifications:
Manufacturer: Signode
Rotation Speed: 12 RPM
Loads Per Hour: 35 approx.
Average Cycle Time: 30 seconds
Minimum Wrap Height: 2” (51 mm)
Maximum Wrap Height: 84” (2135 mm)
Maximum Load OD: 84”
Film Delivery Type: Sensor Stretch, Powered Pre-Stretch
Maximum Roll Width: 20” (500 mm)
Film Roll Diameter: 10” (250 mm)
Core Size: 3” (76 mm)
Overall Size (L x W x H): 57” x 56” x 128” (1460 mm x 1435 mm x 3265 mm)

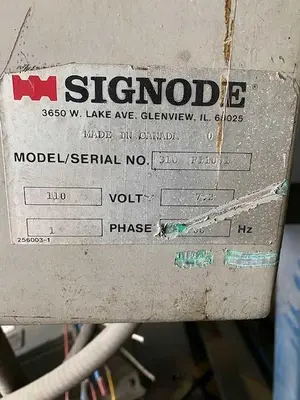

Operating Voltage: 110 V, 1 phase
Floor Conveyor:
2 sections of floor conveyor, 90” roll face x 90” long, 40,000 lbs capacity
Shipping Weight: 3,000 lbs approx.
