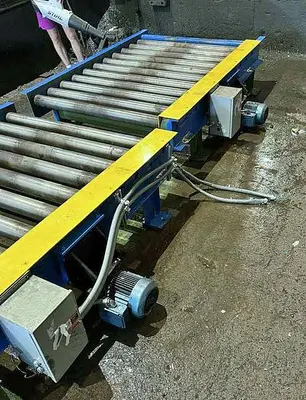

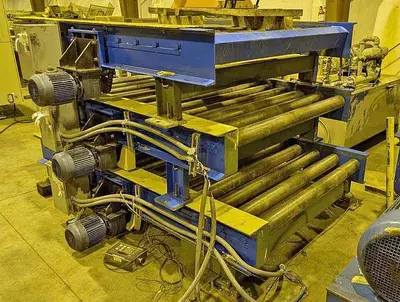

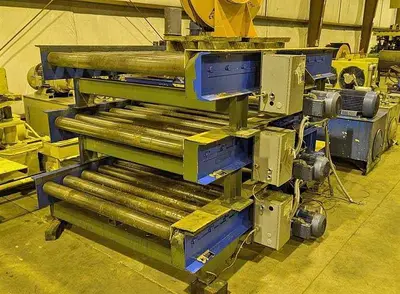

Braner Conveyor, Banding Line 20,000 Lb

This Braner Banding Line Conveyor has a robust weight capacity of 20,000 lbs, suitable for demanding industrial applications. It comprises two 7-foot storage conveyor sections, each featuring a 4" roll diameter and a 52" roll face. The storage sections include a 1.50" hex shaft and are positioned with a pass line height of approximately 18 inches, powered by an AC motor.
Additionally, the system includes an 8-foot scale conveyor with similar roll specifications and a matching pass line height. The scale conveyor is equipped with a Fairbanks digital readout, although it is missing two load cells. Like the storage sections, the scale conveyor is AC motor powered and can handle a 20,000 lbs load capacity. Overall, this banding line conveyor offers a reliable and efficient solution for heavy-duty banding needs.

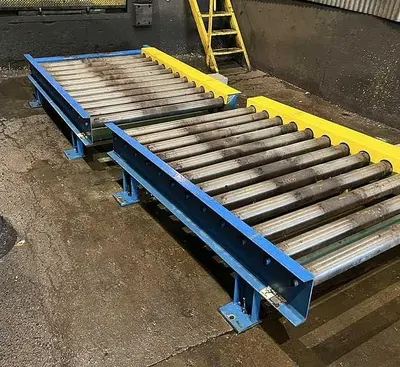

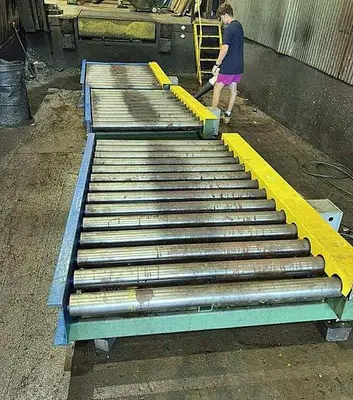

(2) Storage Conveyor Sections
Storage Conveyor Length: 7' Each
Storage Conveyor Roll Diameter: 4"
Storage Conveyor Roll Face: 52"
Storage Conveyor Shaft Diameter: 1.50" Hex
Storage Conveyor Pass Line Height: Approximately 18"
Storage Conveyor Drive: AC Motor Powered

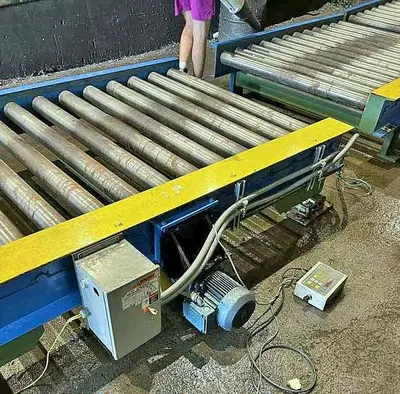

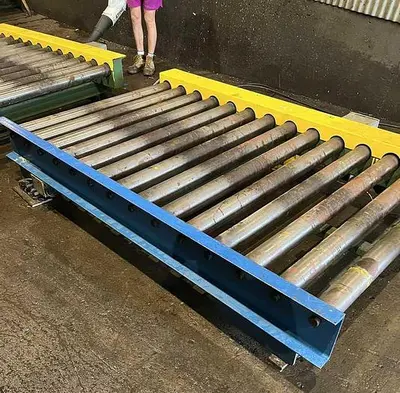

(1) Scale Conveyor
Scale Conveyor Length: 8'
Scale Conveyor Roll Diameter: 4"
Scale Conveyor Roll Face: 52"
Scale Conveyor Pass Line Height: Approximately 18"

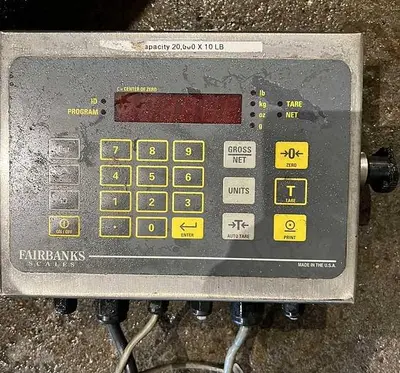

Scale Conveyor Readout: Fairbanks Digital
Scale Conveyor Weight Capacity: 20,000 Lbs.
Scale Conveyor Load Cells: (2) Missing
Scale Conveyor Drive: AC Motor Powered
