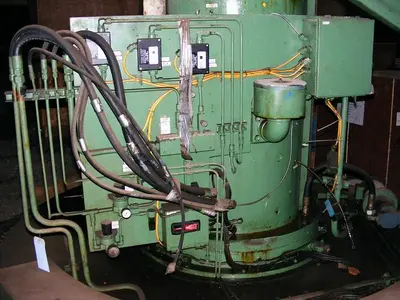

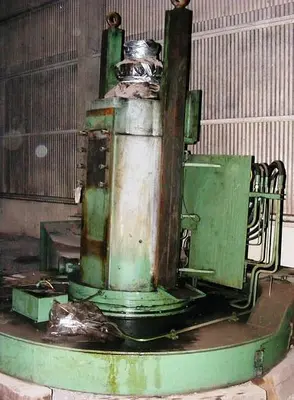

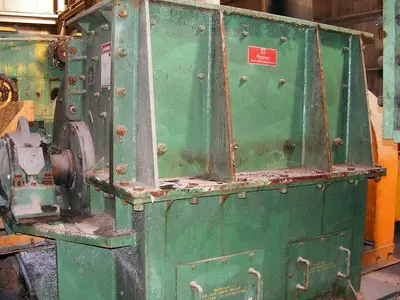

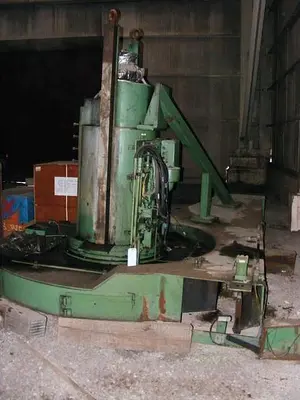

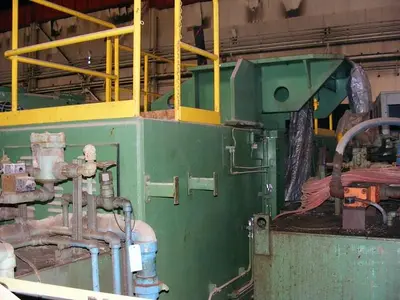

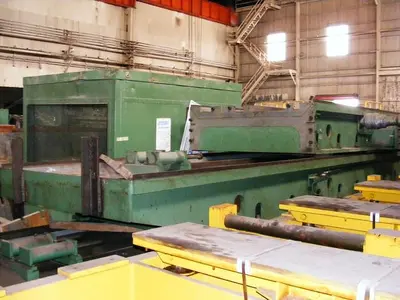

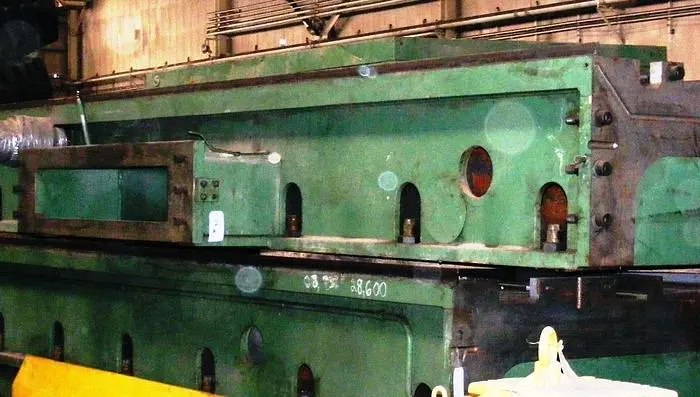

86.6" (2200 MM) WIDE INGERSOLL ALUMINUM INGOT/SLAB SCALPER

GENERAL SPECIFICATIONS:
TABLE TRAVEL: 437" (11.1 M)
VERTICAL HEAD TRAVEL: 15" (384 MM)
SPINDLE MOTOR: 1000 HP, 600 RPM
DEPTH OF CUT: 0.6" NOMINAL (15 MM)
1.75" MAXIMUM (45 MM)
CUTTER DIAMETER: 100" (2540 MM)

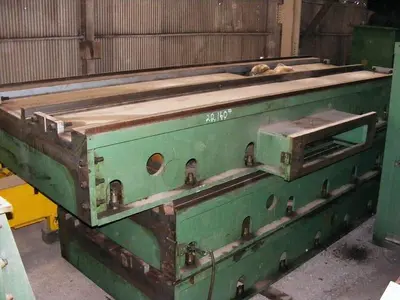

INFEED TABLE:
LENGTH: 256" (6.5 M)
FEED RATE: 125 FPM (38 MPM)
ROLLERS: HOUR GLASS DESIGN
INGOT SIZE:
LENGTH: 105" TO 256" (2.66 TO 6.5 M)
WIDTH: 31" TO 86.6" (800 MM TO 2200 MM)
THICK: 14" T0 24" (350 MM TO 650 MM)
WEIGHT: 35,000 LBS (17 MT)
FEED RATE:
X-AXIS: 0.16 -6.6 IPS (4.16 MM TO 6.6 MPS)
Y-AXIS: 25 IPS (633 MPS)

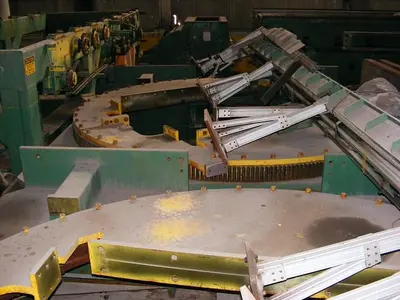

BARREL TURNOVER:
INGOT SIZE: 256" MAXIMUM LENGTH (6.5 M)
PREVIOUS USE: ALUMINUM SLAB SCALPER
FEATURES: DESIGNED FOR FUTURE SIDE CUTTER
