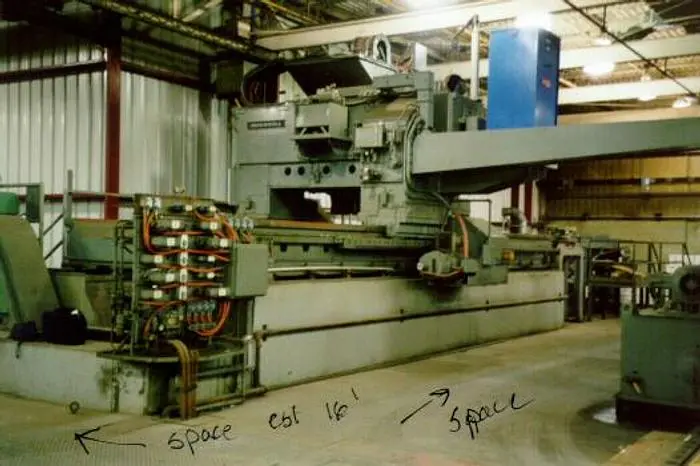

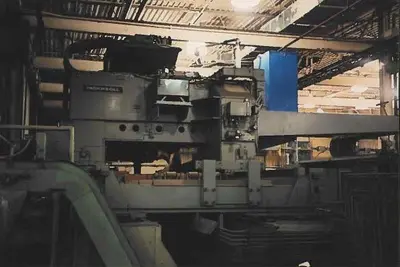

52" (1320 MM) WIDE INGERSOLL INGOT/SLAB SCALPER

GENERAL SPECIFICATIONS:
TYPE: SCALPING MACHINE WITH END CROP SAW
MATERIAL: BERYLLIUM COPPER (10 AND 25 ALLOY)
CAPACITY: 2" TO 8" THICK (50 MM TO 200 MM)
26" TO 52" WIDE. (660 MM TO 1320 MM)
18' LONG SLABS (5.5M)
3,000 TO 10,000 LBS
HARDNESS: 80 RB TO 30 RC
FEED SYSTEM: X-AXIS 10/300" PER MINUTE (244"TRAVEL)
Y-AXIS 5/20" PER MINUTE (68.5" TRAVEL)
Z-AXIS 100" PER MINUTE (14" TRAVEL)
CAPACITY:
20 MILLION POUNDS A YEAR OR
15" OF MATERIAL REMOVAL OVER A (4 MM)
36" WIDE X 18' LONG SLAB (915 MM X 5485 MM)
SURFACE FINISH: 125 RMS MINIMUM AND WITH +/- .015" TOLERANCE (0.38 MM)

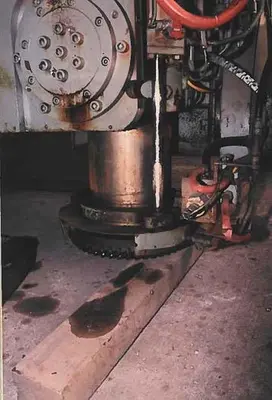

CUTTING TOOLS USED MILLING: 18" DIA. WITH 32 INSERTS (460 MM)
CROPPING: 30" DIA (760 MM)
SPINDLE DRIVE: 75HP AC MOTOR
365 TDS FRAME
1800 RPM
460 VOLTS AC, 3 PHASE 6O HERTZ
FEATURES: ELECTRICAL CONTROLS
COOLANT SYSTEM
HYDRAULIC SYSTEM
CHIP CONVEYOR
