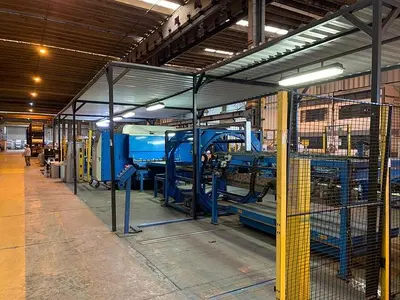

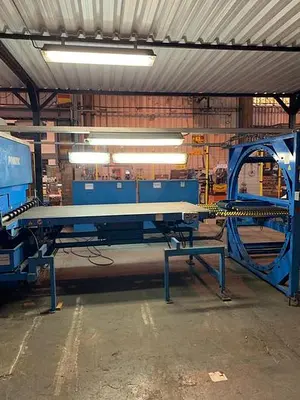

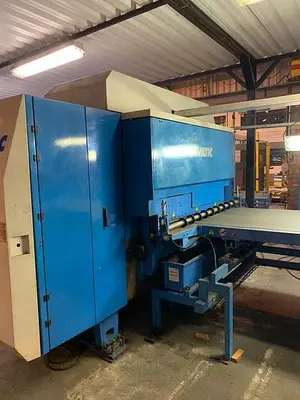

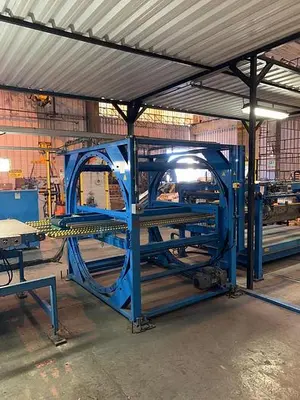

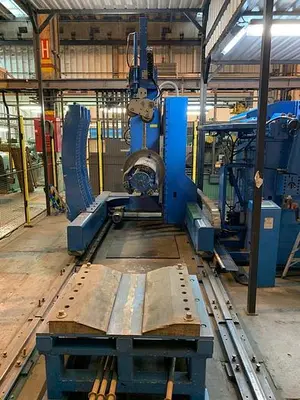

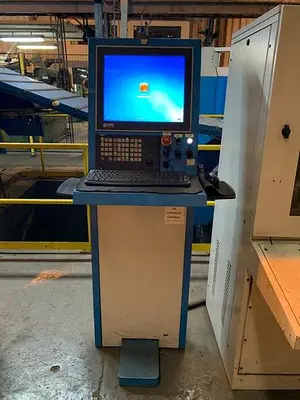

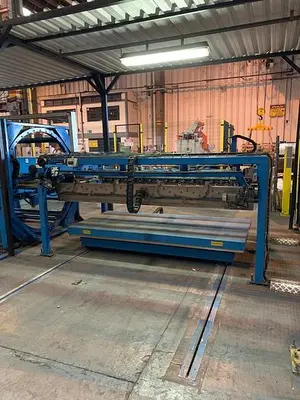

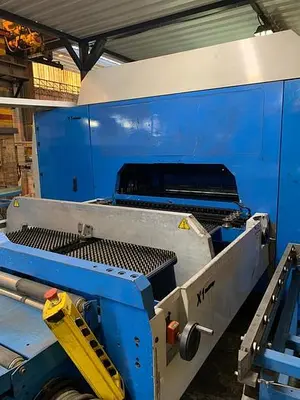

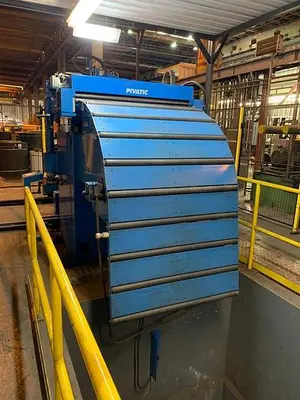

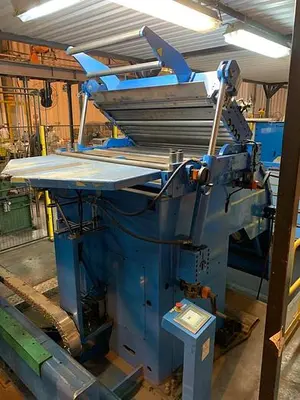

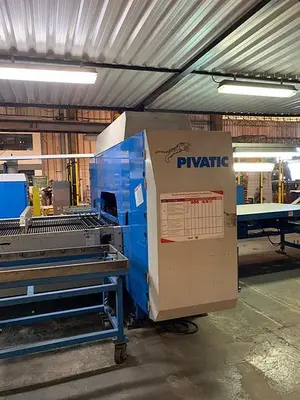

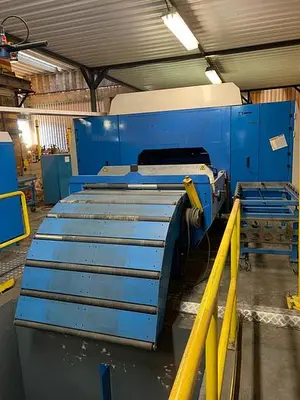

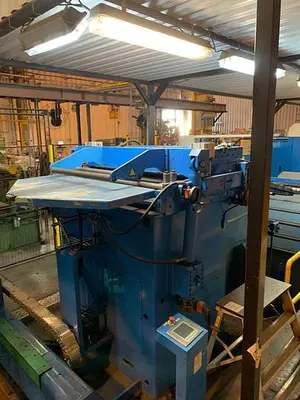

PivaPunch PCC125-e Electrical Punching Centre for Coils

General technical details:
Ambient temperature
-This equipment is designed for the max. ambient temperature of 45 °C.
Main connection details
Electrical connection,
-TN-S rated (3 phases and PE, N not required)
-voltage = 3*400 V
-fluctuation = +6,-10 %
-frequency = 60±5 Hz
-Main fuses = 63 A
-Pneumatic connection 800 = l/min at 6 bar
-Hydraulic power (200 bar) = 5.5 kW
Material data
-Steel strip, strength up to = 400 N/mm2
-Surface pre-painted, plastic covered, galvanised
-Coil weight up to = 10 000 kg
-Sheet thickness = 0,5....1.50 mm
-The diameter of the inside hole of coils = 508 mm
-The outside diameter of coils up to = 1 600 mm
-Strip width = 60...1 250 mm
Product data
-Cut blanks up to = 2 500 mm
-Punched blanks up to = 2 500 mm
-Accuracy of parts produced:
-When using proper material without chamber and internal stress and the strip being stiff enough (thickness/width), following tolerances apply:
PivaPunch incl. one Punching Station
Hole-to-hole tolerance of up to 2 000 mm long punched blanks ± 0,15 mm in X and Y directions.
-The tolerances of your parts are confirmed on request.
# These tolerances are valid for blanks up to 2 000 mm long which camber does not exceed 1 mm.
