Overview
Type:
Rolling Mills
Manufacturer:
UNITED
Stock #:
VX-17468
Description

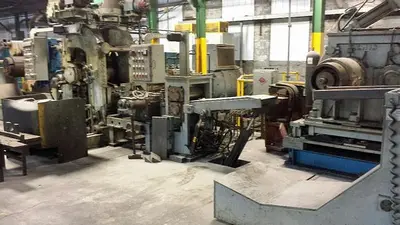

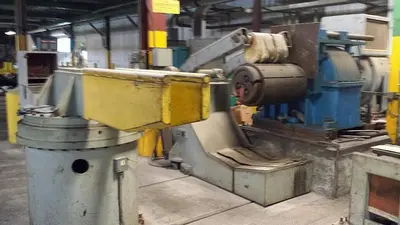

14" UNITED 4-HI ROLLING MILL (USED) Stock # VX-17468
Entry ID: 16 - 20"
I2S Electrics 1997
18 Work Rolls
4 Back Up Rolls, Morgoil Back Up Chocks, No Extra Chocks
14" Width Mill Rolls
Includes:
Coil Car

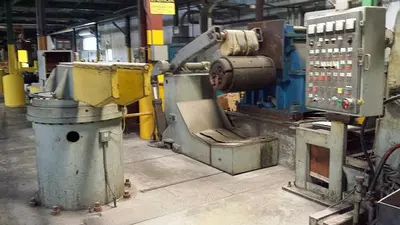

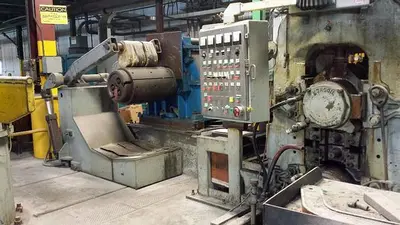

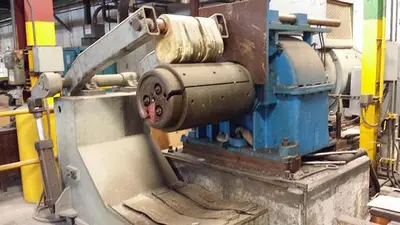

Uncoiler, 22" Wide, 100 HP Motor:
Peeler Pinch
Edging Stand Two Pass Dies, 2 Spare Dies

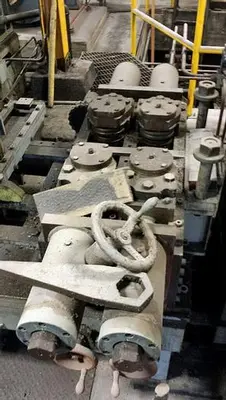

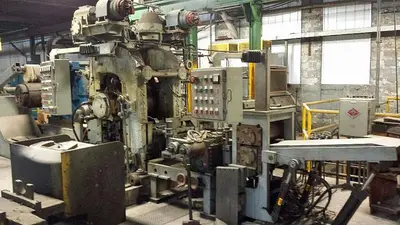

Mill Stand 4HI with Electro Mech. Screws
14" x 8" Post Area
Mill Has Liners
5" Diameter Work Rolls
200 HP Motor

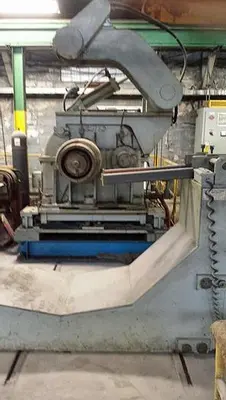

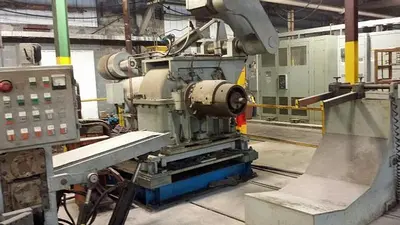

Recoiler, 30" Wide, 200 HP Motor
Turnstile, One Arm, 34" Wide
Winder Motor:
200 Horsepower
230 VDC Armature Voltage
200 Amps Armature Current
4 Field Amps
350 RPM Base Motor
1200 RPM Top Motor
5:1 Gearbox
20”-72” Diameter Range
Mill Motor:
200 Horsepower
230 VDC Armature Voltage
720 Amps Armature Current
200 VDC Field Voltage
4 Field Amps
350 RPM Base Motor
1200 RPM Top Motor
1:1 Gearbox
625”-5.125” Work Roll Diameter
Payoff Motor:
100 Horsepower
500 VDC Armature Voltage
164 Amps Armature Current
300 VDC Field Voltage
17.85 Field Amps
300 RPM Base Motor
1200 RPM Top Motor
5:1 Gearbox
20”-72” Diameter Range

Specifications

Maximum width: 12"
Minimum width: 1.5"
Entry gauge: .215”/.010”
Exit gauge: .205/.010”
Exit id: 20"
Entry & exit od: 72"
Footprint: 42' Long x 27' Wide
