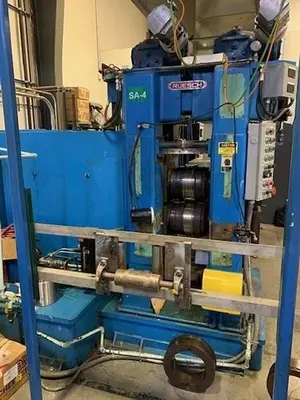

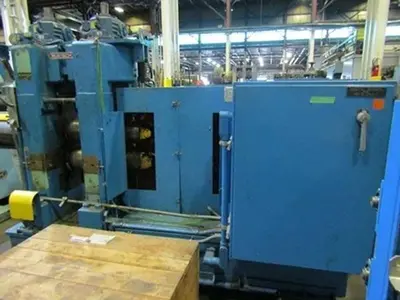

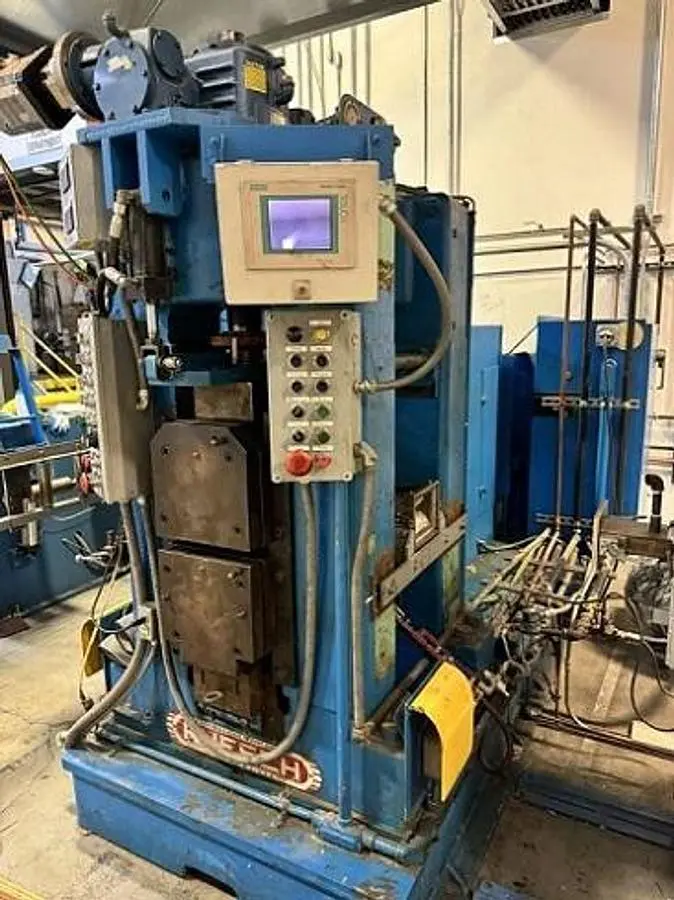

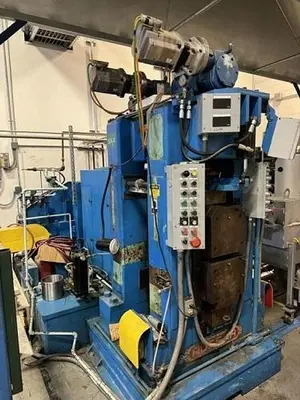

12” x 12” Ruesch 2Hi Reversing Rolling Mill

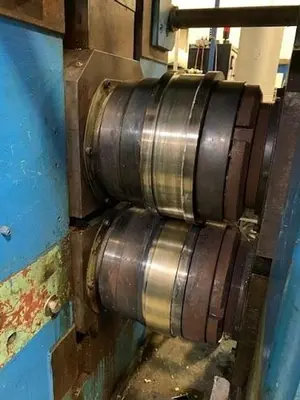

The 12” x 12” Ruesch 2Hi Reversing Rolling Mill is a robust piece of used industrial equipment ideal for a variety of applications, including breakdown milling for precious metals like gold and silver, intermediate milling for copper, steel, and aluminum, as well as cladding and bonding for dual strips. It features a roll size of 12" in diameter with a 12" face and is equipped with roller bearings. The mill has a maximum roll opening of 4.25" with an electro-mechanical screwdown system, providing precision and control.

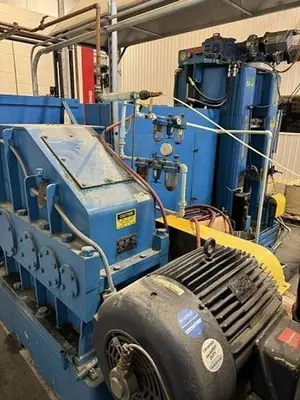

This rolling mill is powered by a 50 HP motor with a variable speed drive, offering versatility in operation with speeds ranging from 0 to 80 feet per minute. The motor operates on a three-phase, 230/460 V power supply at 60 Hz, capable of reaching 1,750 RPM. The robust gearbox by Horsburgh & Scott provides a ratio of 137.45:1, ensuring effective power transmission and torque. This equipment boasts a reversing capability, enhancing its functionality for different operational setups, such as when used as a cladding mill.

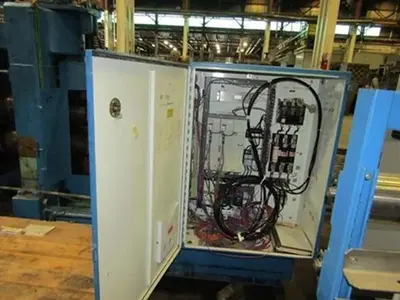

Additional features include a Parker AC Integrator 690+ Series variable speed drive and an HTTL encoder for speed and position control, ensuring smooth and efficient operation. The mill stand measures 124" in width and 138" in depth, with a window width of 13.25" and height of 41", providing a significant working area. It also includes features like entry strip side guides and pneumatic strip hold-down rolls for enhanced strip handling. With its comprehensive capabilities, this Ruesch rolling mill is a reliable choice for demanding industrial environments.
Entry Strip Side Guides
Pneumatic Strip Hold-Down Rolls
Spare Flat Rolls: (1) Set
Shell Rolls: (1) Set Installed in Mill
