72" x .187" x 60,000# Chicago Slitting Line with Two Injector Heads and Banding Line

72" x .187" x 60,000# Chicago Slitting Line with Two Injector Heads and Banding Line

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Slitters & Slitting Lines
Manufacturer:
CHICAGO
Stock #:
VX-35831
Description

Specifications:
Manufacturer: Chicago
Thickness Range: .016” to .187”
Cutting Capacity: 8 Cuts At .187”
Line Speed: 0 to 1000 FPM
Entry Coil ID: 20” to 24”
Exit Coil ID: 20” and 24” Diameter Sleeve Drums
Complete Line Includes:
Entry Turnstile:
Four Arm
Power Rotation

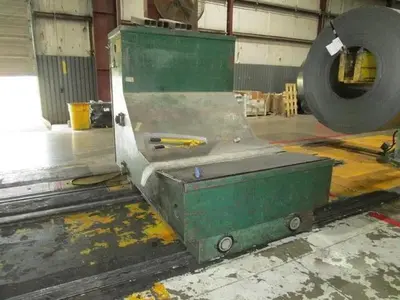

Entry Coil Car:
L Type
Floor Standing
Self Contained Hydraulics
Uncoiler:
Mandrel Uncoiler
Four Leaf Hydraulic Expansion
Pumpkin Tooth Mandrels
Sliding Base
New Wichita Dual Disc Brakes (2023)
Powered Hold Down Roll
Feed Up Drive
Peeler Table / Threading:
Peeler Table
Pinch Rolls
Hydraulic Crop Shear
Pinch Rolls
Two Sets Hydraulic Edge Guides

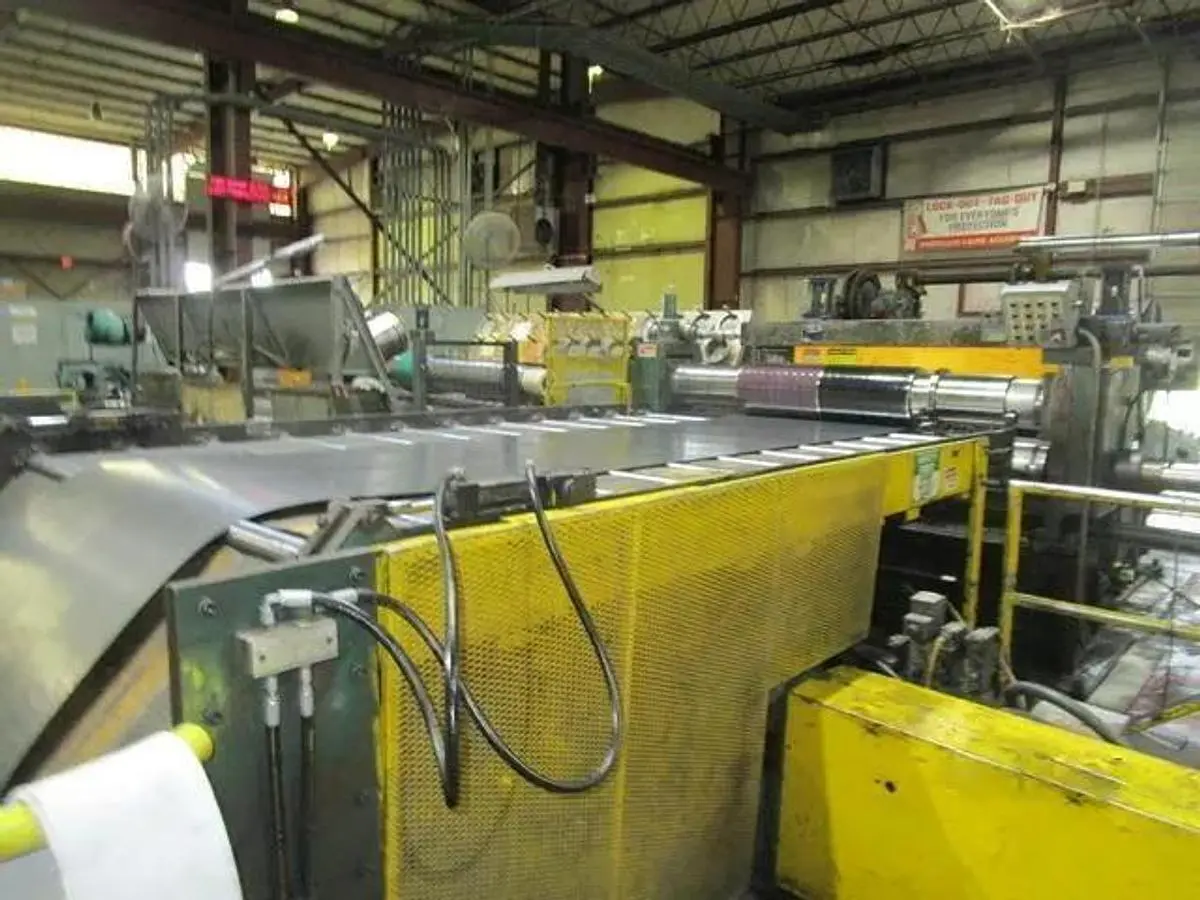

Slitter Section:
Dual Injector Slitter Heads (Two Heads)
9” Arbors
150 HP DC Drive
Hydraulic Arbor Adjustment
Hydraulic Tooling Locking Arbors
Feed Up Table
Shimless Tooling
Scrap Handling:
Two Scrap Winders
Variable Speed Control
Looping Pit
Cascade Rolls
Looping Pit Cross Over Table
Tension Stand:
Rotary Drag Board
Drag Pad With Air Bladder Pressure
Three Air Cylinders Top Pressure
Rotary Drag Roll
Dual Hydraulic Drag Brakes
Exit Section:
Exit Crop Shear
Exit Pass Line Roll

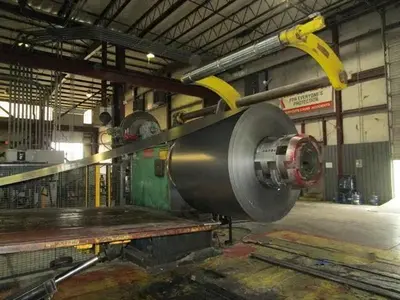

Recoiler:
Hydraulic Drum
20” and 24” Dual Sleeve Drums
Overarm Separator
Hydraulic Push Off
200 HP DC Drive (300/1800 RPM, 500 Volt)
Exit Coil Car:
L Type
Floor Standing
Self Contained Hydraulics
Coil Hold Down Roll
Coil Holders
Exit Turnstile:
Four Arm
Power Rotation
Power Push Off
Chicago Banding Line:
Downlayer:
15,000 Lbs Horn Type Coil Downlayer
84” Coil OD
Powered Rolls
Conveyors:
45 Degree Conveyor
15’ Powered Conveyor
60’ Powered Conveyor
Photo Electric Coil Positioning Eyes
Banding Table:
Coiltech Banding Table
Signode Banding Head
Three Conical Rolls
Turret Coil Stacker:
10,000 Lbs Braner Turret Stacker
ID / OD Coil Grabs
Coil Positioning Table
12 Position Coil Turntable
Controls/Hydraulics/Upgrades:
Safety System: New in 2017, Upgraded in 2025
Drives: Parker Digital DC Drives (New 2016)
PLC: Allen Bradley
Tooling: Shimless Tooling, Spare Tooling Shafts
Hydraulics: Central Hydraulic Unit With New Pump and New Motor
**Line Can Be Seen Under Power And Operating
