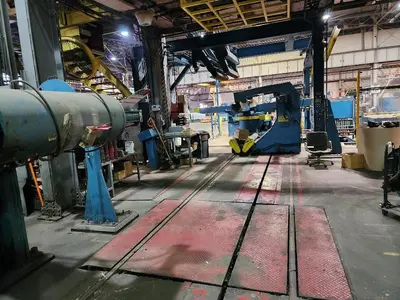

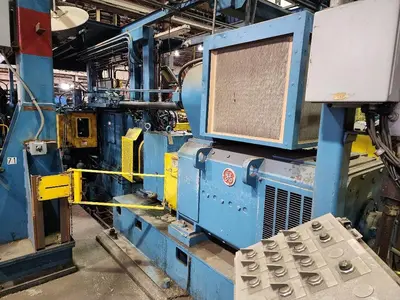

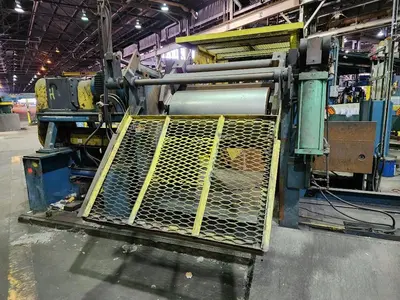

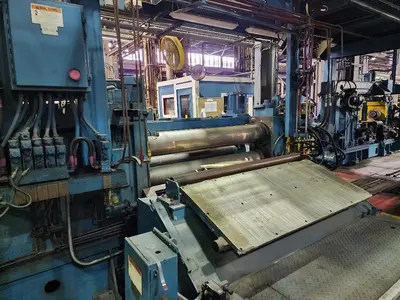

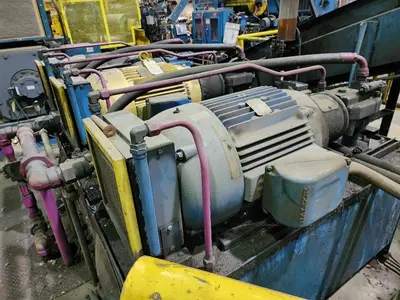

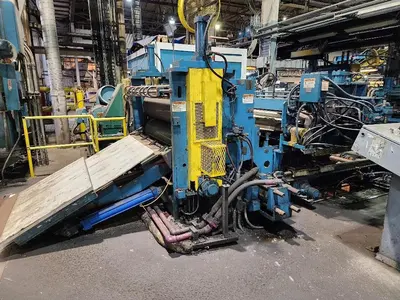

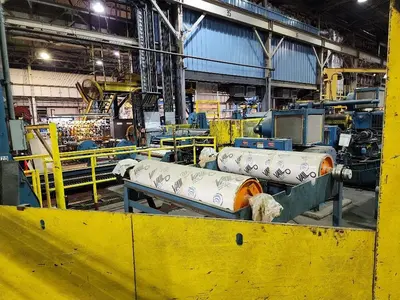

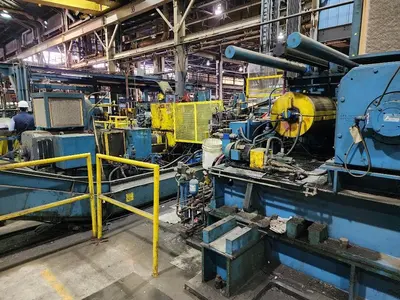

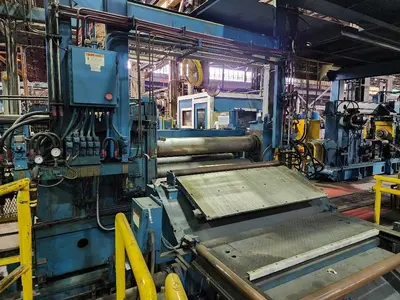

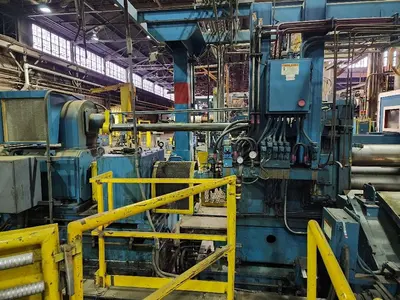

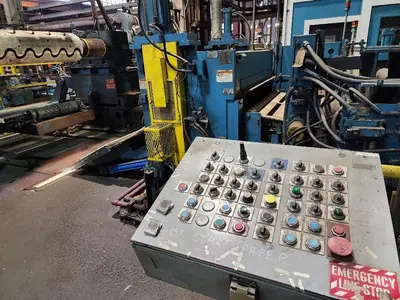

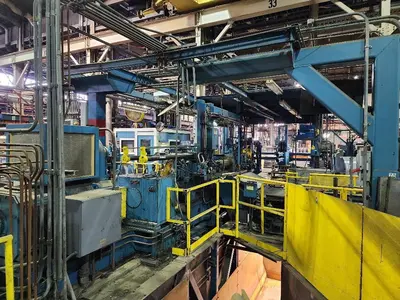

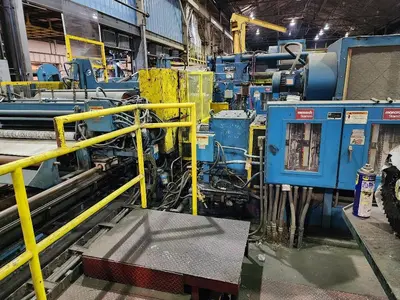

52” x .100” x 35,000 Lb. Stamco Double-Loop Slitting Line

Specifications:
Manufacturer: Stamco
Width: 52” (1320 mm)
Coil Weight Capacity: 35,000 Lb. (15,875 kg)
Coil ID Range: 16”–24” (406–610 mm)
Gauge Range: .010”–.100” (0.25–2.54 mm)
Line Direction: Right to Left
Line Speed: 500–1200 FPM (152–366 MPM)
Type: Double-Loop
Line is Installed
Line Components:

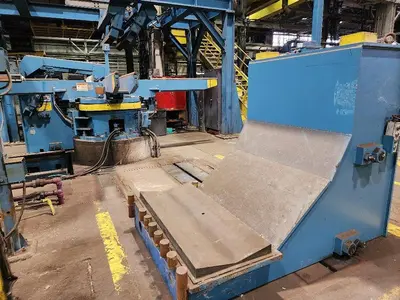

Entry Coil Car:
-L-Type design
-Powered rollers on bed
-Hydraulic lift and travel
-Self-contained hydraulic power unit

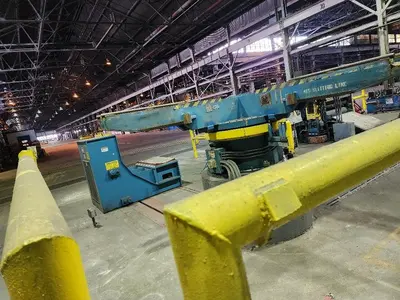

Entry Turnstile:
-4-arm, C-hook type arms
-Power rotation

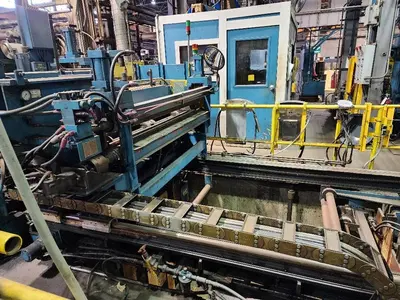

Coil Preparation Station:
-Powered pull rolls
-Mechanical crop shear
-Scrap conveyor

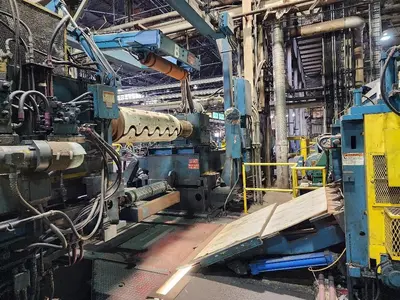

Turret Uncoiler:
-Hydraulic expansion with pumpkin-tooth mandrels
-Overarm hold-down roll
-DC motor drive and brake
-Slide base

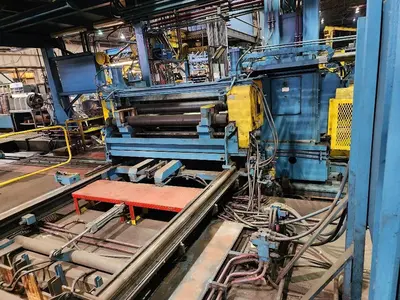

Entry Unit:
-Entry pinch roll
-Traveling design delivers metal over pit to slitter head
-Crop shear

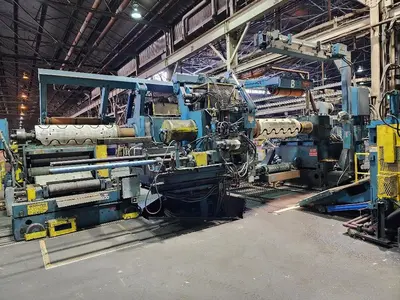

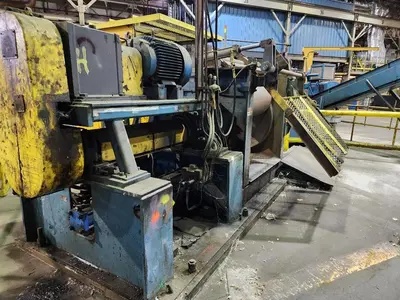

Slitter Head, Injector-design
-Driven entry pinch roll stand

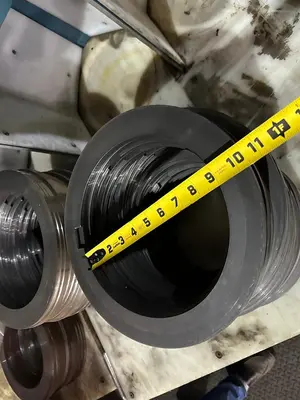

-Capstan Tooling exchange by 4-arm turret
-(1) Slitter head
-(1) Double-stub edge trimmer
-Hydraulic tooling lock-up
-200 HP DC motor drive

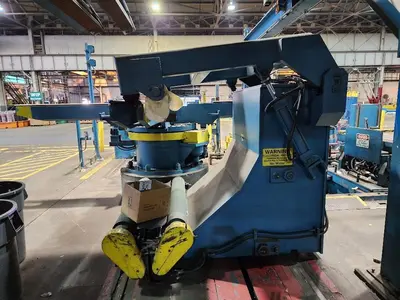

Scrap Baller

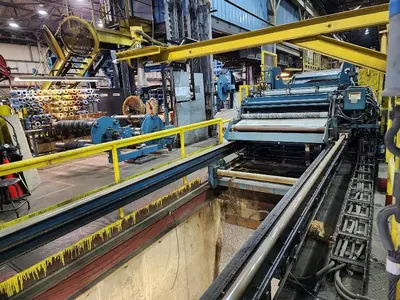

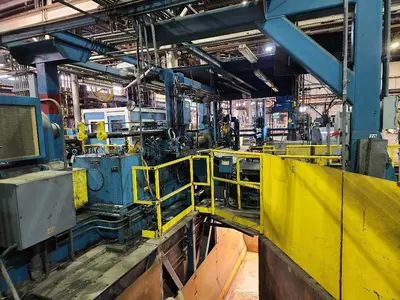

Pit Carry-Over Unit:
-Cascade rolls entry & exit
-Pad tension unit travels

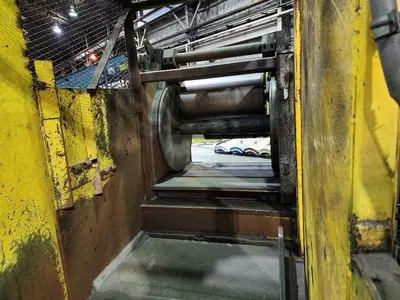

Combination Pad & Roll Type Tension Stand:
-Pneumatic air bag type pad tension
-DC motor drive / brake for rolls
-16” diameter urethane-covered rolls
-Hydraulic crop shear
Free-Standing Overarm Separator:
-Entry deflector roll
-Threading table

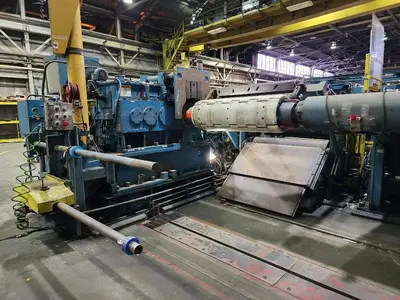

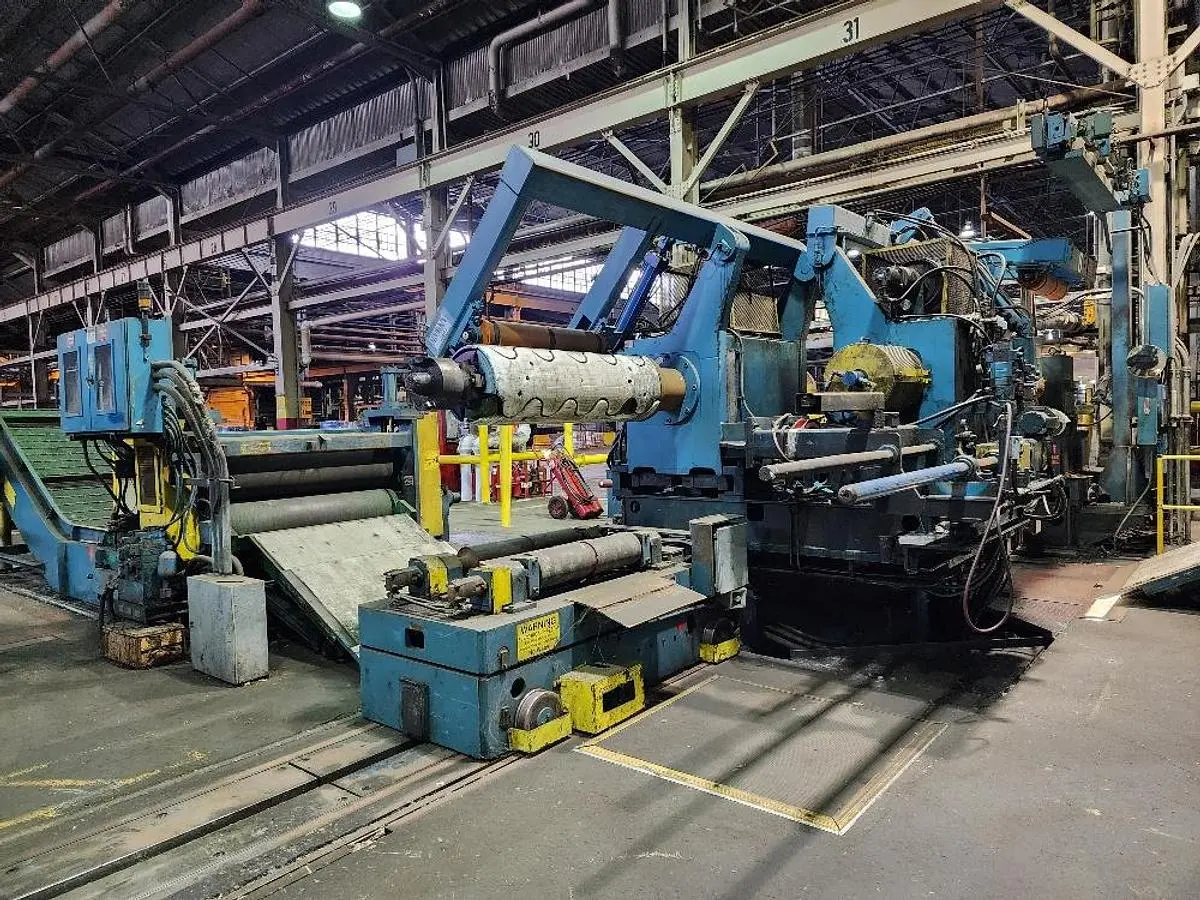

Recoiler:
-16” diameter drum

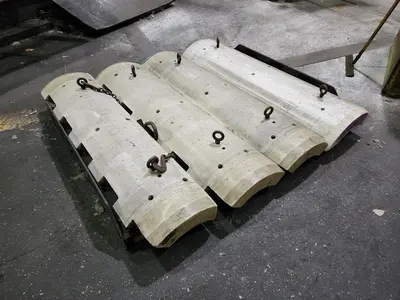

-20” & 24” bolt-on pads
-Hydraulic gripper and expansion
-Hydraulic pushoff
-200 HP DC motor drive, 500 V
-Two-speed reducer
-Outboard bearing support
Exit Coil Car:
-L-Type
-Powered rollers on bed
-Hydraulic lift and travel
-Self-contained hydraulic power unit
-Overarm hold-down arm
Exit Turnstile:
-4-arm, C-hook type arms
-Power rotation

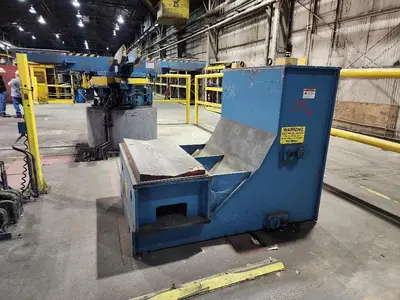

Delivery Coil Car:
-L-Type
-Self-contained hydraulic power unit
-Hydraulic lift and travel
