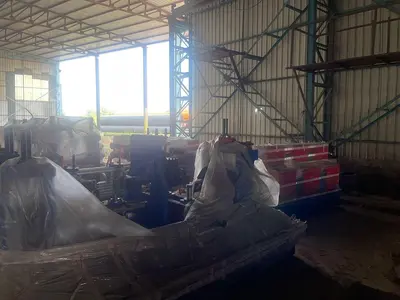

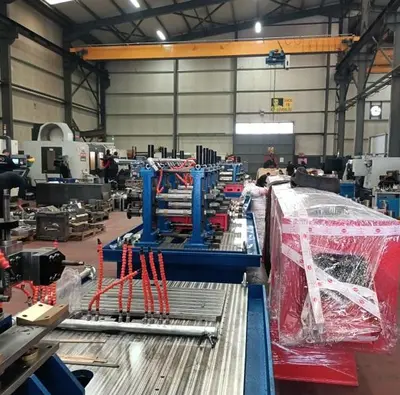

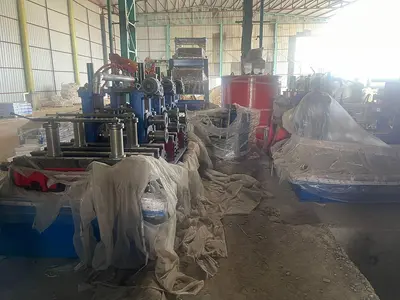

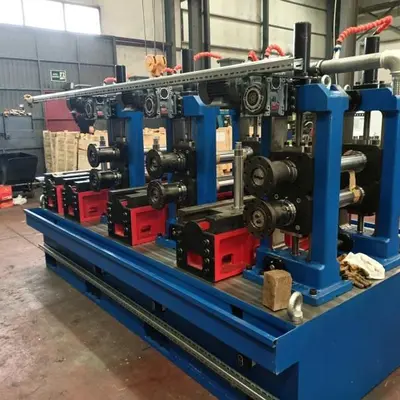

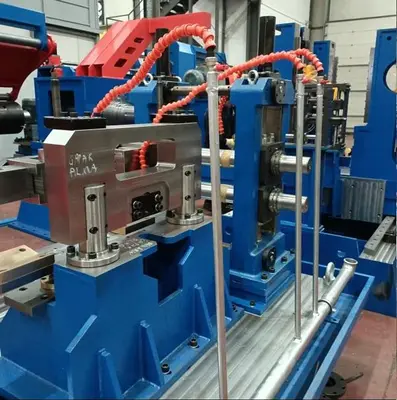

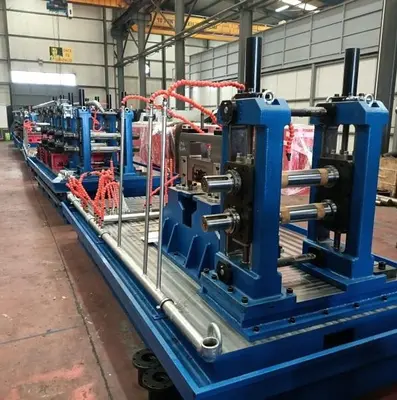

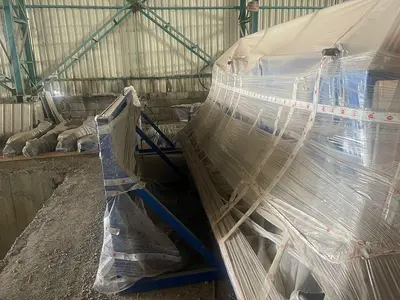

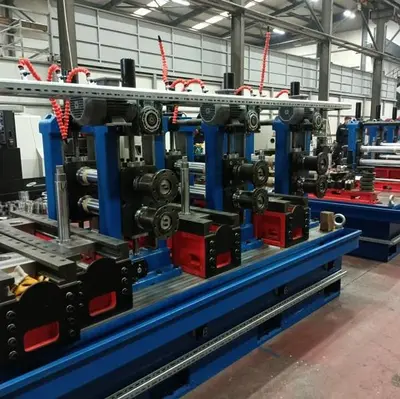

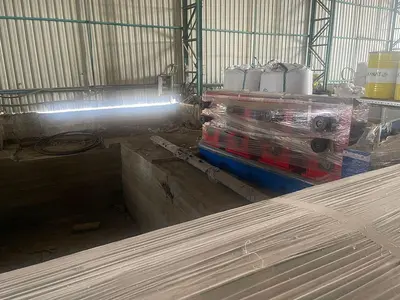

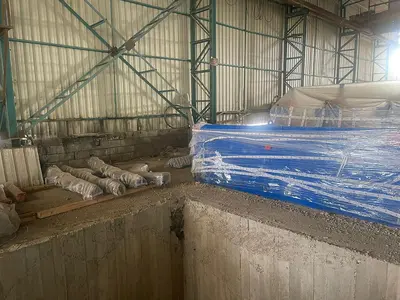

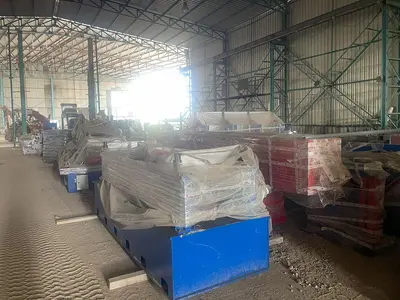

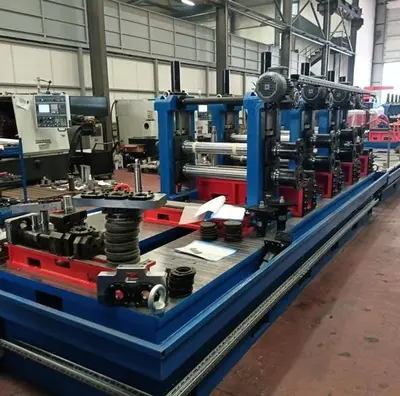

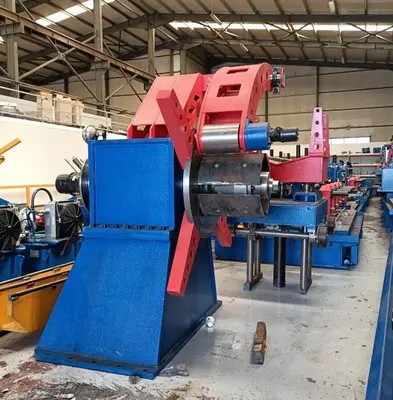

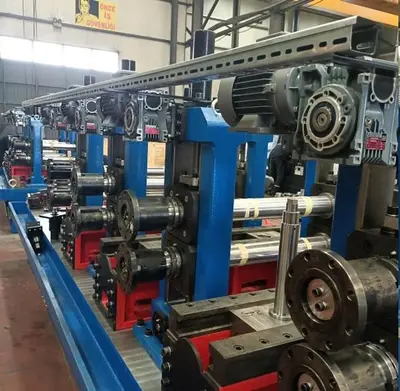

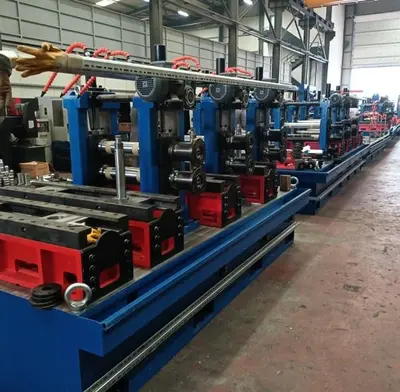

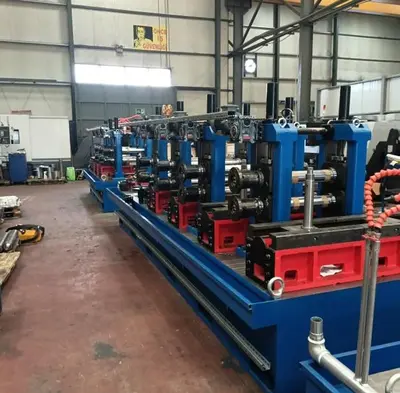

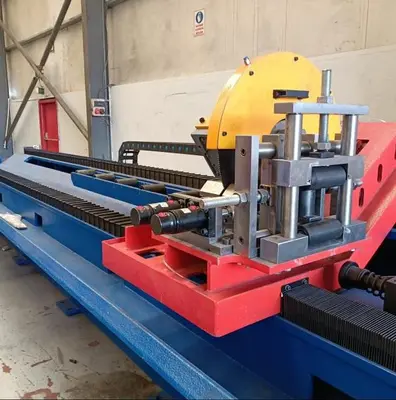

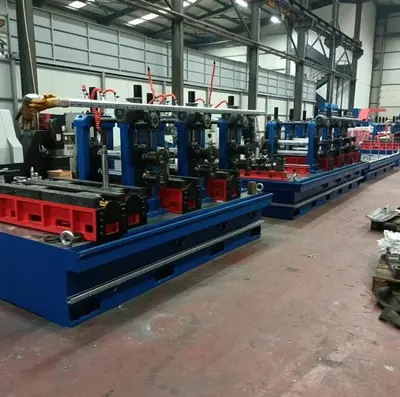

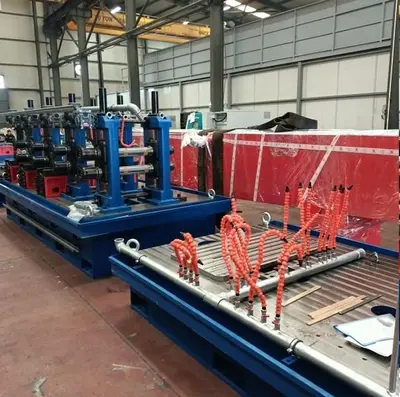

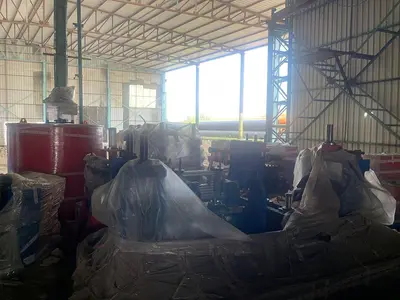

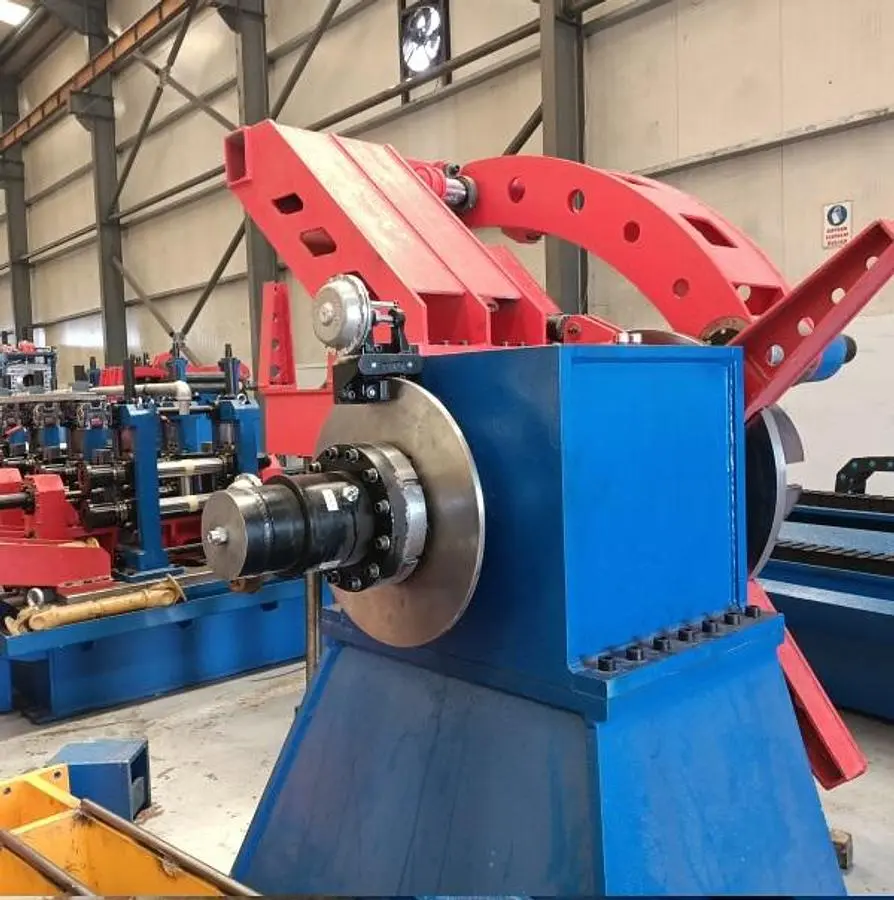

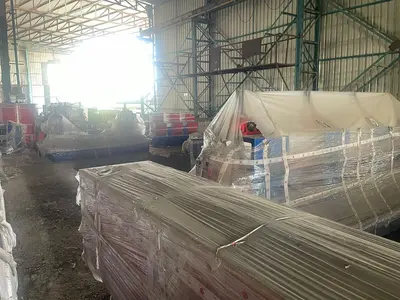

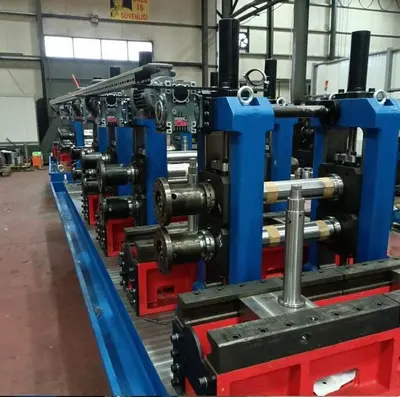

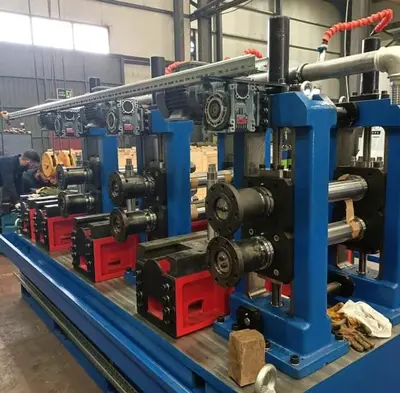

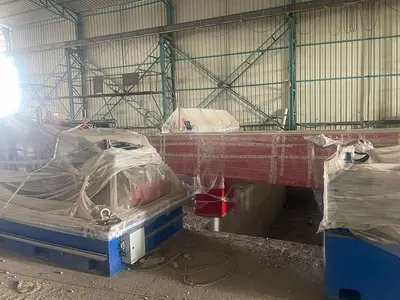

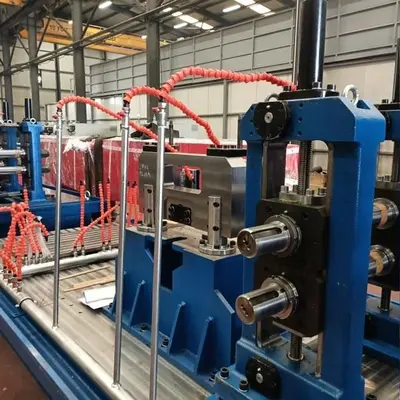

6" ERW Tube Mill (NEW, Never Installed)

Specifications:
Round Tube OD Capacity: 2” – 6” (51mm – 168mm)
Square Tube Capacity: 1.57” x 1.57” – 5.12” x 5.12” (40×40mm – 130×130mm)
Rectangular Tube Capacity: 1.18” x 1.57” – 5.51” x 4.72” (30×40mm – 120×140mm)
Wall Thickness Range: 0.059” – 0.250” (1.50mm – 6.35mm)
Maximum Strip Coil Width: 21.65” (550mm)
Tube Length Range: 13’ – 39’ (4m – 12m)
Mill Speed: 197 FPM (60 m/min)

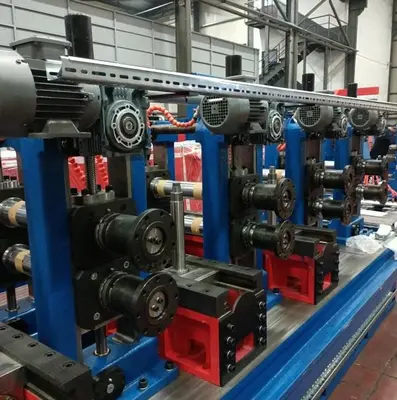

Form Group Motor Power: 241 HP total (180 kW | 90 kW ×2)
Caliber Motor Power: 214 HP (160 kW)
HF Solid State Welder: 400 kW

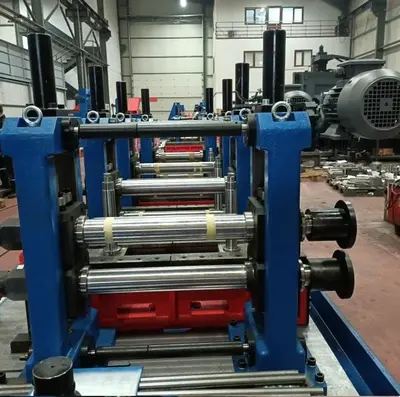

Form And Caliber Arbor OD: 3.54” (90mm)
Number Of Welding Rolls: 4
Included Tooling: (5) Sets
Tube Size Capability:
• Round: Ø3.00”, Ø3.50”, Ø4.00”, Ø5.00”, Ø6.61”
• Square: 2.36” x 2.36”, 2.76” x 2.76”, 3.15” x 3.15”, 3.94” x 3.94”, 5.12” x 5.12”
• Rectangular: 1.57” x 3.15”, 1.97” x 3.54”, 3.94” x 2.36”, 1.97” x 5.91”, 5.51” x 4.72”
Includes:
Warranty: 1 Year
Installation And Commissioning
