6.6” x 0.28” DMC Tube Mill Line

Specifications:
Tube OD Max: 6.63” (168.3 mm) / Min: 2.00” (50.8 mm)
Wall Thickness Max: 0.276” (7.0 mm) / Min: 0.055” (1.4 mm)
Tube Cut Length Max: 39.37’ (12,000 mm) / Min: 19.69’ (6,000 mm)
Line Speed Max: 197 FPM (60 m/min) / Min: 66 FPM (20 m/min)
Complete Line With:
Coil Lifting Car
26,455 Lb (12,000 Kg) Mandrel Uncoiler
Peeler / Pinch Rolls
5-Roll Leveler
Auto Shear And End Welder
Vertical Rotary Accumulator

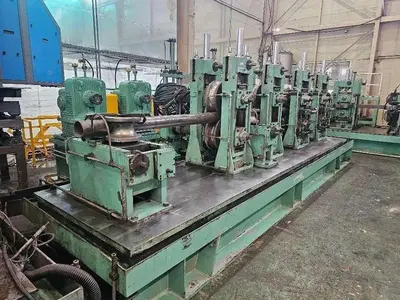

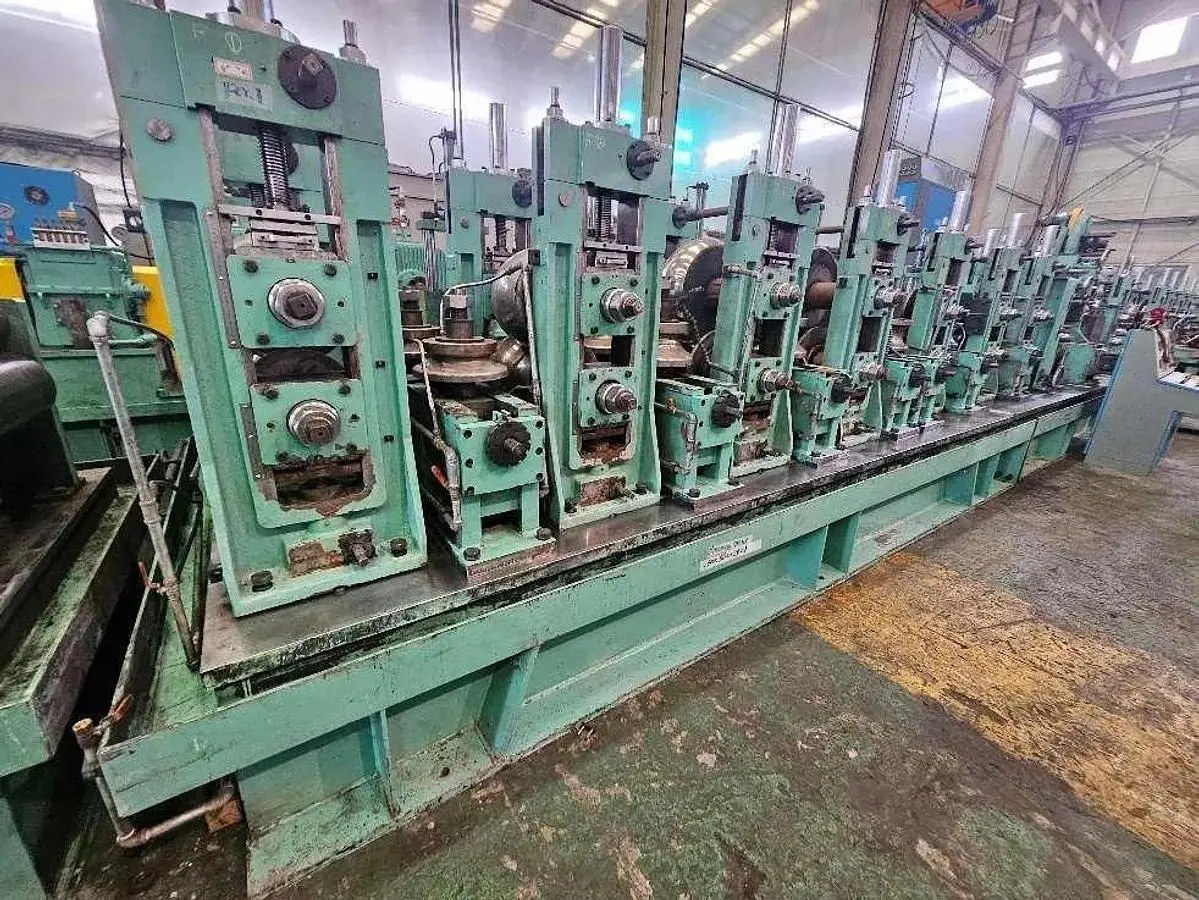

Forming Mill:
4.72” (120 mm) Diameter Shafts
Entry Pinch Rolls
7-Roll Leveler
4 Break Down Stands
3 Side Idler Rolls
2 Side Idler Roll Clusters
3 Fin Pass Stands
2 Side Idler Rolls
147 HP (110 kW) Forming Motor
100 HP (75 kW) Fin Pass Motor
Welding Section:
500 kW High Frequency Welder
Seam Guide Roll
4-Roll Squeeze Roll Stand
OD Bead Scarfing With 2 Cutting Tools
Ironing Pass
Scrap Winder
Cooling:
Cooling Bath
Emulsion Cooling System
Sizing Mill:
4.72” (120 mm) Diameter Shafts
Twisting Roll Stand
5 Sizing Roll Stands
Measuring Roll Stand
2 Turks Heads
Pull-Out Stand
174 HP (130 kW) Drive
Flying Cold Saw Cut-Off:
56 HP (42 kW) AC Servo Accelerator Drive
40 HP (30 kW) Saw Motor
177” (4,500 mm) Saw Travel
Rack And Pinion
Run Out / Packing:
Run Out Table
Auto Packing System (Square Tube Only)
Chain Conveyor To Pusher
Lifting Pocket
Exit Chain Conveyor
Strapping Station
Roll Tooling Included:
Rounds: 4.00”, 3.76”, 4.50”, 5.01”, 5.50”, 6.27”, 6.38”, 7.52”, 7.51”
Squares And Rectangles: 4” x 2”, 4” x 4”, 5” x 3”, 5” x 5”, 6” x 4”
Spare Parts Included
