5” ERW Tube Mill

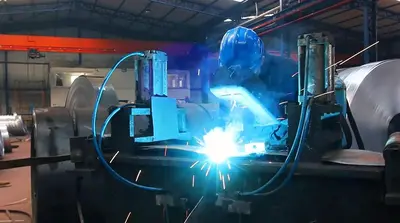

This used 5” ERW Tube Mill is manufactured by Birlik Makine and offers robust capabilities for tube production. It is suitable for a variety of materials, including Hot Rolled Coils (HRC), Cold Rolled Coils (CRC), and Galvanized. The mill operates in a right-to-left direction and achieves a maximum speed of 200 feet per minute. Equipped with a high-frequency solid-state welder rated at 402 HP, this mill ensures efficient welding processes.
The mill supports an outer diameter range for round tubes from 1.9 inches to 5 inches. For square tubing, it accommodates sizes from 1.6 inches x 1.6 inches up to 4 inches x 4 inches. Rectangular tubing dimensions start at 2 inches x 1.2 inches and go up to 4.7 inches x 3.2 inches. Material thickness can vary from a minimum of 0.060 inches to a maximum of 0.236 inches, accommodating various production needs.

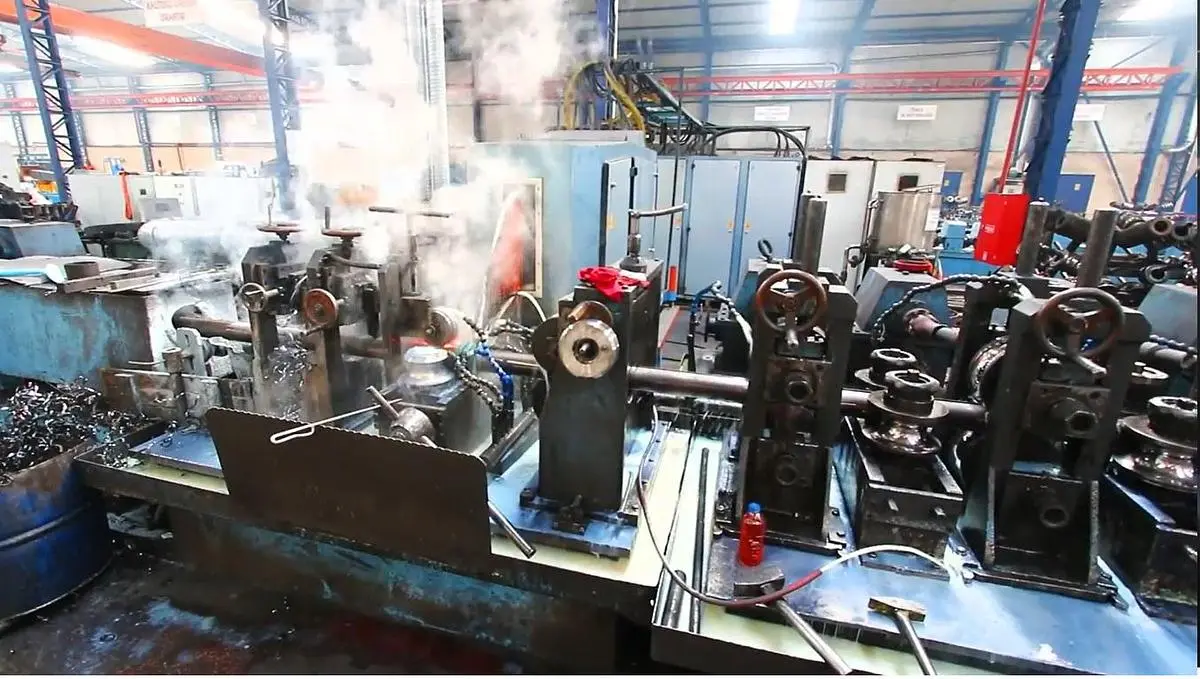

Key components of this tube mill include a forming section with 4 + 3 form stands, three Turks heads, and four caliber stands powered by drives of 148 HP. Note that the line does not include a flying saw or stowing unit, but it does come with a range of tooling for a variety of tube sizes. Overall, this tube mill presents a reliable solution for medium to large-scale tube production projects.
Forming Section:
Form Stands: 4 + 3
Turks Heads: (3)
Caliber Stands: (4)
Forming Drive: 148 HP
Caliber Drive: 148 HP
Flying Saw:
Not Included
Stowing Unit:
Not Included
Tooling Included:
Rounds:
1.9"
2"
2.1"
2.2"
2.4"
2.5"
2.8"
3"
3.2"
3.5"
4"
4.5"
5"
Squares:
1.6" x 1.6"
1.8" x 1.8"
2" x 2"
2.2" x 2.2"
2.4" x 2.4"
2.8" x 2.8"
3.2" x 3.2"
3.5" x 3.5"
4" x 4"
Rectangulars:
2" x 1.2"
2" x 1.4"
2" x 1.6"
2.4" x 1.2"
2.4" x 1.6"
2.8" x 1.2"
2.4" x 2"
2.8" x 1.6"
3.2" x 1.6"
3.2" x 2"
3.2" x 2.4"
3.5" x 2"
3.9" x 1.6"
3.5" x 2.8"
3.9" x 2.4"
4.7" x 1.6"
3.9" x 3.2"
4.7" x 2.4"
4.7" x 3.2"
