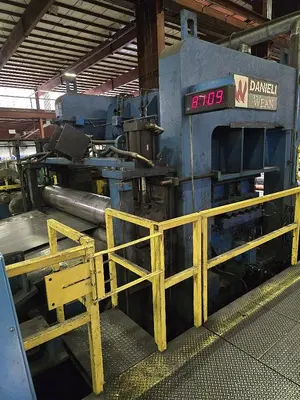

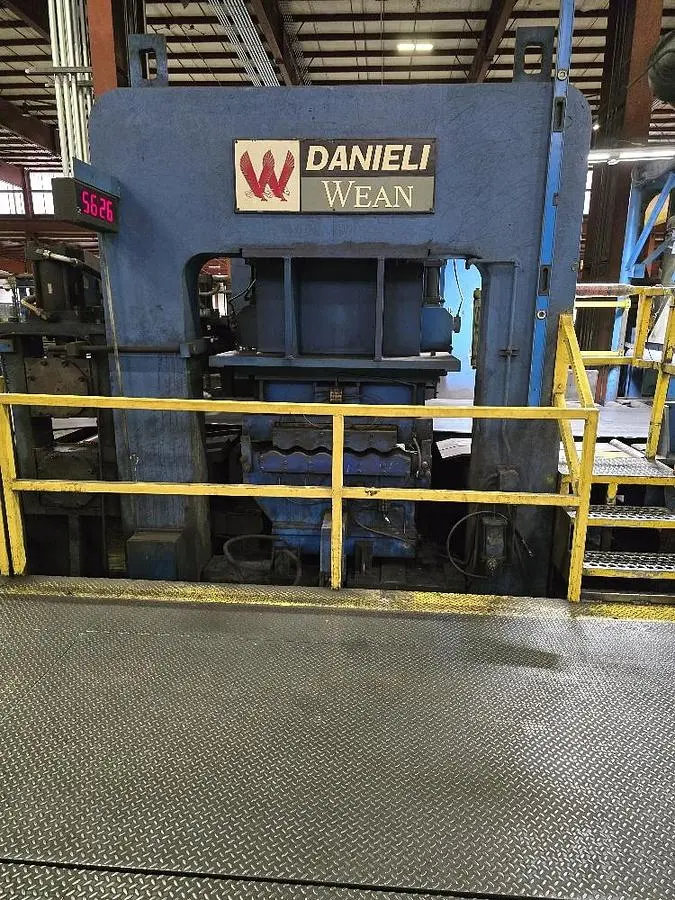

Specifications:
Manufacturer: Danieli-Wean
Product Width: 96” max., 29” min.
Thickness: .750” max. (45,000 PSI Yield Strength max.), .100” min.
Yield Strength:
-Mild Steel: .625” x 96” wide, 60,000 PSI max.
-High Strength: .500” x 96” wide, 100,000 PSI max.
Line Speed: 250 FPM max.
Line direction: Left to Right
Pinch Roll Size: 9.850” (250 mm) dia x 102” (2600 mm) face
Dual-Cassette and Floor Mounted Injection System:
(11) Heavy-Gauge Cassette Specifications:
Pinch Roll Size: 9.850” (250 mm) dia x 102” (2600 mm) face
Work Roll Quantity: 11-roll (5 over 6)
Work Roll Size: 5.500” (140 mm) dia x 104” (2641 mm) face
Back Up Flights: (3) top and (7) bottom
(17) Light-Gauge Cassette Specifications:
Work Roll Quantity: 17-roll (8 over 9)
Work Roll Size: 3.500” (89 mm) dia x 104” (2641 mm) face
Back Up Flights: (3) top and (7) bottom

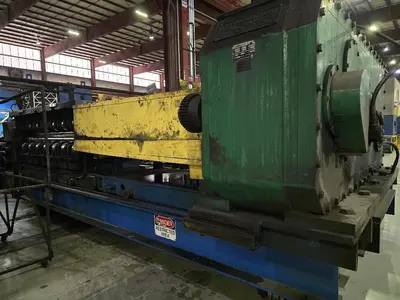

Main Drive Motor:
500 HP DC
500/1300 RPM
