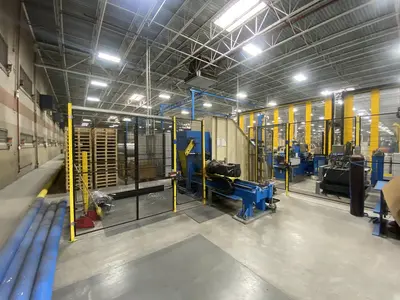

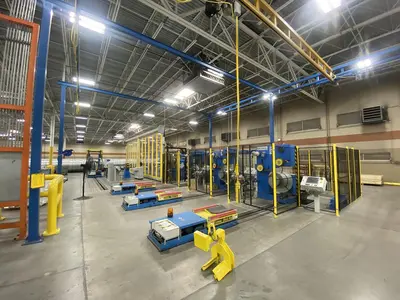

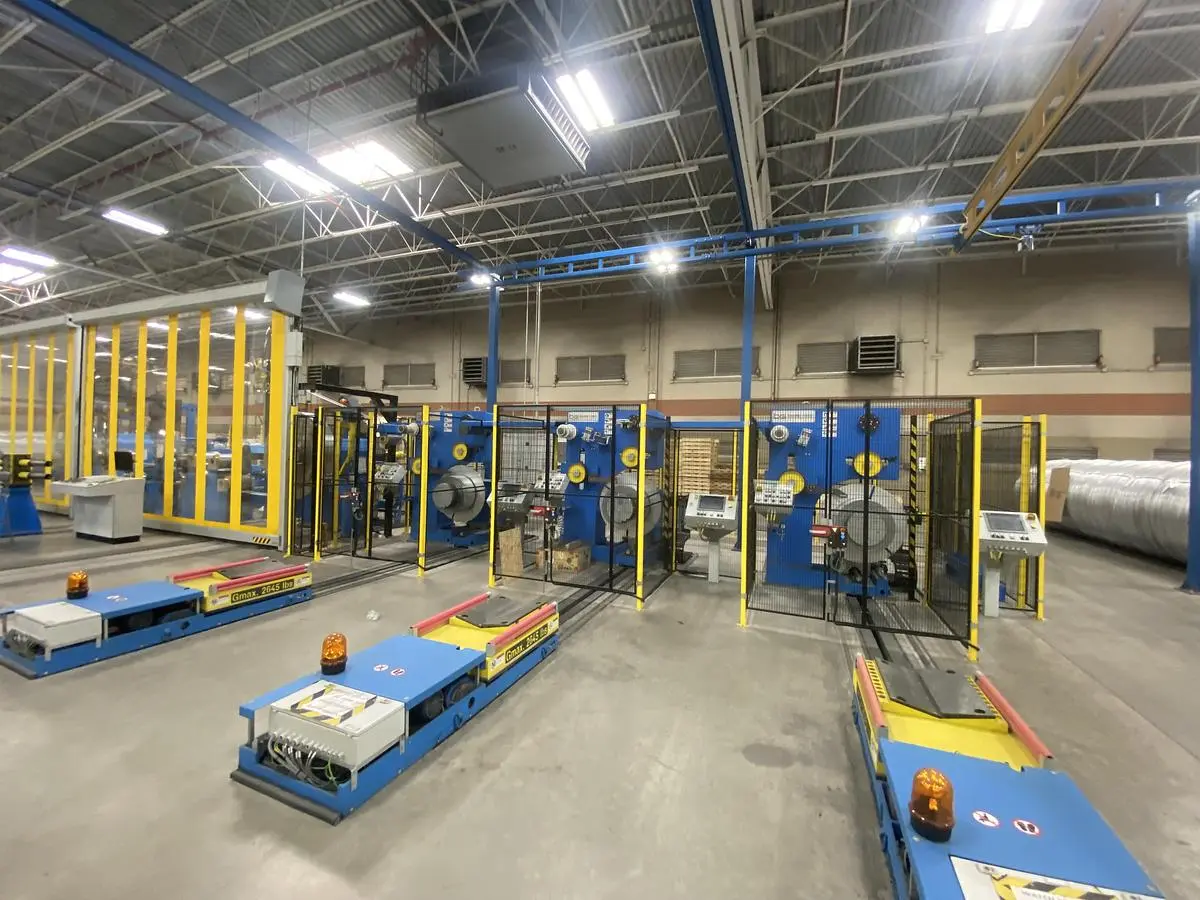

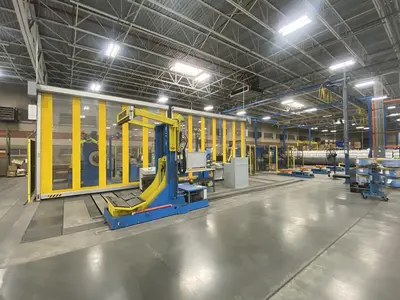

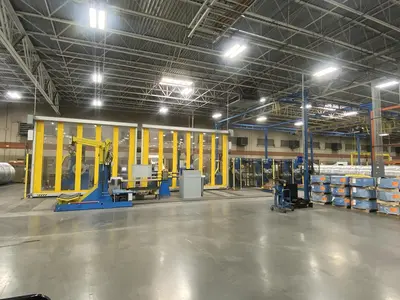

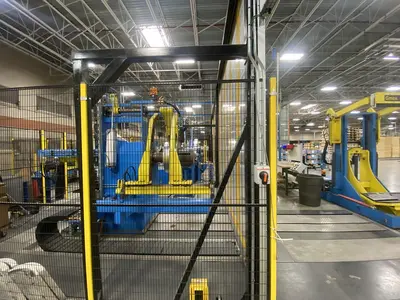

12" B+S Precision Traverse Winding Slitting Line (2022 - LIKE NEW)

Specifications:
Manufacturer: B+S
Material Thickness: 0.005” – 0.032”
Coil Width (Master): 3” – 12”
Slit Strip Width: 0.375” – 0.750”
Tensile Strength: 40,000 – 70,000 KSI
Elongation (Max): 20%
Line Direction: Left To Right
Line Speed (Max): 656 FPM
Jog Speed (Approx): 32 FPM
Pass Line Height: 43.31”
Noise Level: < 85 dB(A) with Safety Fence
Line Features:
Direct tension between decoiler and slitter
Running of the material at the drive side
Decoiler:
Strip edge control system (EPC)
Tension measuring and regulation with force-measuring bearings at the deflection roll
Slitting Shear:
Rubber bonded spacers
Steel stripper rings
Running of the material at the drive side
Recoiler:
Edge control system (EPC)
Tension measuring and regulation with force-measuring bearings at the deflection roll
Recoiling without sleeves
Slitting Shear Dimensions:
Knife Diameter: 7.8”
Knife Regrinding Diameter: Min. 6.7”
Knife Shaft Diameter: 3.9”
Key Way: With
Spacer Diameter: 5.12”
Steel Stripper Rings: 8.7”
Strip Width: 3” – 12” (depending on tensile strength and thickness)
Max Cuts: 3 Strips / 4 Cuts
Electric:
Power: 480V, 3 Phase
Line Type: TN Grounded System
Voltage Fluctuation: -5% / +10%
Frequency: 60 Hz ±2%
Solenoid Valve: 24V DC
Control Voltage (General): 230V AC
Control Voltage (PLC I/O): 24V DC
Control Voltage (Sensors): 24V DC
Regulations: DIN VDE 0100, DIN EN 60204-1, DIN EN 60439-1
Electrical Components:
AC Motors: Siemens
AC Gear Motors: Siemens
4Q Power Converter: Siemens
PLC Controller: Siemens
Switch Cabinet & Control Desks: Rittal
PC System: Windows (Newest Version)
Relays & Buttons: Siemens
Terminal Strips: Weidmüller / Phoenix
Proximity Switches: IFM
Pneumatics: Römheld
Position Transducer: T+R Incremental / MTS Linear
Tension Measuring Bearings: FMS
Coil / Strip Data:
Coil Condition: Tight wound, min. 8 N/mm², straight wound, layer offset max 5 mm/side
Coil ID: 16” / 20” (406 mm / 508 mm)
Expansion Range: 15.0” – 16.54” (420 mm) with Interchangeable Jaws 19.0” – 20.55” (520 mm)
Coil OD: Max 70.8”
Decoiling Direction: From Top
Strip Tension: 148.59 – 3,660 N (Direct Tension)
Welding Machine (RSM-350):
Purpose: Welding End And Beginning Of Coils
Welding Procedure: Tungsten-Inert-Gas (TIG)
Material Width: 0.40” – 13.8”
Material Thickness: 0.0098” – 0.04”
Cutting Angle: 90°
Cutting Force (Max): 100 kN
Welding Current: 2 – 200 A
Cycle Time: 120 sec
Drives: DC Servo With Integrated Absolute Encoder (Siemens)
PLC Control: Siemens
Touch Screen Panel: 10.4”
Program Memory: 100
Language: German / English
Power Supply: 3x480V, 60 Hz, 3x16A
Pneumatic Components: 6 bar
Gas: HE 50 (50% Helium / 50% Argon)
Gas Bottle Size: 20 Liters
