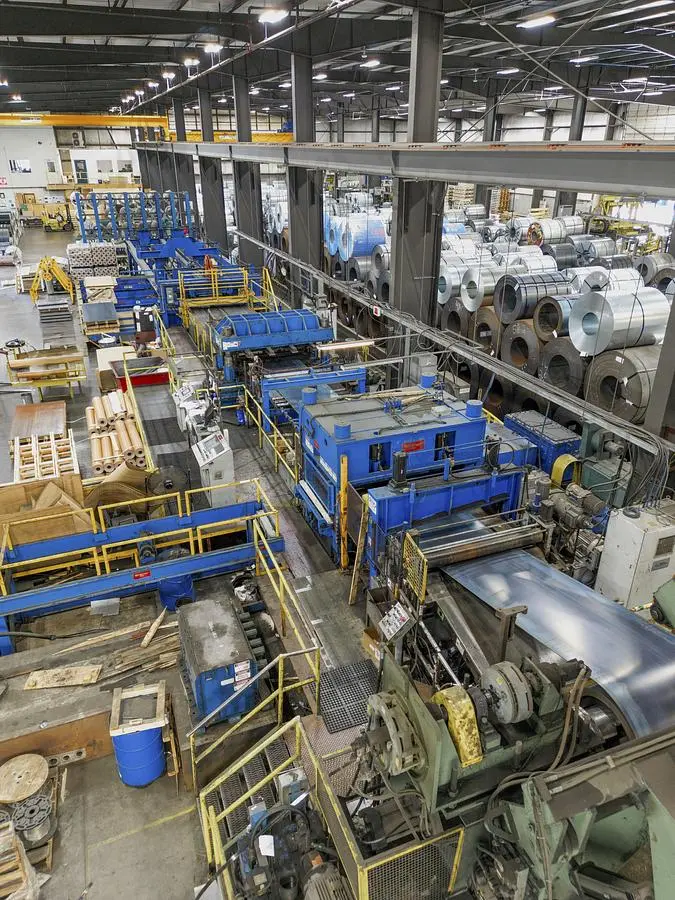

72” x .250” x 50,000 Lbs. Braner Cut-To-Length Line

72” x .250” x 50,000 Lbs. Braner Cut-To-Length Line

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Cut To Length Lines
Manufacturer:
BRANER
Stock #:
VX-35703
Description

General Specifications:
Manufacturer: Braner
Width Capacity: 72"
Weight Capacity: 50,000 Lbs.
Gauge Range: .020" - .250"
OD Range: 72" Max
ID Range: 20-24" w/ Pads for 30"
Stacker Sheet Length: 40' Max
Line Includes:
3-Station Coil Storage Saddle
Coil Car
Uncoiler
Entry Unit
-Peeler Blade
-Pinch Rolls
-Side Guide
Entry Crop Shear
Leveler, Braner
-84" x 3-1/2" Work Rolls
-Hydraulic Adjusted Back Up
Measuring Roll Unit
Flying Shear
Inspection/Feed Table
-Belt Conveyor
Stacker
-Side Eject
Hydraulic Crop Shear With Scrap Table
Shear Strength: 50,000 PSI
Strip Width: 72”
Strip Thickness: 0.25” max - 0.010” min
Shear Cycle Time: 15 seconds
Means Of Actuation: Hydraulic cylinders
Seventeen Roll Cassette Leveler - Four (4) High
Materials: Hot rolled and hot rolled P&O carbon steel – ASTM A568 or better
Maximum Yield Strength: 80,000 PSI @ 0.180” thick and less / 65,000 PSI @ 0.250” / 50,000 PSI above 0.250”
Minimum Yield Strength: 36,000 PSI
Maximum Thickness: 0.312”
Minimum Thickness: 0.075”
Maximum Strip Width: 72”
Number Of Work Rolls: 17
Work Roll Diameter: 3.500” (cassette)
Back Up Flights: 7 adjustable flights
Roll Arrangement: Four (4) high
Drive: 300 horsepower, DC
Hydraulic Power Supply: 15 horsepower, AC
Maximum Leveler Speed: 150 FPM
Electrical Power Supply: 460 volt / 3 phase / 60 hertz service by buyer
Pallet Infeed Pusher
Maximum Pallet Width: 72”
Minimum Pallet Width: 24”
Maximum Pallet Length: 240”
Minimum Pallet Length: 30”
Number Of Pallets: One 20 foot long pallet
Drop Stacker
Maximum Thickness: 0.312”
Minimum Thickness: 0.075”
Maximum Sheet Width: 72”
Minimum Sheet Width: 24”
Maximum Sheet Length: 480”
Minimum Sheet Length: 30”
Maximum Stack Weight: 40,000 pounds max (1,150 pounds per 13 foot section)
Number Of Lift Stations: 3 each
Maximum Stack Height: To be advised based on the existing line
Stacker Conveyor Type: Side discharge chain conveyor
Note: No blower
40’ Side Discharge Conveyor
Maximum Stack Width: 72”
Minimum Stack Width: 24”
Maximum Stack Length: 480”
Minimum Stack Length: 30”
Maximum Stack Weight: 40,000 pounds (20,000 pounds per 20 foot section)
Maximum Stack Height: To be advised based on the existing line
Number Of Sections: One 8 foot long x 40 foot wide section
