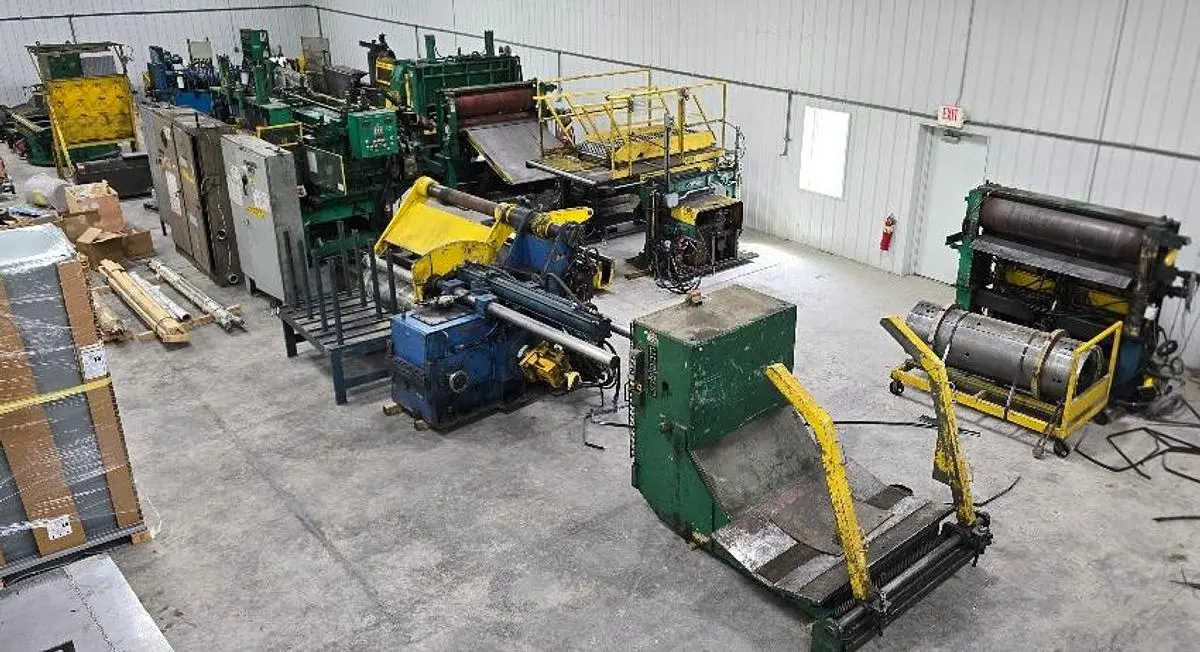

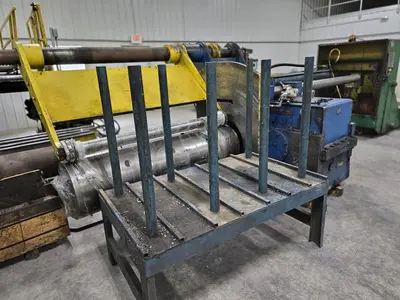

60” x 0.250” x 50,000 lb Pro-Eco Slitting Line

Specifications:
Manufacturer: Pro-Eco
Year: 1991
Line Direction: Left to Right
Coil Width: 60”
Thickness: .020" - 0.250” (1/4”)
Max Coil Weight: 50,000 lbs.
Max OD: 72”
Coil ID Range: 20”–24”
Line Includes:

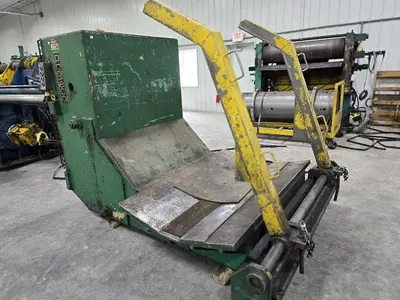

Entry Coil Car
– Above-floor hydraulic design
– 48” wide bed
– 72” OD capacity
– 50,000 lb capacity
– Self-contained hydraulics

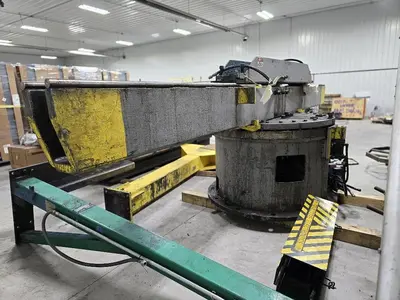

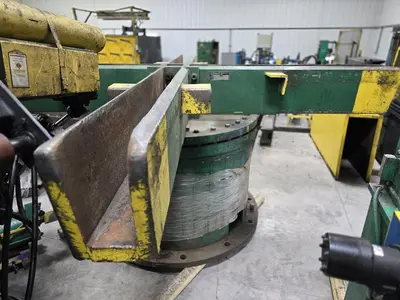

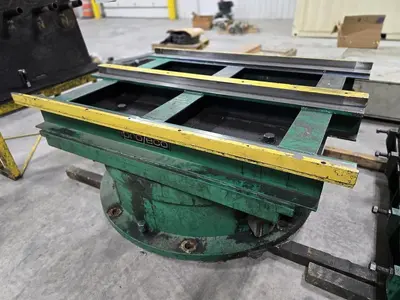

Entry Turnstile
– 4-arm hydraulic rotate design
– Arm length: 40”
– 6” wide C-hook slot
– 50,000 lb capacity/arm
Uncoiler Base (Mandrel Missing)
– Hydraulic sliding base
– Gibs present
Peeler Blade
– Width: 60”

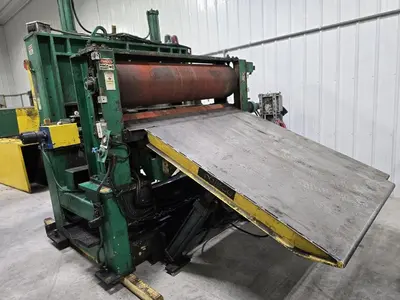

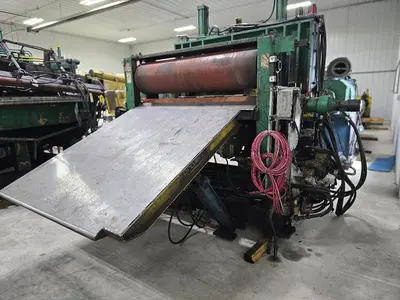

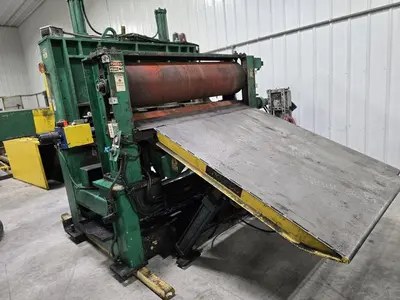

Pinch Rolls
– Bottom Roll: 8” diameter, hydraulically driven
– Top Roll: 14” diameter
Edge Guides
– Single-screw system
– One guide roll per side
Hydraulic Entry Shear
– Down-cut design
– Blade width: 64”

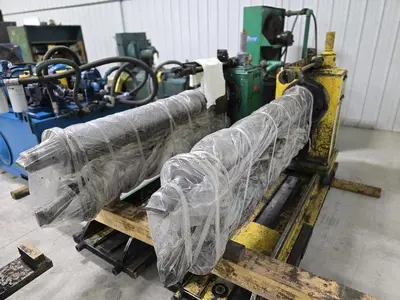

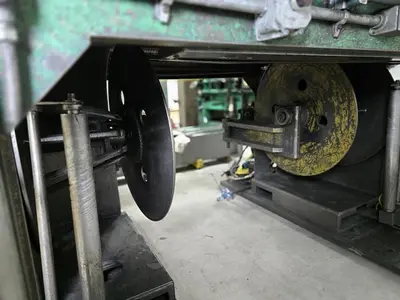

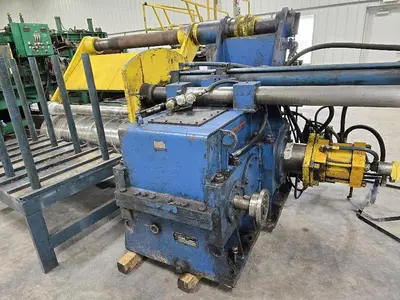

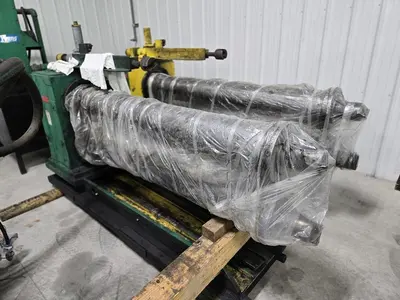

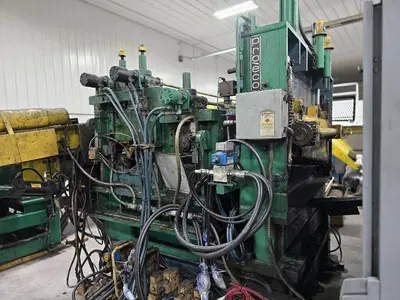

Pro-Eco Injector Head Slitter
– 9” arbors
– 64” width
– Rotating injection system design
Slitter Base + Gearbox + Motor
– Gearbox:
– Rated 150 HP
– Input: 850 RPM
– Ratio tag: 10.379:1
Slitter Motor:
– 150 HP
– 850–1950 RPM
– 500V DC
– Cleveland Machine Controls

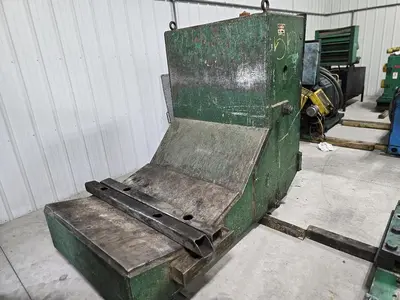

Scrap Handling
– (2) Hydraulic Scrap Winders
– Oscillating eye design
– Platform overhead
Crossover Table + Feed Equipment
– Loop pit crossover table
– Feed table and pinch rolls included
– Positioned after slitting and scrap section

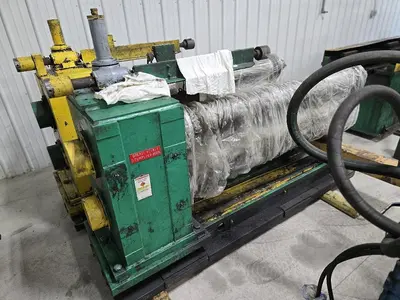

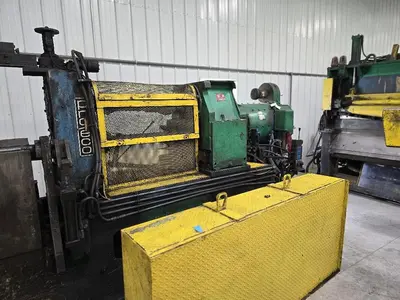

Pro-Eco "Preflex" Leveler
– 2-over-3 roll configuration
– Backup rolls throughout
– Roll Diameter: 2”
– Designed for light gauge material
Pass Line Roll
– Positioned directly after leveler
Tension Stand
– Pad-Type
Hydraulic Exit Shear
– Blade width: 64”
– Down-cut design

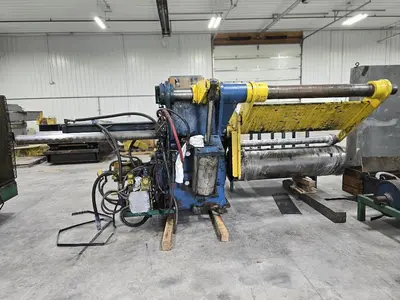

Recoiler
– Width: 70”
– Collapsed ID: 19.5”
– Pads included for 20”/24” coils
– Tag: 50,000 lb x 60” wide x 72” OD x 20/24” ID
– Gripper slot direction: Left to Right
– Attached overarm separator
– Push-off system
– Recoiler feed table

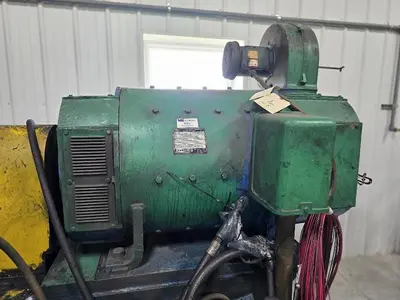

Recoiler Drive Motor
– 300 HP Reliance Electric DC
– 600–1950 RPM
– 500V

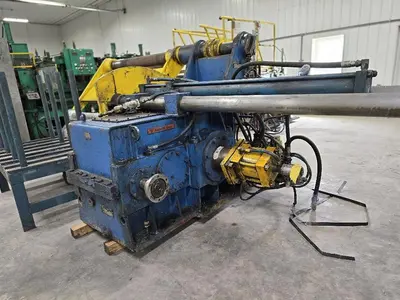

Recoiler Gearbox
– Gear Ratio: 20.5037:1
– Replaced in 2020
Exit Coil Car
– Above-floor hydraulic design
– 67” wide bed
– 22” lift
– 50,000 lb rated
– Rack & pinion keeper arms
Exit Turnstile
– 4-arm Pro-Eco pull-off design
– Arm length: 66”
– 2 arms installed, 2 removed for shipping
– Tag: 50,000 lb x 60” wide x 72” OD x 20”/24” ID
Hydraulic Unit
– Twin 40 HP motors
– Thicker, upgraded pumps
– Replaced 8 years ago
– Powers recoiler/slitter and possibly entry section

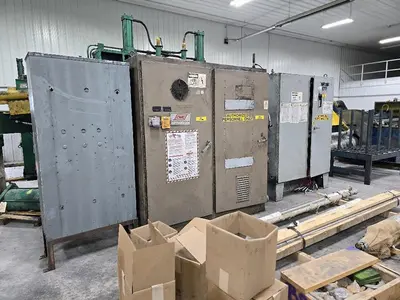

Solid-State Rectifiers
– Cleveland Machine Controls
– Power the 300 HP recoiler and 150 HP slitter motors
Transformers
– Stored in container onsite
Miscellaneous Parts
– Electrical cabinets
– Brake units
– Hydraulic cylinders
– Scattered/stored throughout facility
