Overview
Type:
Cut To Length Lines
Manufacturer:
HERR VOSS
Stock #:
VX-35672
Description

Specifications

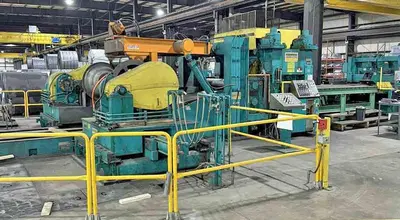

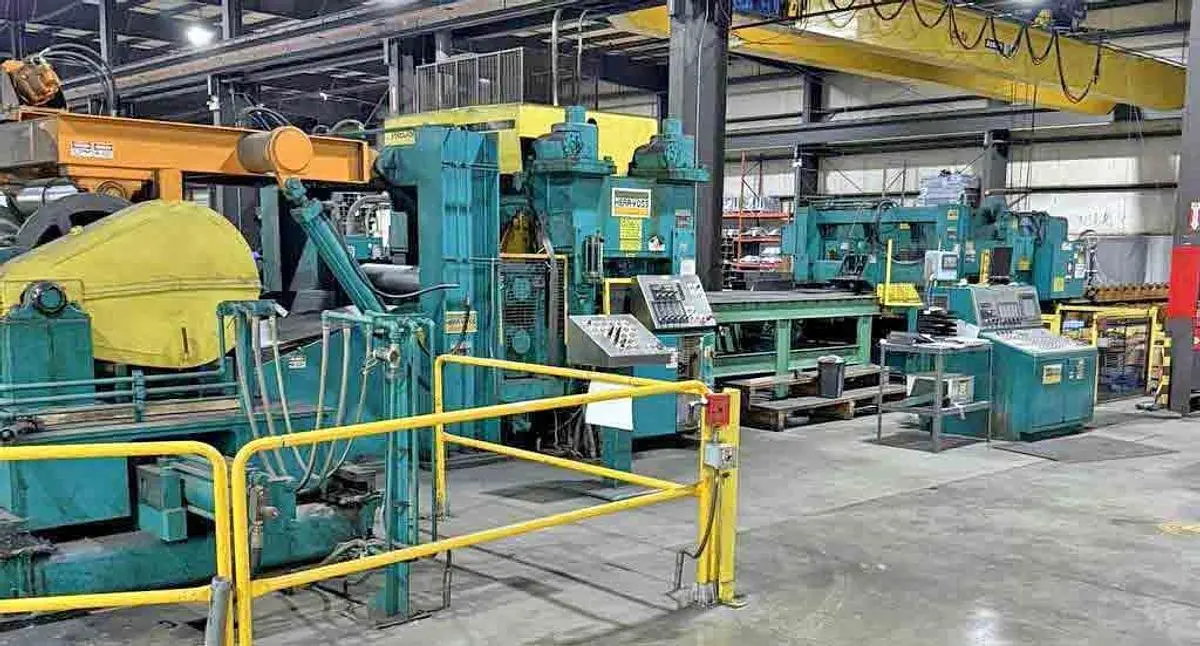

74" x 0.375" x 60,000# Herr Voss Cut To Length Line
-36" to 74" Wide
-60,000 lbs. Coil Weight
-0.075" to 0.375" Thick (at 80,000 PSI Yield)
-20" to 34" Coil I.D. Range
-84" Max. Coil O.D.
-50 FPM Jog Speed
-20 to 175 FPM Line Speed
-Left to Right Line Direction
Consisting of the following:

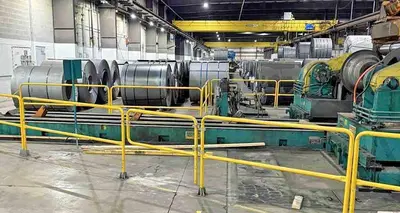

-Entry Coil Ramp:
 3 Coil Storage
 Hyd. Lever Type Holding Mechanism

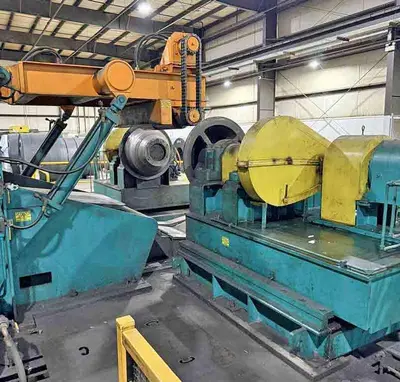

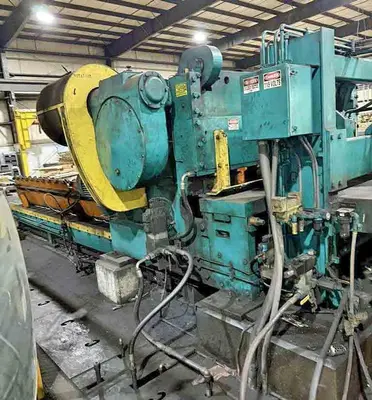

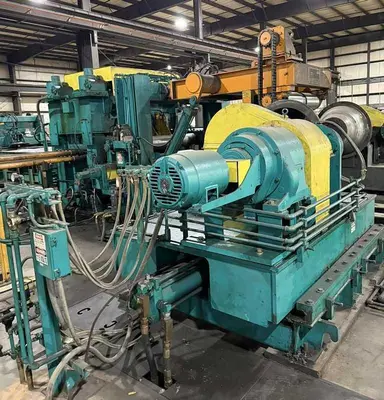

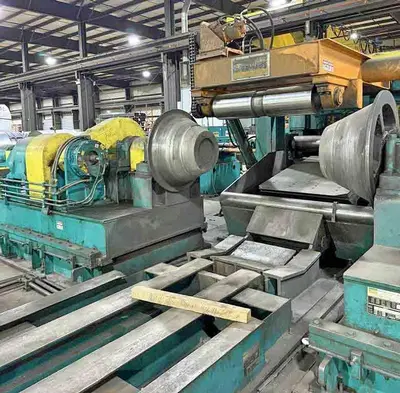

-Cone Type Uncoiler:
 Motorized Feedup AC Motor and Air Clutch on one head
 Wichita Water Cooled Brake on each head
 Sliding Base on each head
 Coil Lift with 12" Bore Hydraulic Cylinder

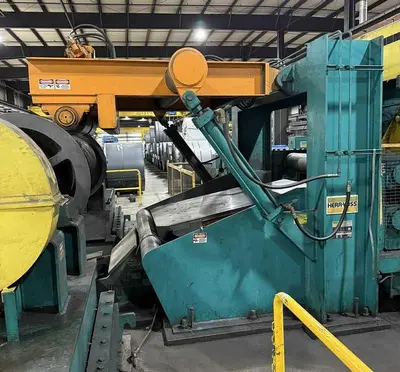

-Threading Unit:
 Motorized Overarm Holddown Roll
  Steel Roll powered by AC Motor
 Hydraulic Actuated Peeler Table
-Entry Side Guides:
 Powered Width Adjustment

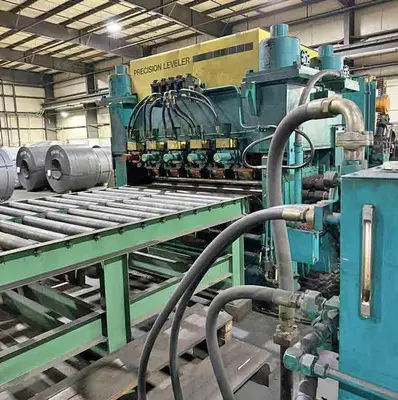

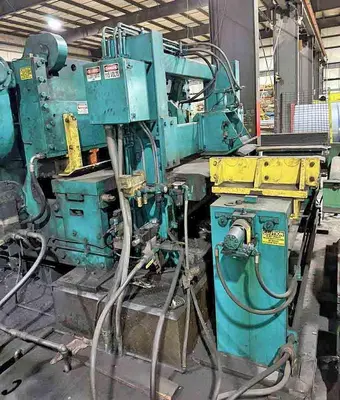

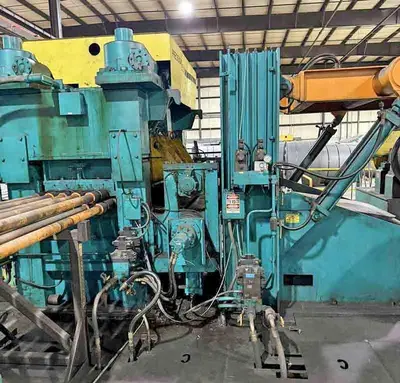

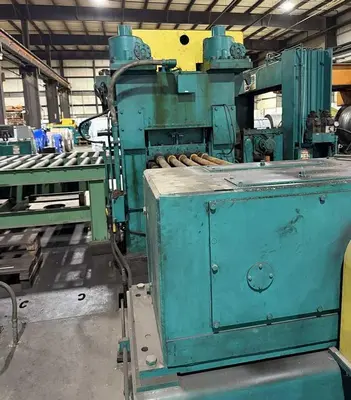

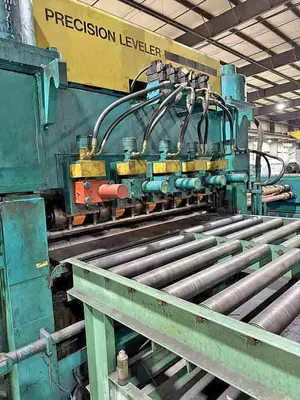

-Precision Leveler: 4 High
 Keystone Model VKL 88/4.50-11/5 4 HI, LH
 Gauge Range: 0.096" - 0.375"
 11 Work Rolls
 4.50" Dia. x 88" Face Rolls
 5 Flights of Motorized Backups
 200 HP Reliance DC Motor, 850/1700 RPM, 500 V
-Squaring Guides:
 Powered Width Adjustment
 (Will open to 80" Wide)
-Powered Tailout Pinch Rolls:
 Hydraulic Cylinder Open & Close
-Measuring Unit:
 Entry Encoder Roll

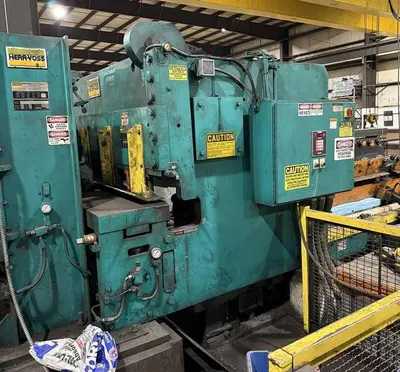

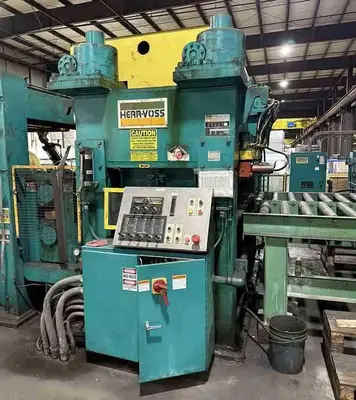

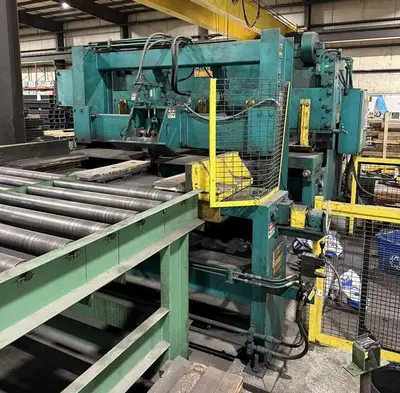

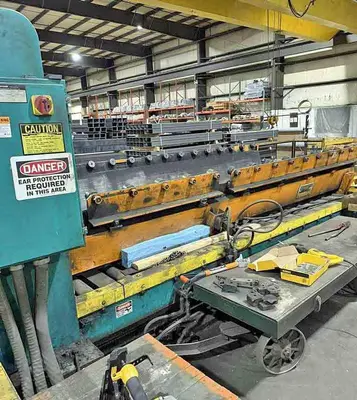

-Herr Voss Mechanical Shear:
 Blade Gap Adjustment Control
 Straight Blade Rake
 Material Holddowns
 AC Motor

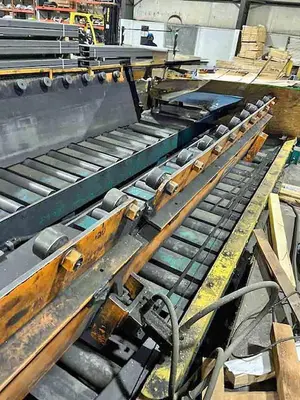

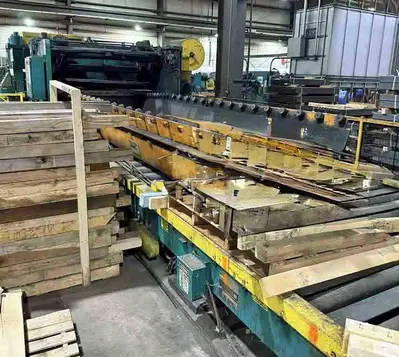

-Drop Type Stacker:
 Side Guide Retainers with Powered Side Tap
 40,000# Capacity
 Min. Sheet Length: 24"
 Max. Stacked Sheet: 24'

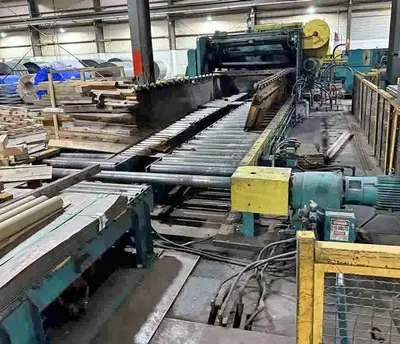

-Runout Conveyor:
 40' Long

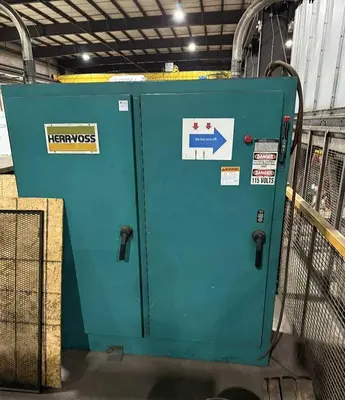

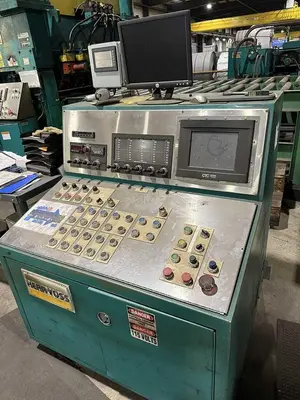

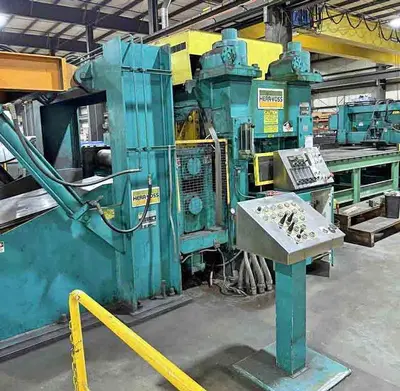

-Main Operators Control Panel:

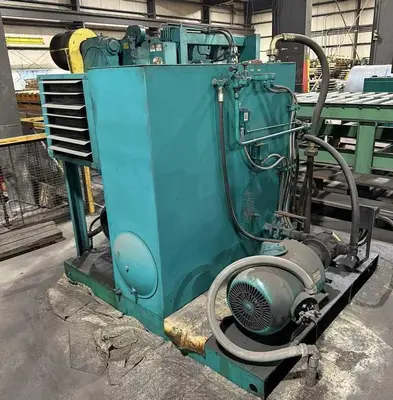

-Main Hydraulic Power Unit:
-Includes Complete Mechanical and Electrical Drawings and
 Operators Manual.
