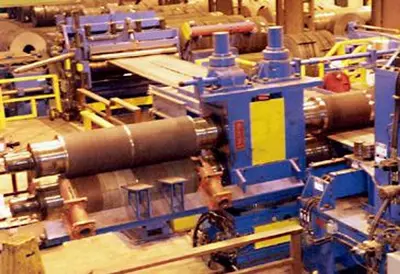

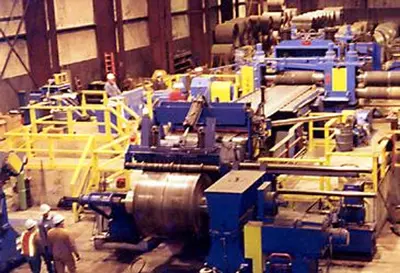

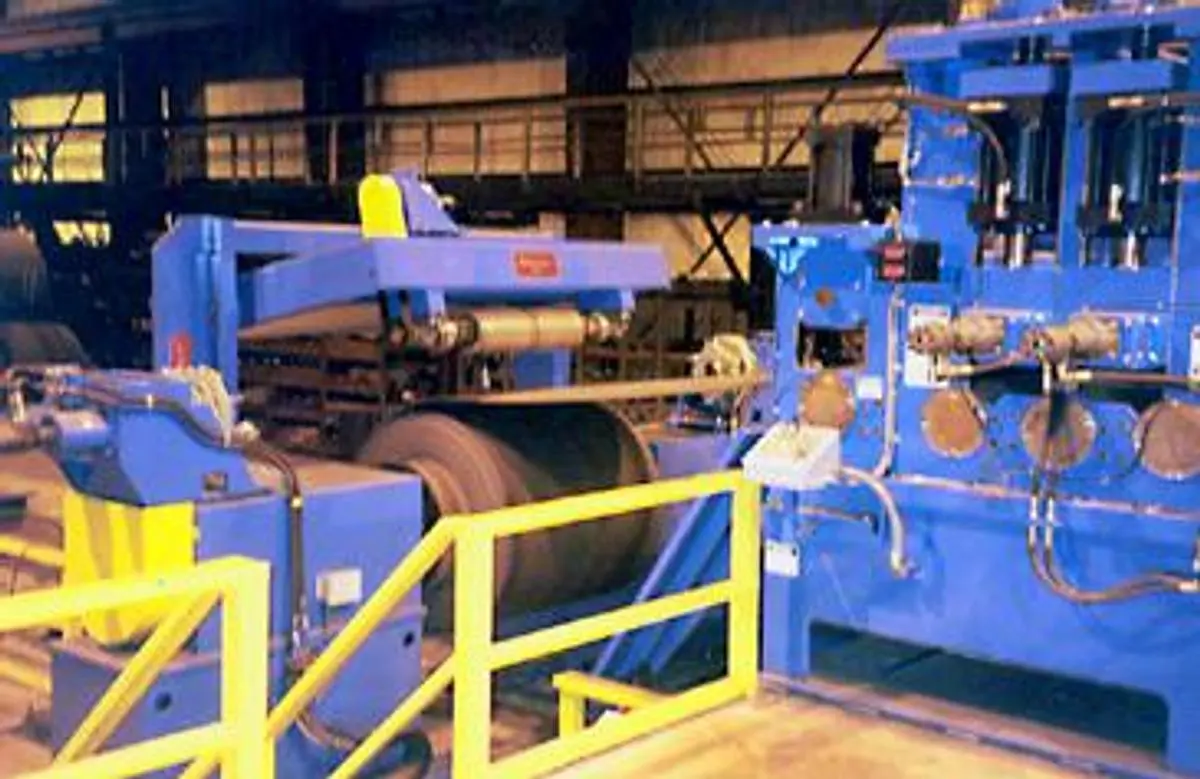

75" x .625" x 90,0000 Lbs. Braner Slitting Line

75" x .625" x 90,0000 Lbs. Braner Slitting Line

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Slitters & Slitting Lines
Manufacturer:
BRANER
Year:
2009
Stock #:
VX-35669
Description

Manufacturer: Braner
Year: 2009
Max Coil Width: 75"
Coil ID: 20" - 24"
Coil OD: 76"
Gauge Range:
Cut Capacity Chart - 90,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 3
.500 5
.375 3 9
.312 5 10
.250 8 11
.187 12 12
.150 15 15
.125 18 18
Cut Capacity Chart - 96,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 3
.500 5
.375 3 8
.312 4 9
.250 7 10
.187 12 12
.150 14 14
.125 17 17
Cut Capacity Chart - 50,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 6
.500 9
.375 7 15
.312 10 18
.250 15 20
.187 20 20
.150 20 20
.125 20 20
Cut Capacity Chart - 75,000 PSI Shear Strength Material
Strip Thickness/inches Push Pull/High Gear Push Pull/Low Gear
.625 inches 4
.500 6
.375 4 10
.312 6 13
.250 10 15
.187 17 17
.150 20 20
.125 20 20
Line Includes:
-90,000 Lbs. Three (3) Position Entry Storage Saddles
-90,000 Lbs. Pit Type Coil Loading Car
-90,000 Lbs. Dual Cone
-Free Standing Floor Mounted Hold Down With Hardened Steel Roll
-Telescoping Peeler Blade
-Hardened Steel Entry Pinch Rolls
-Hydraulic Cylinder Positioned Adjustable Side Guides
-Automatic Edge Guide
-Five (5) Roll Flattener With Quick Opening Rolls
-Entry Crop Shear Tail Feed Rolls
-Hydraulic Guillotine Downcut Entry Crop Shear
-Scrap Gate
-Powered Scrap Car
-Hydraulic Cylinder Positioned Side Guides
-Three (3) Head 14.000 Inch Arbor X 19.000 Inch OD Knife Turret Slitter 400HP DC
-Scrap Winder (Not Available as part of package )
-Pivoting Slitter Table
-Slitter / Recoiler Threading Table
-Free Standing Overarm Separator With One (1) Spindle
-One Spare Overarm Separator Spindle
-90,000 Pound 30” Recoiler 400HP DC
-Recoiler Tail Hold Downs
-90,000 Pound Floor Level Coil Unloading Car
-Coil Unloading Car Electronic Scale
-90,000 Pound Four (4) Arm Exit Storage Turnstile
-Water Recirculating System
-Hydraulic System
-Electrical System
