Specifications:
Coil Line Specifications:
Coil Material: Hot rolled P&O steel, Cold rolled steel, Galvanized steel, Pre-lubricated material single and double sided class 1 and 2 surface critical material
Line Direction: Right to Left
Passline Height: 80.00” at the leveler
Coil Weight: 75,000 lbs. maximum
Coil Inside Diameter: 21.00” – 25.00”
Coil Outside Diameter: 32.00” – 96.00”
Coil Width:
• 16.00” – 74.00” at uncoiler
• 76.00” with spacers
• 80.00” without spacers
• At crop shear: 76.00”
• At leveler: 74.00”
• At laser feeder: 84.00”
Material Thickness: 0.019” – 0.225”
Material Yield: 980 Mpa (142 KSI) maximum
Controls: Allen Bradley PLC, Unico DC Servo Drives, AIM Line Supervisor

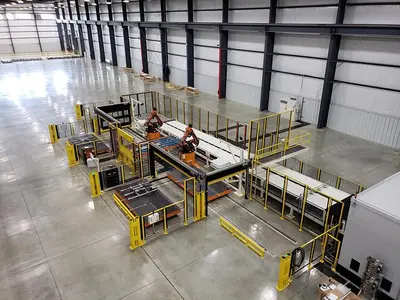

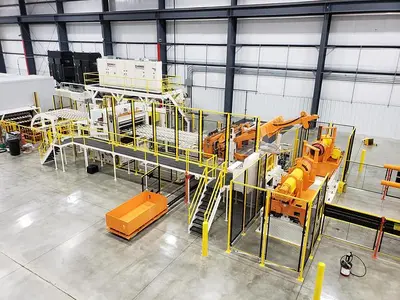

Stacker Specifications:
Stack Modes: Two station robotic, Continuous operation robotic/manual, Alternate stack robotic/manual, Two out robotic/manual, Manual stack
Blank Length: 8.00” – 168.00”
Blank Width: 16.00” – 84.00”
Stack Weight: 18,144 kgs (40,000 lbs.) max stack weight with pallet
Stack Height: 20.00” range limited by weight
