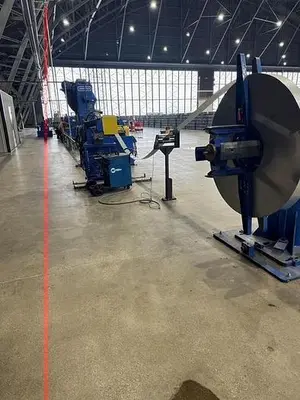

14 Gauge Rollformer for Unistrut - Used, Rebuilt

STRUT LINE TO PRODUCE 13/16”, 1-5/8” AND 3-1/4” STRUT
Including the following:

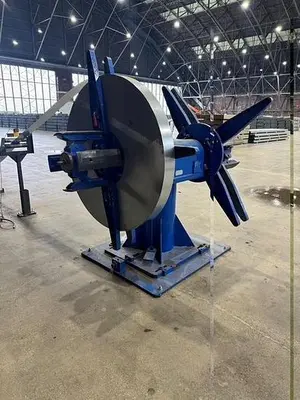

10,000# x 24" Double End Uncoiler
Model: 28AR98
Year New: 1998
Capacity Per Side: 10,000#
Coil Width: 24"
Coil ID: 18" - 25"
Coil OD: 60"
Back Plate: 24"
Manual Expansion
Reel Rotates: 360 Degree
Band Friction Brake
Adjustable Base
7 Keepers per Side
10" x .135" Guild Model #PSA-135-10 Shear End Welder
Model: PSA 135-10
Strip Width: 10"
Strip Thickness: .135"
Weld Power Supply: Miller Tig-Rig - S/N SE747336
High Frequency & Gas Coolant with Gold Star 300 SS D.C.
Power Source Input 460 Volt - 1 Phase - Cy Cycle
Output Volts: 32
Welding Range: 15" - 375"
Duty Cycle: 60% Max. Ocv 70
Maximum Gage & Strip Width: .062" x 10"
Weld Speed Variable D.C. Motor: 115 Volt
Air Foot Control Pedal For Clamping & Shearing
Angle Shearing
Airco Torch M35A

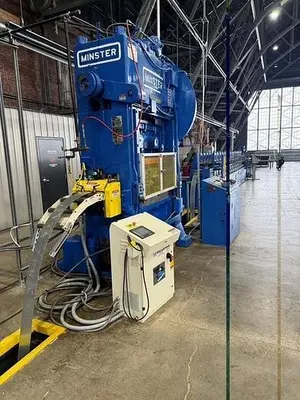

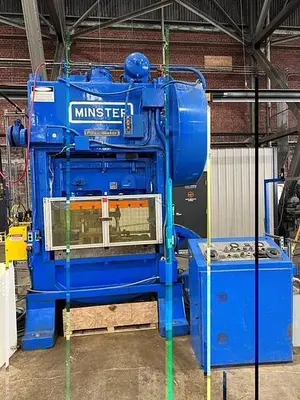

100 Ton Minster Model P2-100 SSDC Press
Model: P2-100
Area of Bed: 48" x 31"
Area of Ram: 43-1/2" x 18-1/2" x 5" T Slotted
Stroke: 4"
Stroke Per Minute: 50 - 100 SPM
Adjustment: 4"
Shut Height: 20"
Air Clutch
Air Brake
Air Counterbalance
Windows: 16"
Inch, Single & Continuous
Dual Palm Buttons
Model CPRF-S212 High Speed Servo Master High Capacity Electronic Roll Feed (New)
Maximum Stock Width: 12"
Capacity Mild Steel at Full Width: 0.250"
Maximum Feed Length: 999.999"
Roll Position Accuracy: +/- 0.002”
Roll Diameters: 4.00" (2)
Upper Roll Widths: 13"
Lower Roll Widths: 17"
Passline Height From Baseplate: 7.50"
Feed Dimensions: 32" W x 44" DP x 28" H
Control Dimensions: 20" W x 13" DP x 42" H
Voltage: 460/3/60 in WYE Configuration
Control Platform: B&R
Adjustable Mounting Bracket

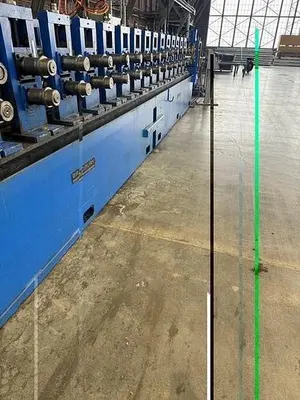

16 Stand RLM, 3.0” Rollformer
Model: 3.0
Stands: 16
Spindle Diameter: 3.0"
Rollspace: 26"
Horizontal Centers: 18"
Vertical Centers: 5-12"
Bast to Bottom Spindle: 10"
Equal Geared
Motor: 40 HP
AMS MP350HC Length Controller (New)
Model: MP Series Controller
Model: NK-1 Noise Kit
MP300 Open Loop Manual, V13
Model: 3812x-10 Power Cable
4348-10 Auxiliary Cable
Model: N256 Encoder
Encoder Cable: 3148-10
Model: KMW-12 Knurled Wheel
Encoder Bracket Kit w/ Screws
BRKT-1 Encoder Bracket
30 Ton Hydraulic Cutoff Press
Capacity: 30 Tons
Stroke: 5”
Bed: 19" x 24"
Distance Between Post: 15"
Shut Height: 13"
6 Way Base
Vertical Adjustment: 6"
Tooling
16 PR D2, Combo Rolls
4 Sets, Center Adjust Idler Stands
Inboard & Outboard Spacers
Bronze Straightener
12” Pattern Pre-Notch Die
Blade Cutoff Die w/ 3 Sets of Inserts
Pivot Crop w/1 Set of Inserts
(Includes 1 Set of Spare Punches and Cutoff Blades)
