48" x 30,000 Lb. McKay Cut to Length Line (Used)

48" x 30,000 Lb. McKay Cut to Length Line (Used)

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Cut To Length Lines
Manufacturer:
MCKAY
Stock #:
VX-2456
Description

General Specifications:
Maximum Width: 48.00"
Maximum Coil Weight: 30,000 Pounds
Maximum Sheet Length: 192"
Maximum Line Speed: 90 FPM
Maximum Bundle Weight: 10,000 Pounds
Gauge Range: .015" to .060"
Leveler Roll Diameter: 1.500"
Line Direction: Right to Left
Line Components:
1.       Progressive Floor Standing Coil Car

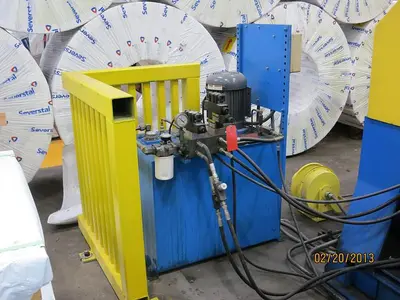

a.       Self-Contained Hydraulic Unit
2.       Progressive 30,000 Pound Uncoiler
a.       Hydraulic Expand - Collapse
b.       Pneumatic Hold Down Roll
c.       Hydraulic Jog Forward - Jog Reverse
d.       Eaton Air Brake

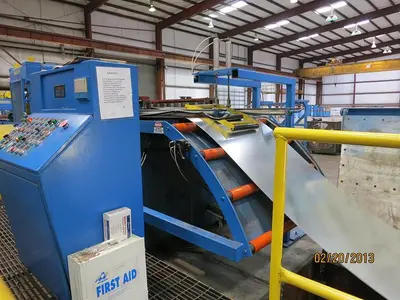

3.       Fixed Entry Peeler Table

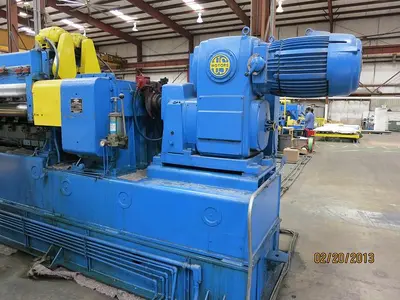

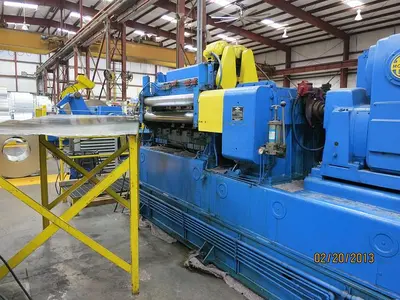

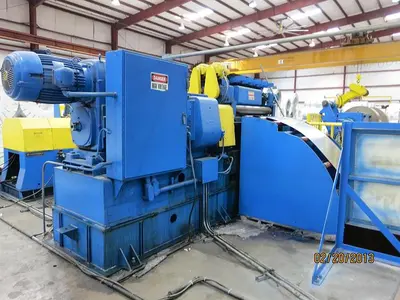

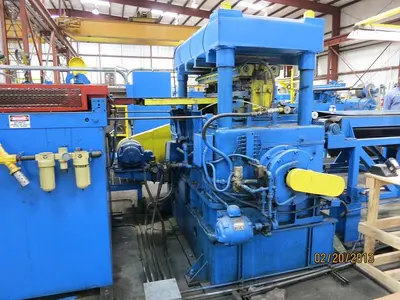

4.       McKay Leveler
a.       Four High
b.       60 HP AC US Motor Variable Speed Belt Drive
c.       Entry and Exit Pinch Rolls
5.       Entry Pit
6.       Red Bud Grip Feed
a.       36" Maximum Stroke
b.       Pneumatic Gripper
c.       Air Cylinder Feed

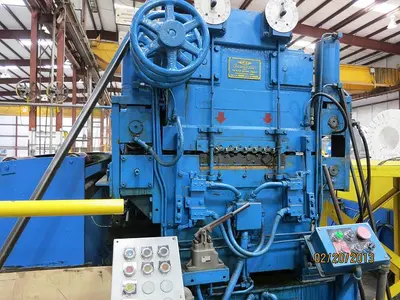

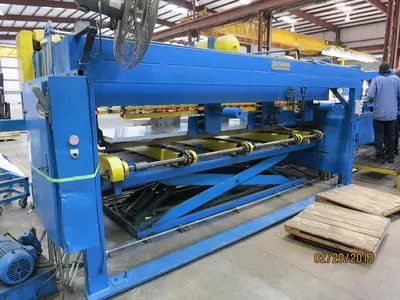

7.       McKay Shear
a.       Wichita Pneumatic Brake
b.       Wichita Pneumatic Clutch
c.       Max Cuts: 30 Per Minutes

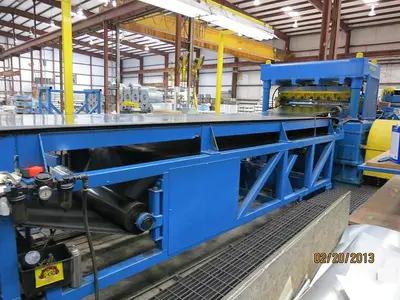

8.       Dalhstrom Belt Conveyor
a.       AC Motor Variable Speed Belt Drive
9.       Dalhstrom Drop Type Stacker
a.   Maximum Length: 192.000"
b.   Minimum Length: 24.000"

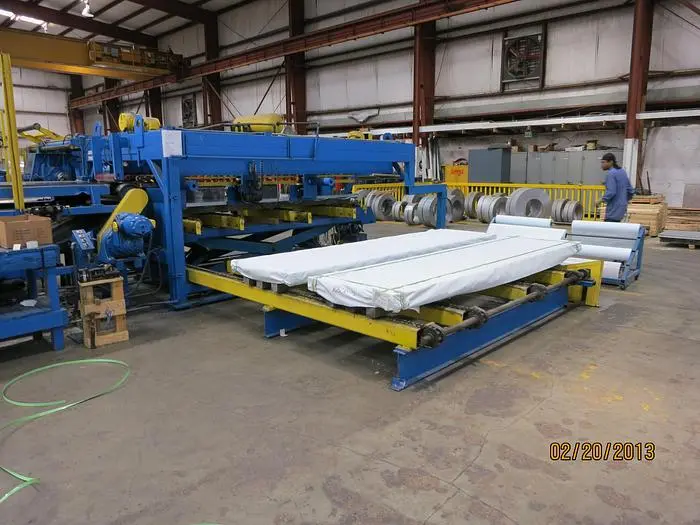

10.   McKay Scissors Stacker Table
a.   Self-Contained Hydraulic Unit
b.   Power Roll-Out Conveyor (Side Discharge)
c.    AC Motor Driven
11.   McKay Side Discharge Roll-Out Table
a.   12' Wide
b.   AC Motor Driven
