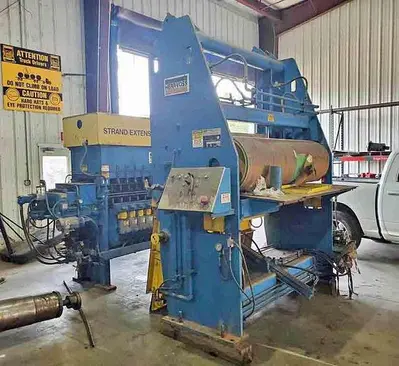

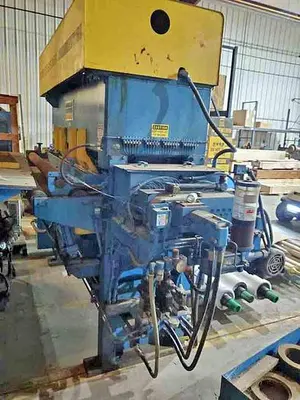

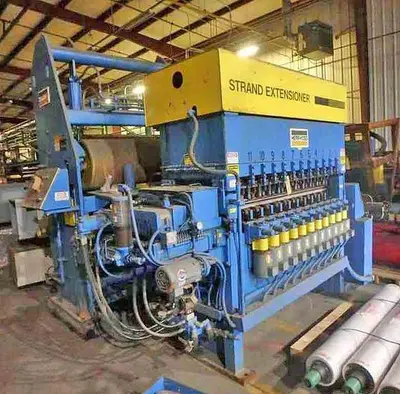

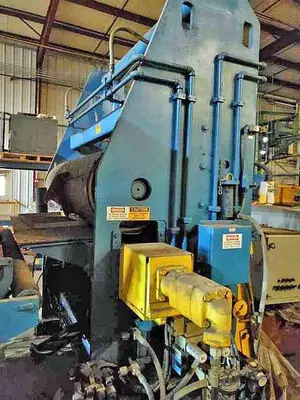

USED HERR-VOSS 72/1.156-23/5 HI / RH
Overview
Model: 72/1.156-23/5 HI / RH
Maximum Width Capacity: 62.5"
Number of Work Rolls: 23
Work Roll Configuration: 11 Over 12
Minimum Strip Thickness: .008"
Maximum Strip Thickness: .040"
Maximum Strip Thickness Depending on Recoiler HP: .076"
Maximum Line Speed: 1,500 FPM
Material Yield Strength: 12,000 - 40,000 PSI
Roll Face: 72"
Work Roll Diameter: 1.156"

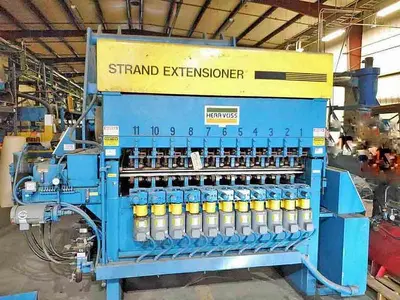

Motorized Back-Up Flights: 11
Drive: Hydraulic Motor With Pinion Box
Lubrication System: Included
Operator Panel: Joystick Controls
Passline Height: Approximately 52"
Line Direction: Right to Left

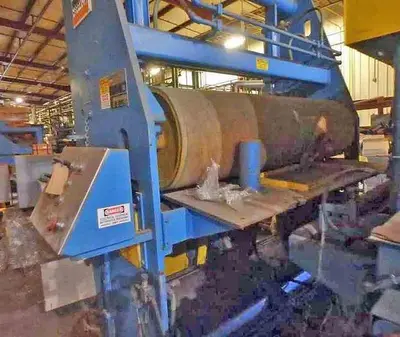

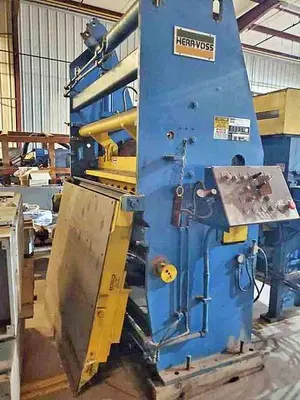

Exit Unit:
Deflector Roll: 21" Diameter x 72" Face, Polyurethane Covered
Bottom Nip Roll: 6" Diameter x 77" Face, Polyurethane Covered
Bottom Nip Roll Drive: Hydraulic Motor
Crop Shear: Hydraulic
Crop Shear Blade Length: 72"
Exit Threading Table: Included
Exit Operator Panel: Attached
Exit Unit Passline Height: Approximately 52"
Operator / Maintenance Manual
Machine Drawings
Spare Rolls
Specs
Maximum Width Capacity: 62.5"
Number of Work Rolls: 23
Work Roll Configuration: 11 Over 12
Maximum Strip Thickness: .040"
Maximum Line Speed: 1,500 FPM
Material Yield Strength: 12,000 - 40,000 PSI
Roll Face: 72"
Work Roll Diameter: 1.156"
Motorized Back-Up Flights: 11
Lubrication System: Included
Operator Panel: Joystick Controls
Passline Height: Approximately 52"
Line Direction: Right to Left
