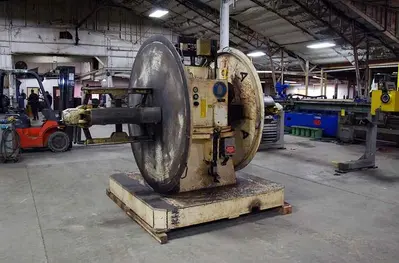

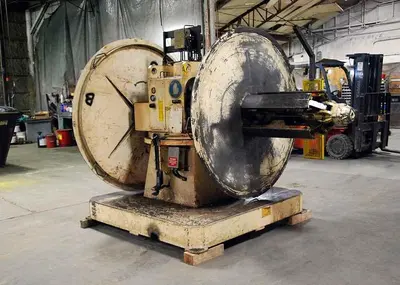

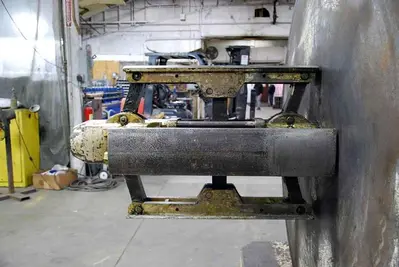

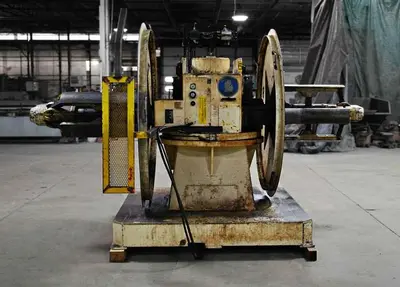

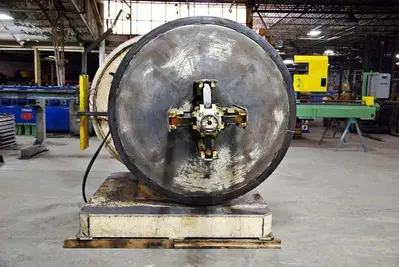

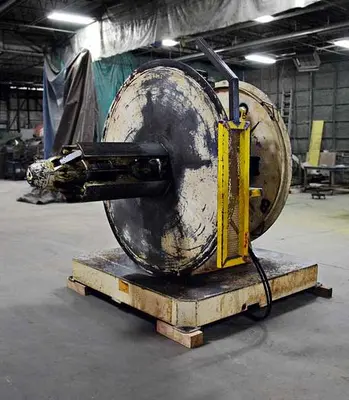

24" x 10,000 Lb. Michigan Roll Form Double Uncoiler (Used)

used

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
Used MICHIGAN ROLL FORM _UNKNOWN_ Uncoilers | VX Machinery #454632
Used

24" x 10,000 Lb. Michigan Roll Form Double Uncoiler (Used)

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

VX Machinery
493Listings|8Followers
View seller profile
Overview
Uncoilers
MICHIGAN ROLL FORM

The 24" x 10,000 lb. Michigan Roll Form Double Uncoiler is a reliable piece of used equipment suitable for handling substantial coils. Built by Michigan Roll Form, it is model DHCH-98B, and boasts a coil weight capacity of 10,000 lbs. per side. It accommodates maximum coil diameters up to 72" and widths up to 24", while the coil inner diameter can range from 16" to 20". This non-motorized unit comes with manual rotation and a pin lock mechanism.
Equipped features include a 4-arm hydraulic expansion for efficient coil handling and air brakes for control. The uncoiler also includes back plates, contributing to its stability and performance. It's important to note that the controls are missing, which may require attention to operational setup. The machine stands at 11' long, 8' wide, and 7' high, with an approximate weight of 11,500 lbs.
This equipment is ideal for companies dealing with large coil operations, offering both reliability and robust build quality, though prospective buyers should consider the control system requirement.

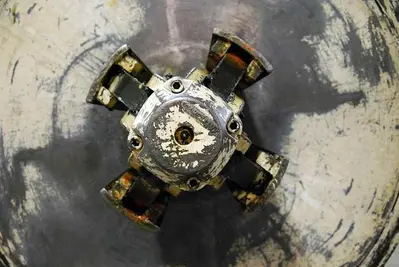

4-Arm Hydraulic Expansion
Air Brakes
Manual Rotation With Pin Lock
Back Plates
Note:
Controls Missing

Specs

Coil Weight Capacity: 10,000 Lbs. Per Side
Maximum Coil O.D.: 72"
Maximum Coil Width: 24"
Coil I.D. Range: 16" - 20"
Approximate Weight: 11,500 Lbs.
Overall Dimensions: 11' L x 8' W x 7' H
