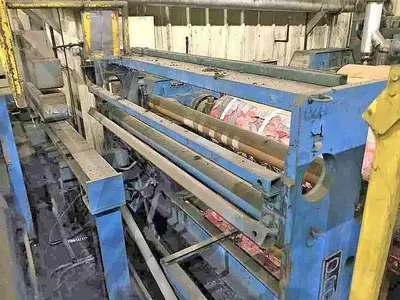

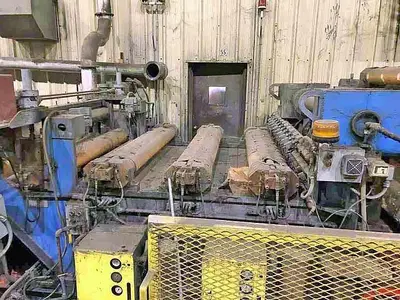

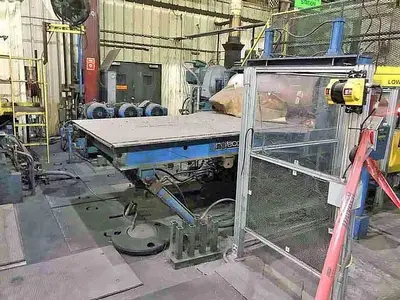

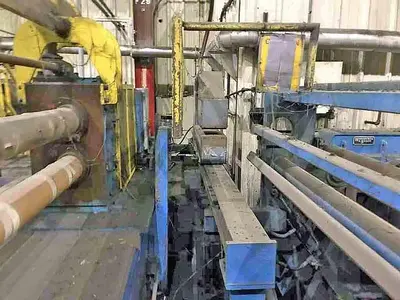

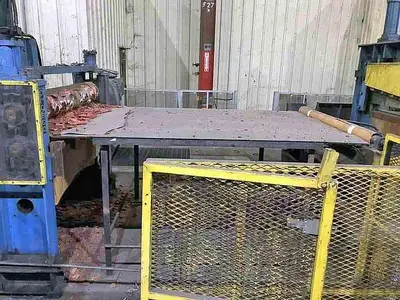

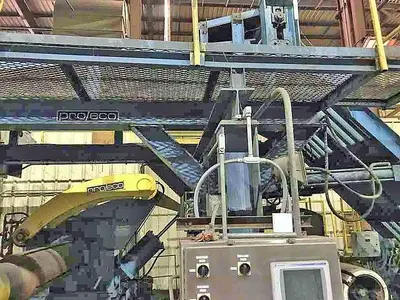

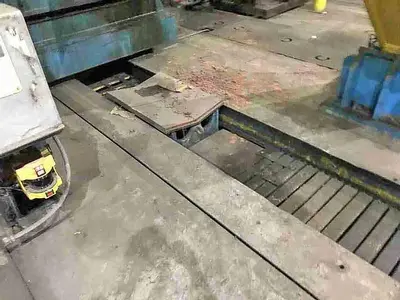

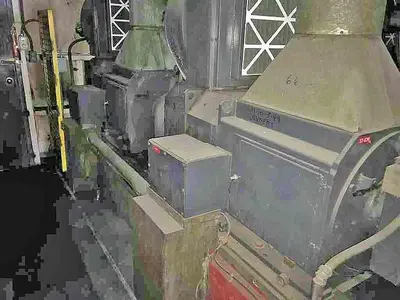

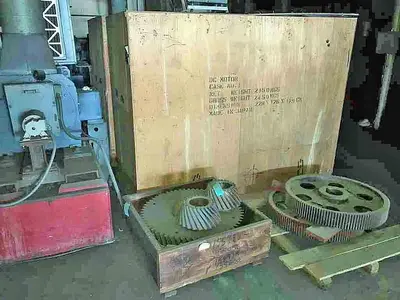

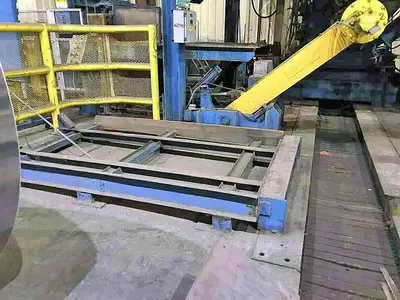

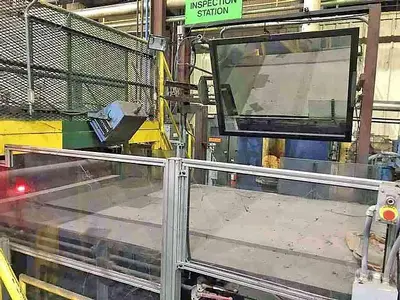

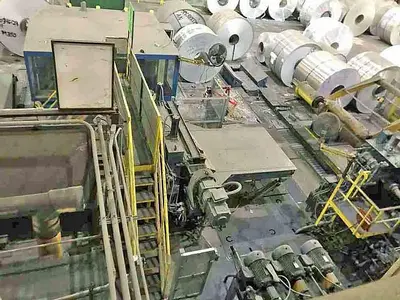

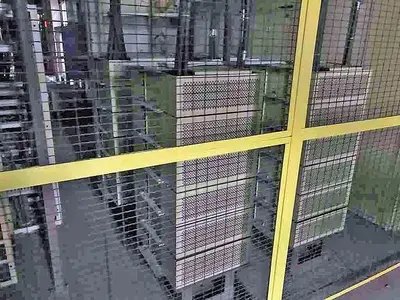

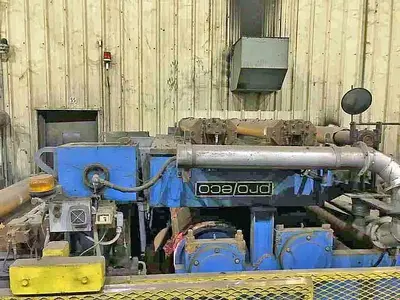

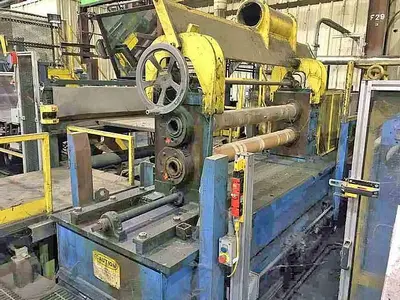

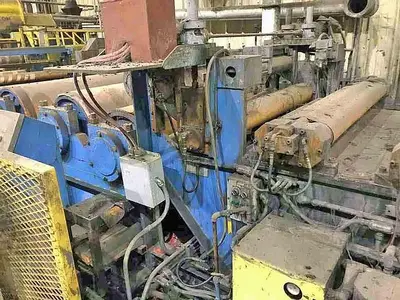

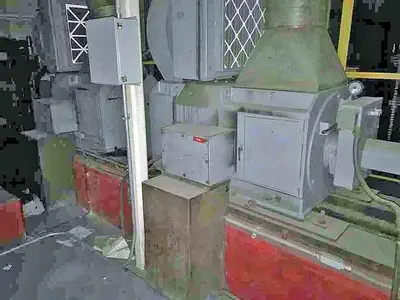

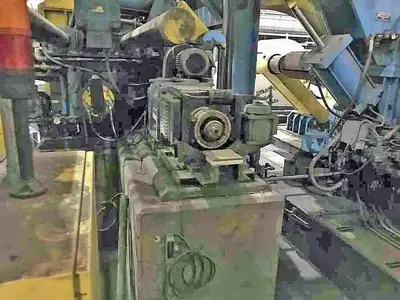

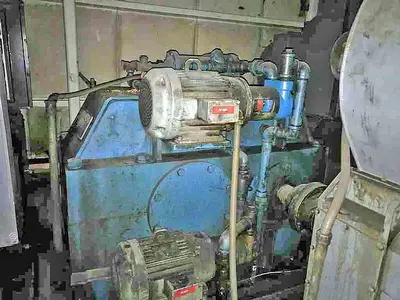

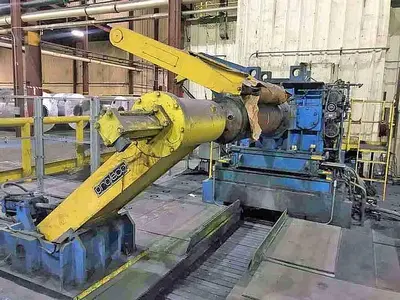

62" Pro Eco Aluminum Tension Leveling Line (Used)

Description:
Manufacture:
• Pro Eco

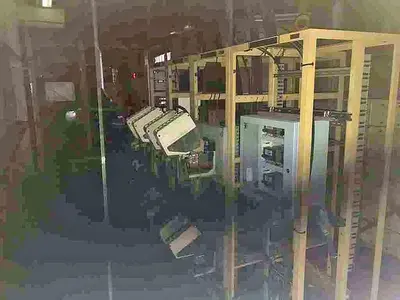

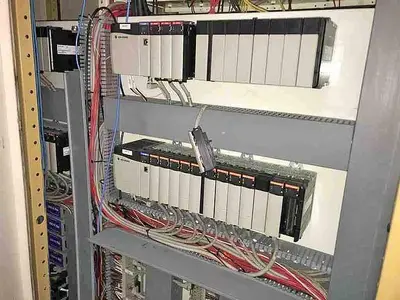

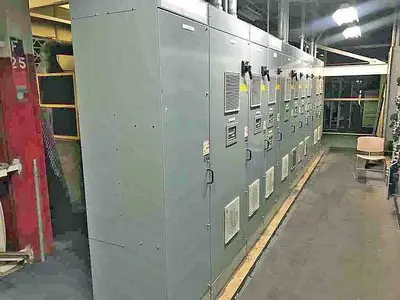

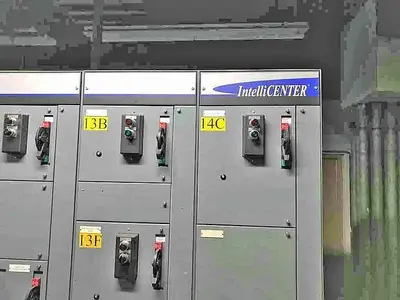

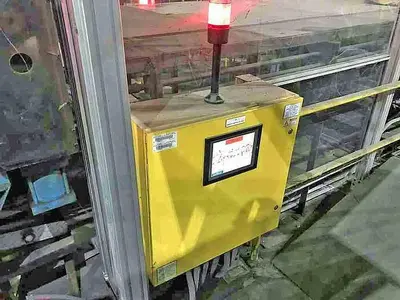

• New controls in 2007
• Line shut down in 2009

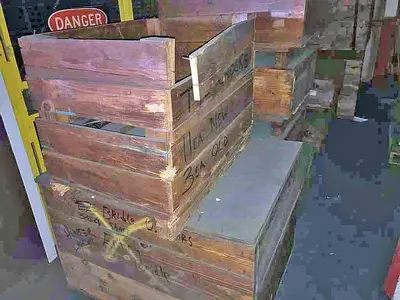

• No parts have been cannibalized - complete line
Materials:
• Aluminum Alloys
Strip Width
• Width before slit = Min: 29" / Max: 64.75"
• Width after slit = Min: 28" / Max: 62.5"
Strip Thickness
• Min: 0.006" / Max: 0.063"
Incoming Coil Sizes:
• OD = Min: 36" / Max: 103"
• Weight = Min: 2,448 lbs / Max: 50,000 lbs
Width Tolerances: (1/2 of commercial tolerance (+/-) (STD Capability):
• Over 24” thru 48” 0.02344”
• Over 48” thru 60“ 0.03125”
• Over 60” = 0.06250”
Slitting Capacity:
• Single slit width = Min: 28" / Max: 62.5"
• Single slit gauge range = Min: 0.006" / Max: 0.063"
Side Trim Width Capability:
• Min: .50" / Max: 2.25"

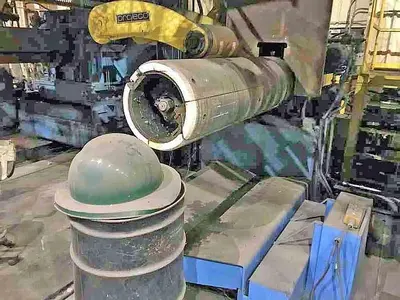

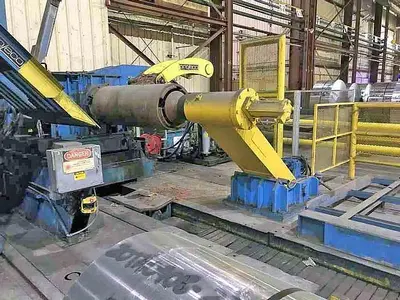

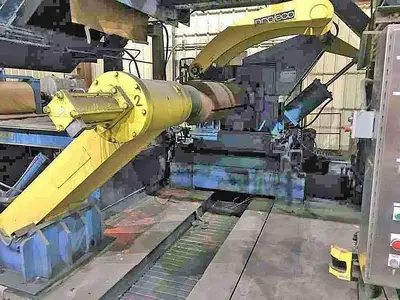

Uncoiler Mandrel Size:
• 16" (+1.25" / - 2.00")
• 20/24" (+ 0.5" / - 5.5")
Recoiler Mandrel Size:
• 16" ( + 0.0 / - 0.75")
• 20/24" (+/- 0.5")
Line Speed:
• 0 - 2,000 fpm
Tension Capabilities:
• 1% elongation on 58,000 lb. yield at maximum width of 62.5” and minimum gauge of 0.006”
