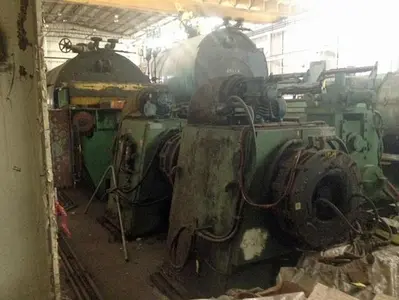

Main Housings:
These housings are of welded steel construction incorporating all necessary ribbing for strength of structure.
Shaft and Bearings:
The main alloy steel shaft are supported in grease lubricated anti-friction bearings.

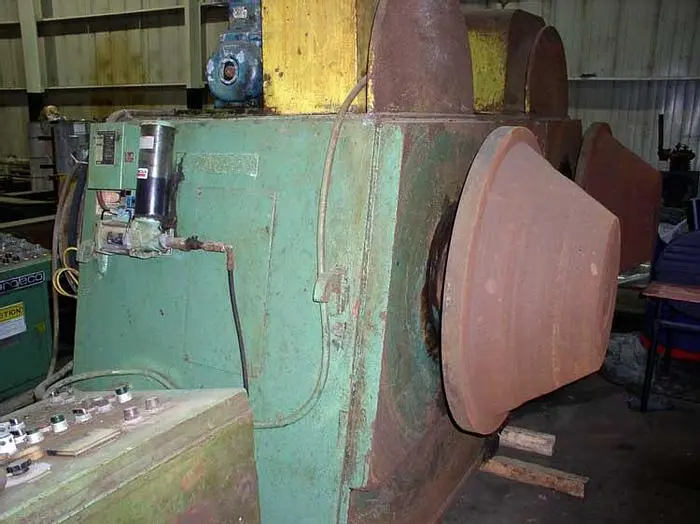

Mandrels (Drums):
This unit incorporates hardened cone type drums with the necessary surface area to accommodate the coil I.D.'s indicated. The cones will be in three replaceable sections. A chain slot will be provided on each cone.

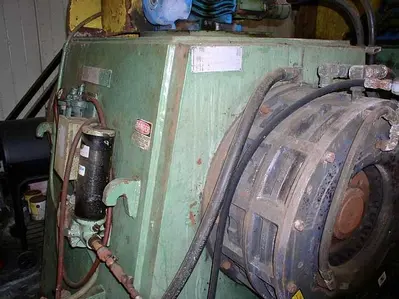

Drag Brakes:
Back tension is obtained by means of water cooled pneumatic drag brakes, complete with pressure regulated valving.

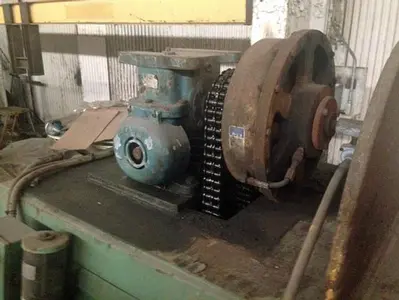

Feed-Up Drive:
The mandrels of the housings are driven for feed-up via gear reducers and pneumatic clutches. These drives are reversible.
Lateral Adjustment:
Each housing is mounted on the machined bronze ways of a steel sub-base, and is laterally adjusted for coil loading and centering by means of hydraulic cylinders.
Hydraulic Power:
Hydraulic power is supplied by the line hydraulic power unit.
Piping and Wiring:
Machine is completely pre-wired and piped.
Width: 80"
Weight capacity: 80,000 Lbs.
Coil o.d. maximum: 84" with clearance for 96" Sprung Coils
Coil i.d.: 16"-30"
Type of brakes: Water Cooled Pneumatic
Feed-up drive: Hydraulic Motor
Lateral adjustment: Hydraulic Cylinders
