Overview
Type:
Recoilers
Manufacturer:
STAMCO
Stock #:
VX-7132
Description

Capacity: Herr-Voss Rebuilt with a 9" Shaft - Recoiler can hold 30,000 Lbs.
Hydraulic Slide Base
Attached Hydraulic Holddown Roll
16" to 20" Coil I.D.
Hydraulic Expansion (Less Cylinder)
54" Face
49-1/2" Maximum Width
16" Arbor Diameter Drum Installed

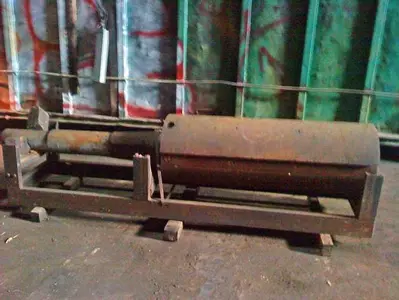

20" Arbor Diameter Spare Drum
300 FPM Maximum Speed
40 HP, 650/2300 RPM Reliance DC Motor
5 HP, 1740 RPM, 10 Amp Motor (Runs Hydraulics & Snubber Rolls )
Hydraulic Push Off
Recirculating Gearbox Lube Pump

Specifications

Gauge range: .012" to .050"
Line direction: Left to Right
Overall dimensions: 20 Ft. Wide x 8 Ft. Front to Back x 5 Ft. Tall
Estimated weight: 25,000 Lbs.
