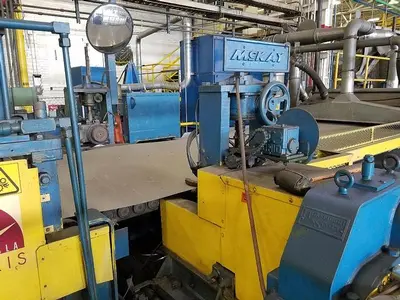

Line Includes:

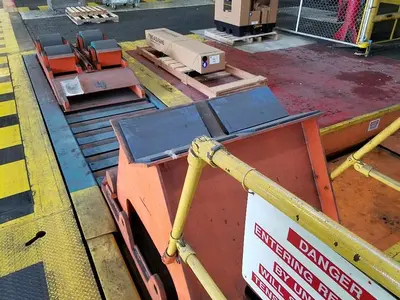

Coil Car
Pit type

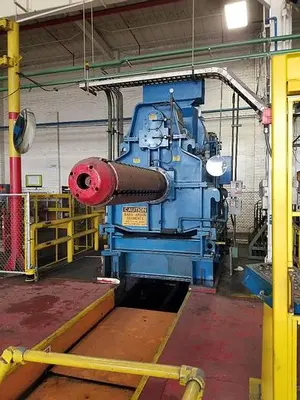

Uncoiler
72" wide x 20" ID Drum
50,000 lbs
Slide base
50kw drag generator
Pinch Roll

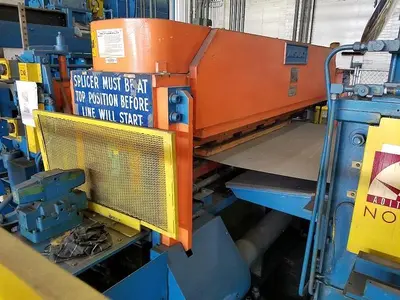

Entry Shear
Entry Stitcher
Side Trimmer
w/ Scarp Baller
Pinch Roll
Entry Bridle Rolls
66" wide x 42" diameter

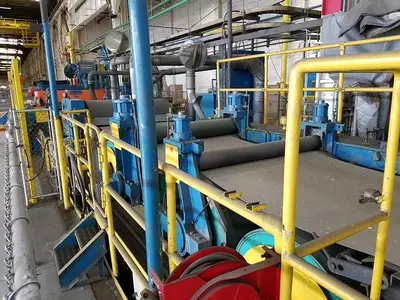

Tension Leveler Section
1.5" Diameter Work Rolls
w/ Clam Shell opening for cleaning and roll change
Exit Bridle
66" wide x 42" diameter
Integrated Gearbox with PIV Unit for Dirving Bridle Rolls
w/ 300 HP, 850/1775 RPM, Volts 280 Reliance DC Motor
Exit Pinch Rolls
Inspection Table
Exit Shear
Exit Passline Roll

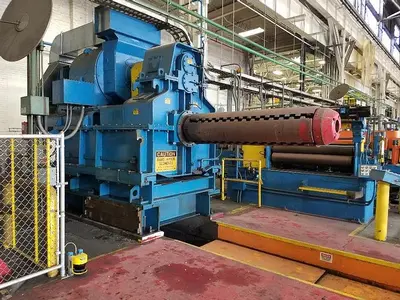

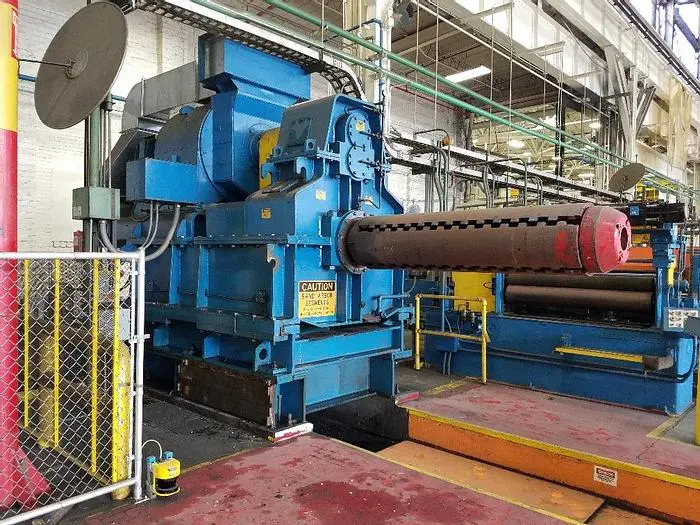

Recoiler
66" wide x 20" ID
50,000 Lbs
Sliding Base
100 HP DC Motor
Exit Coil Car
Pit Type
Width capacity: 66"
Gauge range: .015"-.062"
Weight capacity: 50,000 Lbs
Line direction: Left to Right
