Overview
Type:
Levelers
Manufacturer:
BUTECH
Year:
2002
Stock #:
VX-10190
Description

(2) 250 HP DC Motors

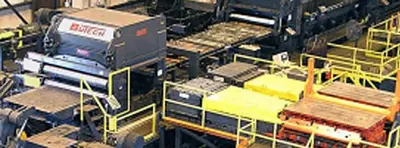

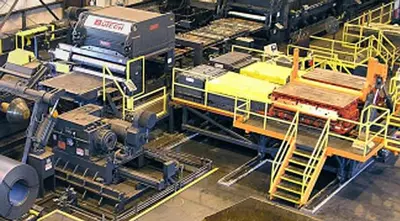

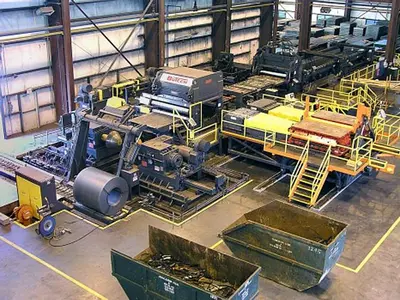

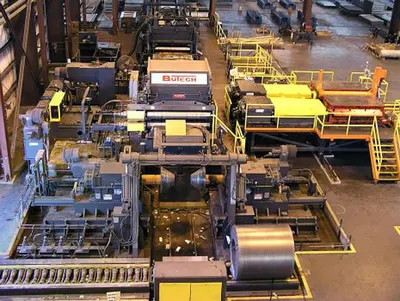

Butech Precision Roller Leveler with Quick Change
Roll Nest Cassettes and Floor Mounted Injector System
(11) Roll Heavy Gage Cassette Specifications:
Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face
Work Roll Quantity: 11, 5 up, 6 down
Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .125"-.500"
(17) Roll Light Gauge Cassette Specifications:
Work Roll Quantity: 17, 8 up, 9 down
Work Roll Size: 2.750" (70 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: 0.200" max., .060" min.

Specifications

Material: HR, HRHS, HRPO
Yield strength: 85,000 PSI max.
Strip thickness: .500 " maximum, .060" minimum
Strip width: 72" max., 24" min.
Line speed: 0 to 326 or 400 FPM max. as determined with customer
Uncoiler type: Overwind
Pass line height: To match existing line
Line direction: Left to Right
Guide reference: Centerline
Pinch roll size: 10" (254 mm) dia. x 80" (2030 mm) face
Work roll quantity: 11, 5 up, 6 down
Work roll size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back up flights: 7 top and bottom
Strip thickness range: .500" maximum, .125" minimum
