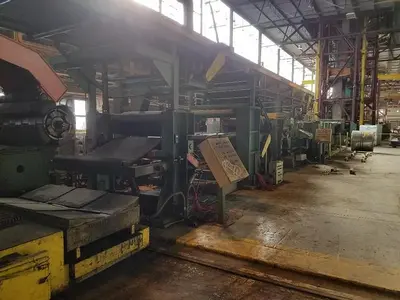

48" SMS Galvanizing Line (Used)

This used 48" SMS galvanizing line with a Comstock Furnace is capable of handling a width range from 24" to 48" and a gauge range of .008" to .040". The line can apply coating thicknesses from G30 to G90. It was operational until 2012 and offers a coil weight capacity of 47,000 lbs. with a line speed of 350 feet per minute.
The line includes comprehensive components such as uncoilers with coil cars, control and pinch rolls, a welder, scrubbers, and dryers. Additionally, it is equipped with a vertical furnace and cooling section, Ajax galvanizing pot, and Kohler air knives. Handling elements like steering rolls, deflector rolls, bridles, tachometer, and coating weight gauge ensure efficient operation.
Other features include a tension leveler, 2-Hi mill, chromate spray, inspection station, and recoiler with belt wrapper. With its robust structure, this line offers reliable performance for galvanizing operations, making it a valuable asset for industrial applications.

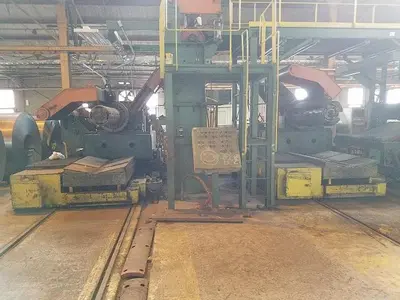

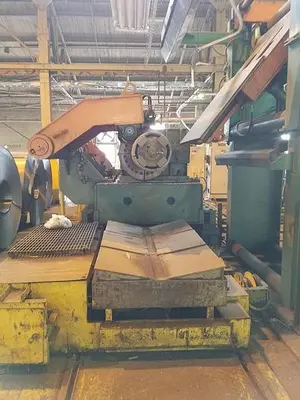

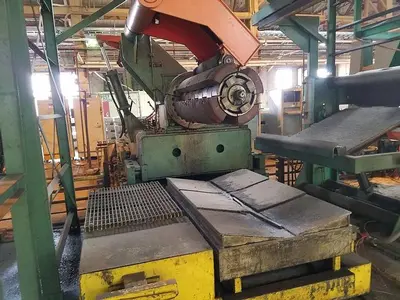

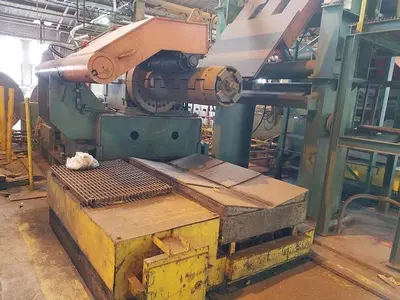

#1 Uncoiler With Coil Car
#1 Center Control & Pinch Roll
#2 Uncoiler With Coil Car
#2 Center Control & Pinch Roll
Pinch Roll & Shear

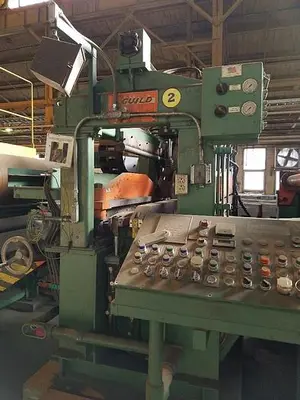

Welder
Brush Scrubber
Rinse Section
Dryer
#1 Bridle
#1 Steering Roll
Entry Accumulator & Structure
#2 Steering Roll
Deflector Roll
#2 Bridle
Tachometer

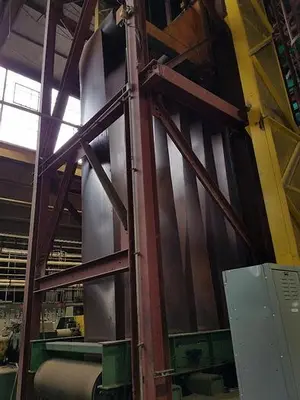

Vertical Furnace & Cooling Section
Ajax Galvanizing Pot
Kohler Air Knives
#1 Turn Roll
#2 Jet Cool
#3 Jet Cool
#2 Turn Roll
Water & Quench Section
Dryer
#3 Steering Roll
Deflector Roll
Coating Weight Gauge
#3 Bridle
2-Hi Mill
Tension Leveler
Chromate Spray
Dryer
#4 Bridle
#4 Steering Roll
Exit Accumulator & Structure
Deflector Roll
Inspection Station
Oiler
Deflector Roll
Recoiler & Belt Wrapper
