Overview
Type:
Cut To Length Lines
Stock #:
VX-2370
Description

Thickness Range: 0.090" - 0.375" (light gauge is approx.)
Coil I.D.: 20" - 24"
Stacker Length: 2' - 10'
Line Speed: 0 - 160 FPM
Consisting of the following:

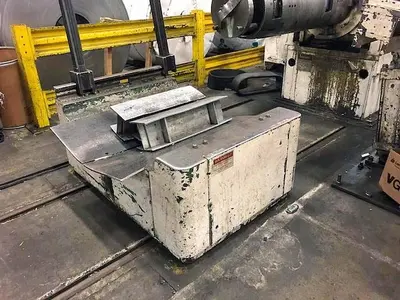

30,000 Lbs. Capacity
Model BGY-30
44" Bed Width
60" O.D. Capacity
Floor Mounted
Power Lift and Traverse
Cable Reel
Approx. 24" from Floor to bottom of "V" Cradle
3,600 Lbs.
New in the 2000's

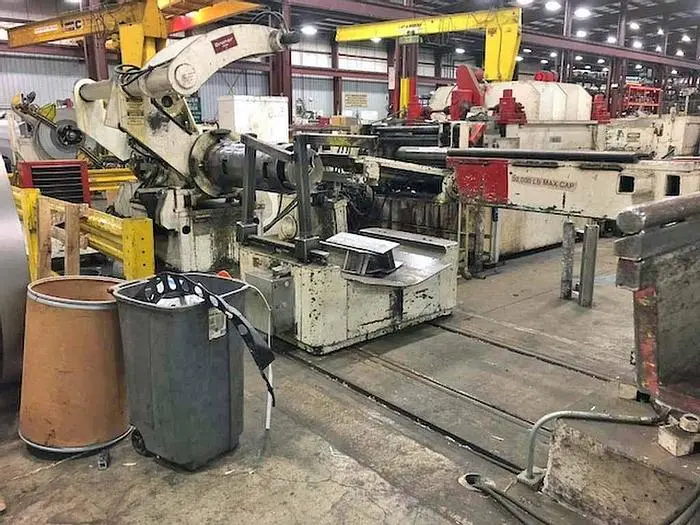

40,000 Lbs. Capacity
Mandrel Type
49" Face Mandrel
Hydraulic Expansion, 20" - 24" I.D.
Pumpkin Tooth Mandrel
Holddown with Powered Snubber, 24" W x 9" Dia. Steel Roll
Water Cooled Brake
Hyd. Motor Feedup Drive
Traversing Base
Overall Size: 150" L x 78" W x 89" High
20,000 Lbs
Water Cooler for Water Cooled Brake:
Overall Size: 43" L x 40" Wide x 51" High

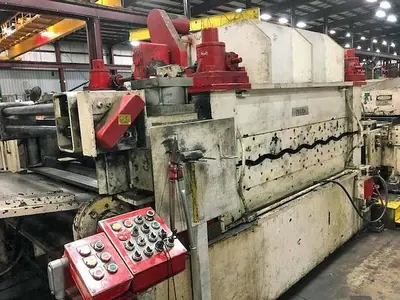

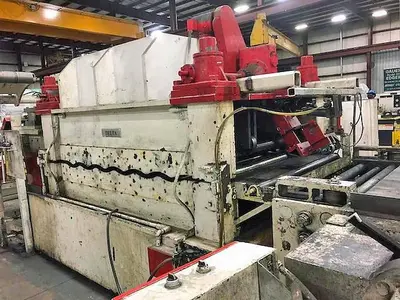

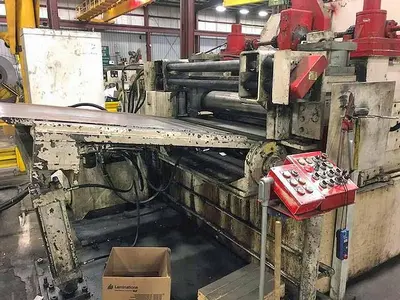

48" x 0.375" Capacity (Mild Steel)
Extending Blade Peeler
Powered Side Guides
Powered Entry Pinch Rolls (9" Diameter)
Thirteen (13) Work Rolls in a 6 over 7 Configuration
6" Dia. x 54" Face Rolls
One (1) Flight of Fixed Backup Rolls

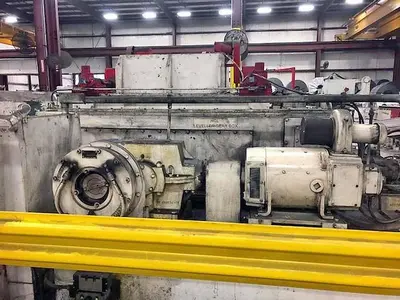

100 HP DC Motor, 1750/2000 RPM, 500 V
Reducer Rated at 116 HP @ 1750 RPM in, w/17.23:1 Ratio.
Measuring Wheel
Spare Rolls (need to be reground)
Spare Bearings
Model #638
Entry Side Guides, Hydraulic Motor Adjusted
Guides open to 52.5" Max. Width

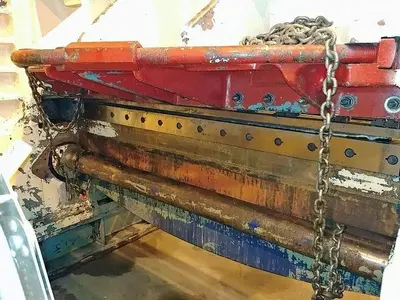

Downcut Type
73" Long Single Rake Blade
50 SPM
Wichita Clutch and Brake
20/15 HP AC Motor, 1760 RPM, 230/460 V
Passline: 45.5"
Overall Size: 192" L x 88" W x 76" High
31,000 Lbs.
Runout Table:
11'8" Long Powered Belt
47" Wide Belt
AC Motor Drive

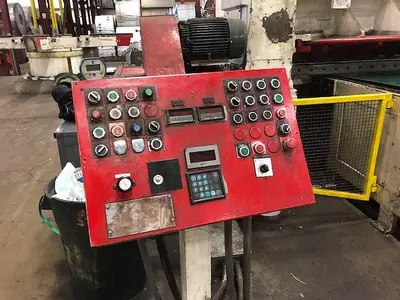

Operators Controls:
Main Control Console
Aux. Control Consoles

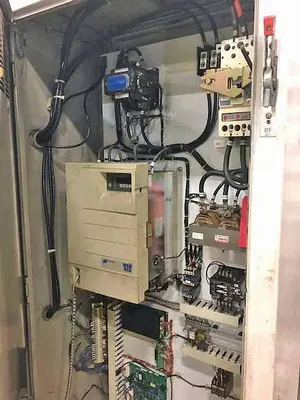

AC/DC Control Cabinet:
Magnetek DSD412 DC Drive (New in the 2000's)
Digital Measuring System
Hydraulic Power Unit:
15 HP AC Motor, 1760 RPM, 230/460 V
Overall Size: 39" L x 32" W x 52" High

Specifications

Material width: 48"
Max. shear: 50,000 PSI
Max. yield: 50,000 PSI
Max. coil weight: 40,000 Lbs.
Max. coil o.d.: 72"
Line direction: Left to Right
Mode of operation: Start / Stop
Passline (approx.): 46"
Dimensions (approx.): 45' x 60'
Entry coil car: Rowe
Overall size: 76" L x 60" W x 38" High
Uncoiler: Braner
Passline: 50" from Floor to center of Mandrel
Flattener: Delta
Shear: Wysong
Capacity: 72" x 0.375" Mild Steel
