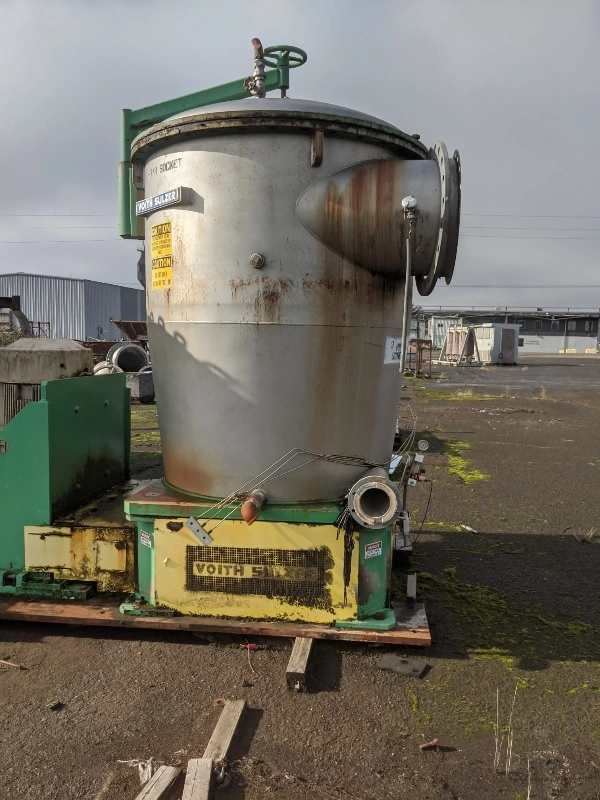

Used Voith 35VS Pressure Screen
Application: High-efficiency approach-flow pressure screen equipped with a MultiFoil rotor, designed for tissue applications and suitable for fine paper and board stock preparation.
Rotor: MultiFoil low-pulsation rotor
Basket: 0.010" (≈0.25 mm) wedge-wire fine slot basket
Motor: 150 HP (≈112 kW), 890 RPM
Includes: Motor base and standard sole plates
Design: Robust stainless construction for continuous mill operation
Condition: Unit appears complete and in solid condition, supplied with motor and mounting assembly
Approximate Dimensions:
Overall size: ~7 ft W × 7 ft L × 11.5 ft H (≈2.1 m × 2.1 m × 3.5 m)
Nozzle connections: 24" (610 mm) inlet, 24" (610 mm) accepts, 6" (150 mm) rejects
Capacity Estimate:
Handles approximately 1,000–2,500 gpm at ~0.6–1.0% consistency, equating to roughly 55–135 t/d OD feed, depending on furnish, operating point, and dilution strategy.
