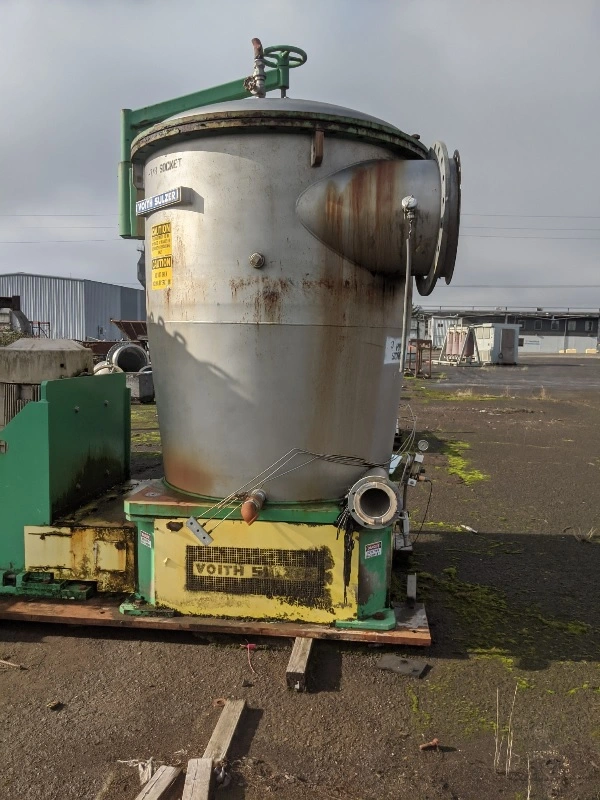

Used Voith Model 35VS Pressure Screen
Application: Approach-flow fine pressure screen equipped with a MultiFoil high-efficiency rotor. Well-suited for tissue production and also applicable for fine paper and board grades.
Rotor: MultiFoil rotor
Basket: 0.010" (≈0.25 mm) wedge-wire
Motor: 150 HP (≈112 kW), 890 RPM
Includes: Standard sole plates and motor base
Construction: Heavy-duty design for continuous industrial operation
Condition: Appears to be in good overall condition; complete with motor and mounting hardware
Approximate Size:
Dimensions: ~7 ft W × 7 ft L × 11.5 ft H (≈2.1 m × 2.1 m × 3.5 m)
Nozzles: 24" (610 mm) feed, 24" (610 mm) accepts, 6" (150 mm) rejects
Capacity (approximate):
1,000–2,500 gpm at ~0.6–1.0% feed consistency, corresponding to roughly 55–135 t/d OD feed, depending on furnish and dilution.
