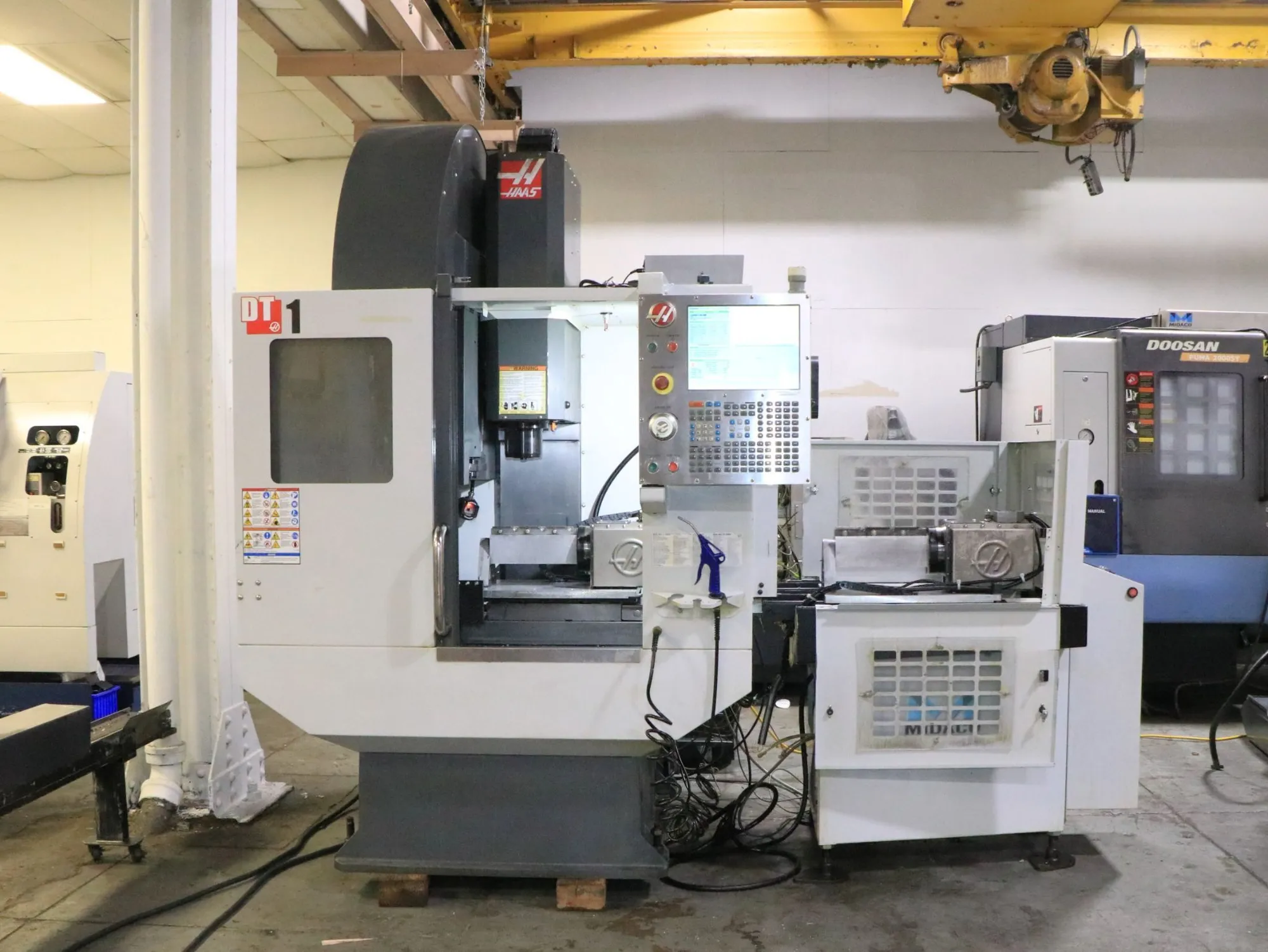

2013 Haas DT-1 Vertical Machining Center with dual pallet changer and (2) rotary tables and independent controllers. Features: 20" x-axis, 16" y-axis, 15.5" z-axis, 12,000 RPM, BT30 taper, 15 hp motor. Includes coolant system, dual chip augers, and more.
| TABLE LENGTH | 26" | 660.4 mm |
| TABLE WIDTH | 15" | 381 mm |
| TABLE CAPACITY | 250 lb | 113.4 kg |
| X-AXIS TRAVEL | 20" | 508 mm |
| Y-AXIS TRAVEL | 16" | 406.4 mm |
| Z-AXIS TRAVEL | 15.5" | 393.7 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE MOTOR | 15 hp | 11.2 kW |
| SPINDLE TAPER | BT 30 | BT 30 |
| TOOL CAPACITY (ATC) | 20 | 20 |
| RAPID TRAVERSE - X AXIS | 2,400 in/min. | 61 m/min. |
| RAPID TRAVERSE - Z-AXIS | 2,400 in/min. | 61 m/min. |
| CUTTING FEEDRATE | 1200 ipm | |
| ROTARY OR TRUNNION | Yes | Yes |
| APPROX MACHINE DIMENSIONS | 107"W x 124"L W/COOLANT TANK X 103" H | 107"W x 124"L W/COOLANT TANK X 103" H |
ADT-1SD MIDACO AUTOMATIC DUAL PALLET CHANGER (MIDACO 16SDS)
(2) HAAS HRT-160SP ROTARY TABLES, WITH INDEPENDENT CONTROLS
(2) HAAS TOOLING BLOCK SYSTEMS (12" X 4") INCLUDES "A-FRAME" SUPPORT
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
** PROBE TOOL AND TOUCH SETTER REQUIRED (NOT INCLUDED)
SIDE-MOUNT TOOL CHANGER, 20 POSITION
12,000 RPM SPINDLE
USB PORT
COOLANT SYSTEM
CHIP AUGERS, DUAL SYSTEM FOR REAR EXIT
INTUITIVE PROGRAMMING SYSTEM (IPS), QUICK CODE, DNC, ADVANCED TOOL MANAGEMENT
RIGID TAPPING
MACROS
** AVAILABLE FOR IMMEDIATE PURCHASE & REMOVAL
REPLACEMENT COSTS FOR ABOVE EQUIPPED MACHINE IF PURCHASED NEW TODAY: $160,000
AVAILABLE FROM SAME SHOP:
* ADDITIONAL DUAL PALLET DT-1, 2-ROTARY TABLE MACHINE
* (2) DT-1 WITH TRUNNION ROTARY TABLE
