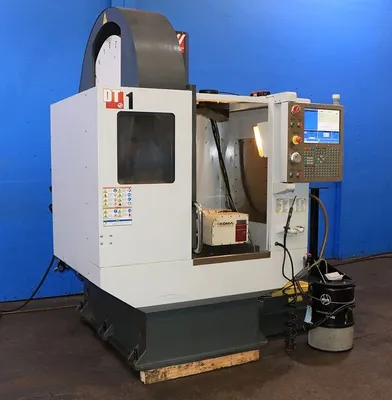

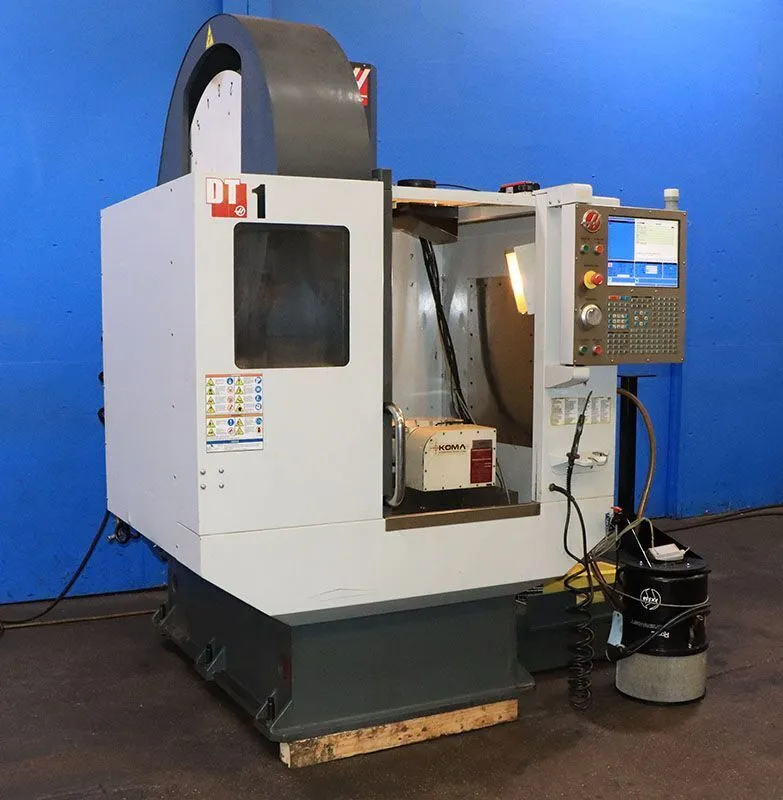

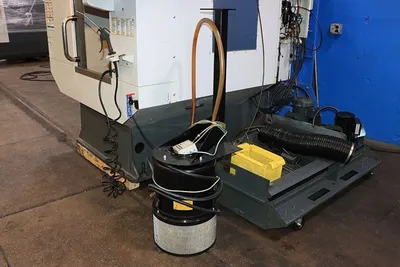

2014 Haas DT-1 Vertical Machining Center. Features: 4th and 5th axis drives, 20" x-axis, 16" y-axis, 15.5" z-axis, 15,000 RPM, BT30 taper, 15 hp motor. Includes coolant system, through spindle coolant, dual chip augers, and more.
| TABLE LENGTH | 26" | 660.4 mm |
| TABLE WIDTH | 15" | 381 mm |
| TABLE CAPACITY | 250 lb | 113.4 kg |
| X-AXIS TRAVEL | 20" | 508 mm |
| Y-AXIS TRAVEL | 16" | 406.4 mm |
| Z-AXIS TRAVEL | 15.5" | 393.7 mm |
| SPINDLE SPEED | 15,000 RPM | 15,000 RPM |
| SPINDLE MOTOR | 15 hp | 11.2 kW |
| SPINDLE TAPER | BT 30 | BT 30 |
| TOOL CAPACITY (ATC) | 20 | 20 |
| RAPID TRAVERSE - X AXIS | 2,400 in/min. | 61 m/min. |
| RAPID TRAVERSE - Z-AXIS | 2,400 in/min. | 61 m/min. |
| CUTTING FEEDRATE | 1200 ipm | |
| ROTARY OR TRUNNION | Yes | Yes |
| APPROX MACHINE DIMENSIONS | 68"W x 124"L W/COOLANT TANK X 103" H | 68"W x 124"L W/COOLANT TANK X 103" H |

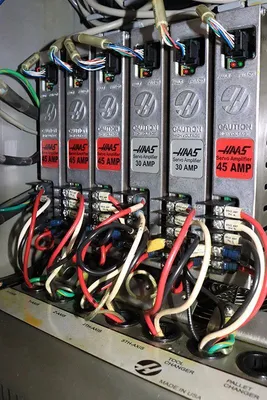

HAAS 4TH AND 5TH AXIS DRIVE CARDS
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
** PROBE TOOL AND TOUCH SETTER REQUIRED (NOT INCLUDED)
SIDE-MOUNT TOOL CHANGER, 20 POSITION
15,000 RPM SPINDLE
THROUGH SPINDLE COOLANT
FILTERMIST MIST COLLECTOR
USB PORT
COOLANT SYSTEM
CHIP AUGER, DUAL SYSTEM FOR REAR EXIT
ROTATION & SCALING, M-19 SPINDLE ORIENT.
INTUITIVE PROGRAMMING SYSTEM (IPS), QUICK CODE, DNC, ADVANCED TOOL MANAGEMENT
RIGID TAPPING
MACROS

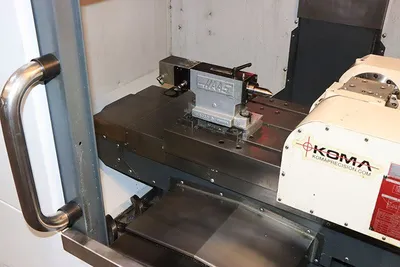

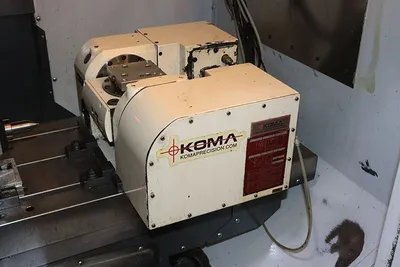

* KOMA MODEL: TN101 TRUNNION TABLE AS SEEN INSTALLED, -- TABLE IS NOT FULLY OPERATIONAL
*** TILTING AXES IS WORKING, PLATEN ROTATION IS NOT WORKING ***
** AVAILABLE FOR IMMEDIATE PURCHASE & REMOVAL
REPLACEMENT COSTS FOR ABOVE EQUIPPED MACHINE IF PURCHASED NEW TODAY: $160,000
AVAILABLE FROM SAME SHOP:
* (2) DUAL PALLET DT-1, WITH ROTARY TABLES
