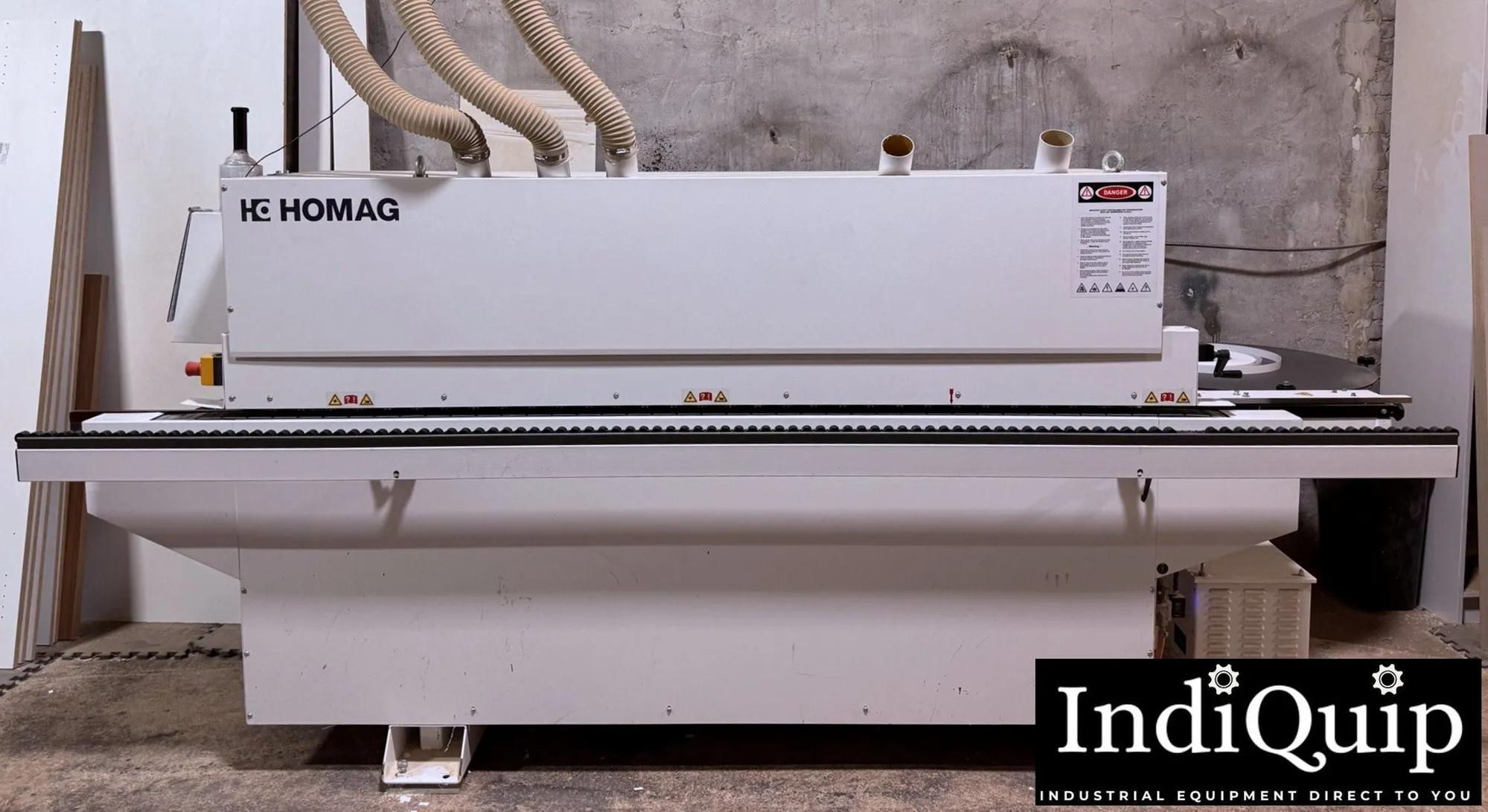

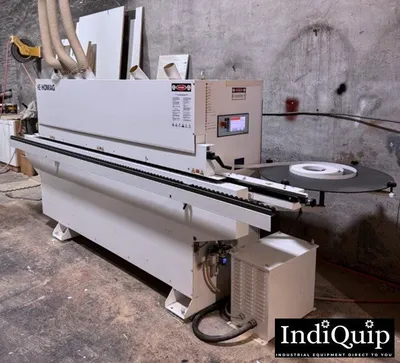

USED 2020 HOMAG EDGETEC S-200

2020 Homag EDGETEQ S-200 (Optimat KDN 110) single-sided edgebander with easyTouch control, automatic coil feeding, 3 mm PVC capability, precision trimming units, and hot-melt glue system with energy-saving temperature management.

Workpiece Capacity
Feed speed: 26 ft/min (8 m/min)
Maximum workpiece thickness: 1.57″ (40 mm)
Automatic height adjustment via top pressure beam across all stations
Digital height indicator for pressure beam and infeed fence adjustment
Edgebanding Capability
Universal automatic magazine for strip and coil feeding
Large coil table (31.5″ / 800 mm diameter) for up to 3 mm PVC
Standard hot-melt granulate glue system
No lubrication required
Automatic glue temperature reduction after 15 minutes of inactivity
Full reheating in approx. 3 minutes
Pressure Zone
First pressure roller driven
Two (2) idle pressure rollers
Digital setting system for precise pressure adjustment
Trimming & Finishing Aggregates
Double-Motor End Trimming Unit
Mounted on linear guides for precision
Top & Bottom Fine Trimming Unit
DFC cutter heads with horizontally indexed carbide inserts
Combination radius / straight trimming
Three working positions:
Flush trimming
Trimming with overhang
Radius / bevel trimming (R = 3 mm)
Digital readouts included
OPEN SPACE for optional Quick-Change Profile Scraping Unit
Buffing Unit
Two (2) motors
Two (2) cloth buffing discs (approx. 5.9″ x 0.8″)
