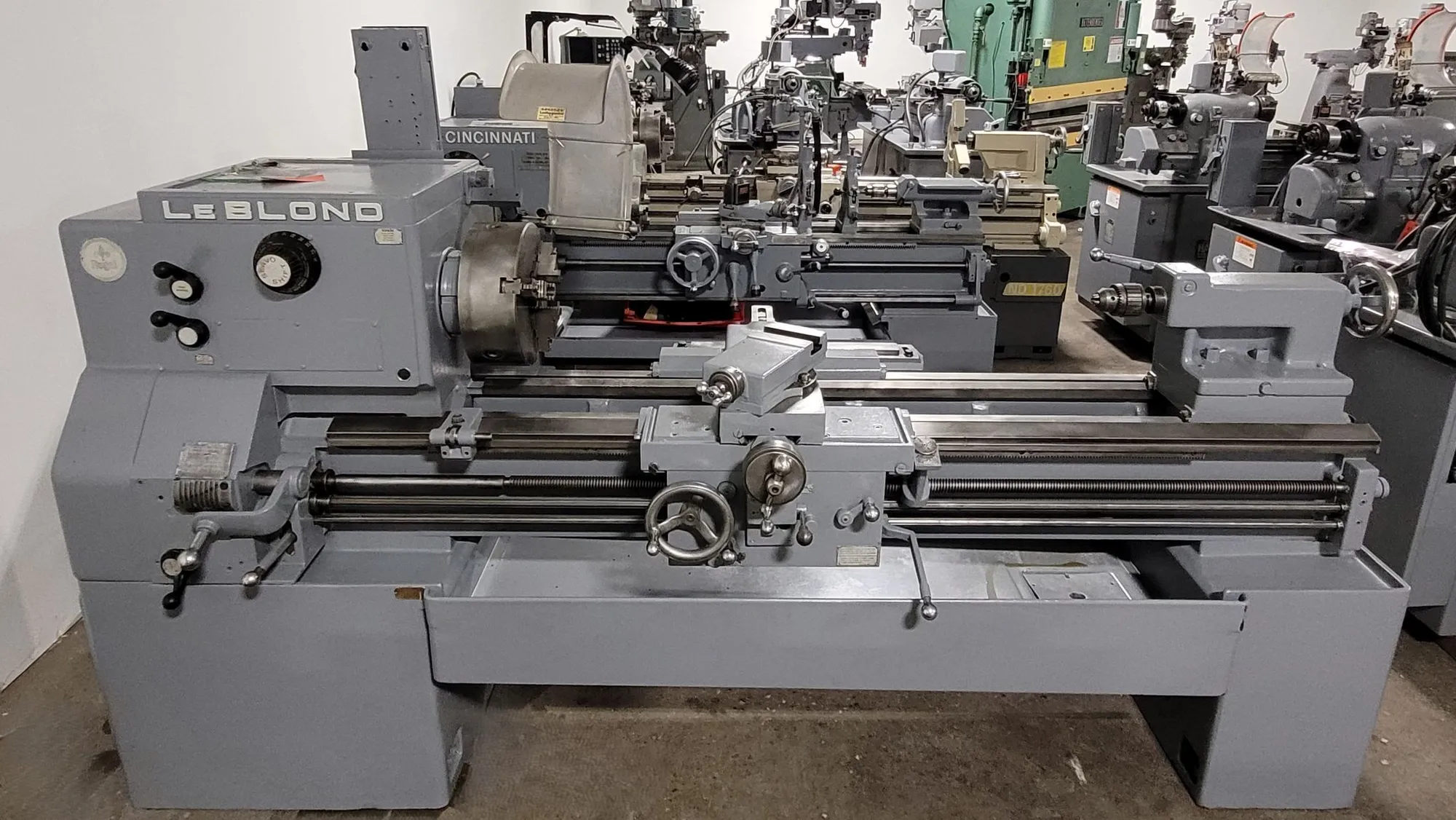

LEBLOND 19" x 54" Regal Servo Shift Lathe, used, features a 19" swing, 54" centers, 1.5" spindle bore, 5 hp, and 1500 RPM. Includes taper attachment, tailstock, and 12" 3-jaw Bison chuck. Ideal for precise machining tasks.
| Swing | 19" | 482.6 mm |
| Centers | 54" | 1,371.6 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Swing Over Cross Slide | 11" | 279.4 mm |
| Dimensions | 10' x 5' x 5' | 10' x 5' x 5' |
| Weight | 3400 | 3400 |
20" x 54" LeBlond Regal Servo Shift Engine Lathe w/Taper
Swing Over Bed: ~19" - 20"
Swing Over Cross Slide: ~13"
Distance Between Centers: 54"
Spindle Bore: 1.75" to 3" (varies)
Spindle Speeds: 12 speeds, 40-1600 RPM
Motor: 7.5 HP
Feeds: 48 (e.g., 0.0023 to 0.132 IPR)
Threads: 48 (e.g., 2 to 112 TPI)
Taper Attachment
Tailstock
12" 3 Jaw Bison Chuck
Wired 480V 3 phase
10' x 5' x 5'
Weight: Approx. 3400lbs
