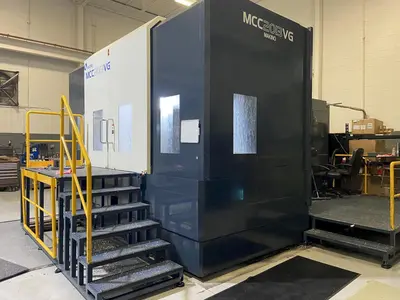

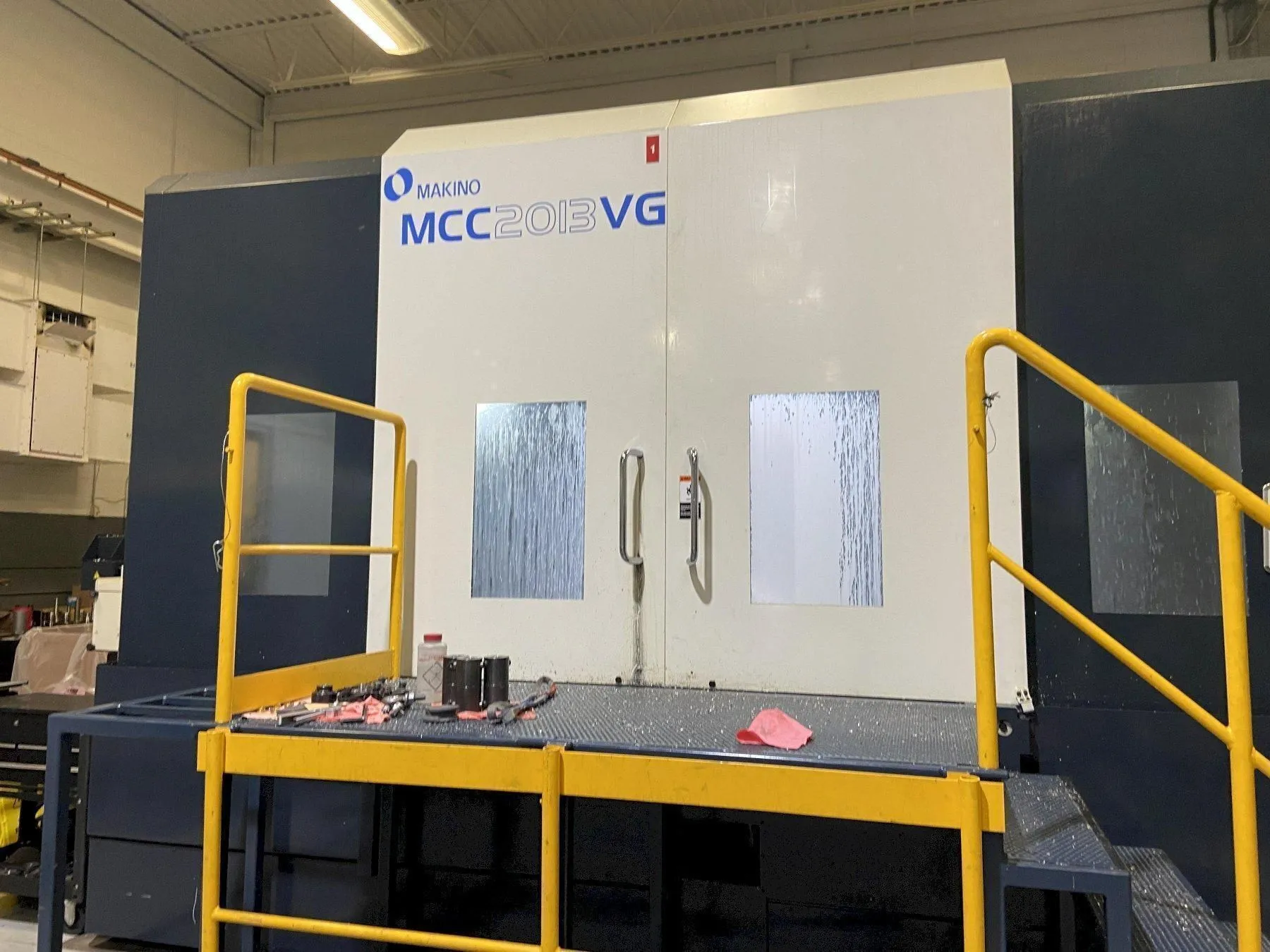

2015 Makino MCC2013VG 5-Axis CNC Horizontal Machining Center available. Features include Professional 5 CNC Control, Travels (X/Y/Z) 78.7"/51.2"/51.2", A Axis Spindle Tilt of +/-30°, B Axis Indexing 0.00001°, 12,000 RPM spindle speed, HSK-A100, and a 120 Station ATC capacity.
| CNC Control | Professional 5 | Professional 5 |
| # Axis | 5 | 5 |
| Pallet-L | 59" | 1,498.6 mm |
| Pallet-W | 47.2" | 1,198.9 mm |
| Max Pallet Load | 22,046 lbs | 22,046 lbs |
| Pallet Indexing (B-axis) | 0.0001° | 0.0001° |
| X-axis Travel | 78.7" | 1,999 mm |
| Y-axis Travel | 51.2" | 1,300.5 mm |
| Z-axis Travel | 51.2" | 1,300.5 mm |
| A-axis Travel | -30° to +30° | -30° to +30° |
| Rapid Traverse Rate (X/Y/Z) | 787 ipm | 787 ipm |

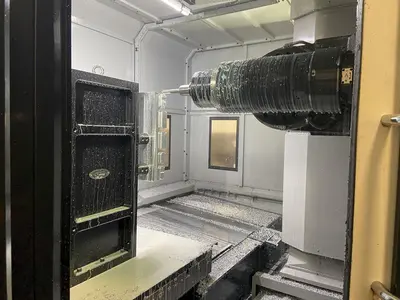

| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | HSK-A100 | HSK-A100 |
| Spindle Motor | 40 hp | 29.8 kW |

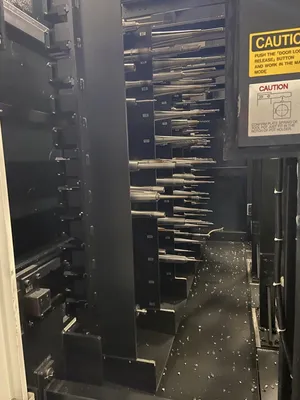

| # ATC | 120 | 120 |
| Coolant Thru Spindle | Yes | Yes |
| Machine Weight | 62,000 lbs | 62,000 lbs |
| Weight | 999 | 999 |

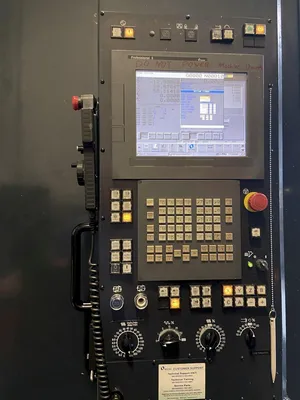

- Professional 5 CNC Control (Fanuc)

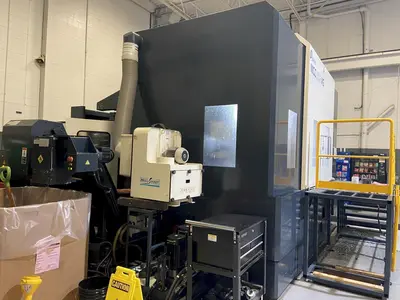

- Chip Conveyor
- Coolant Tank & Pump
- Mist Collector
- Coolant Filtration Unit
- Data Center Storage (360MB)
- Helical Interpolation (G02, G03)
- Automatic Aur Blower
- Chip Blaster Model JV-40
- Coolant Thru Spindle
- Automatic Non-Contact Tool Measuring
